Preliminary Procedures
- Remove the air cleaner upper housing. Refer to Air Cleaner Element Replacement
.
- Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement
.
- Remove the front bumper fascia air deflector. Refer to Front Bumper Fascia Air Deflector Replacement
.
- Drain the cooling system. Refer to Cooling System Draining and Filling .
|

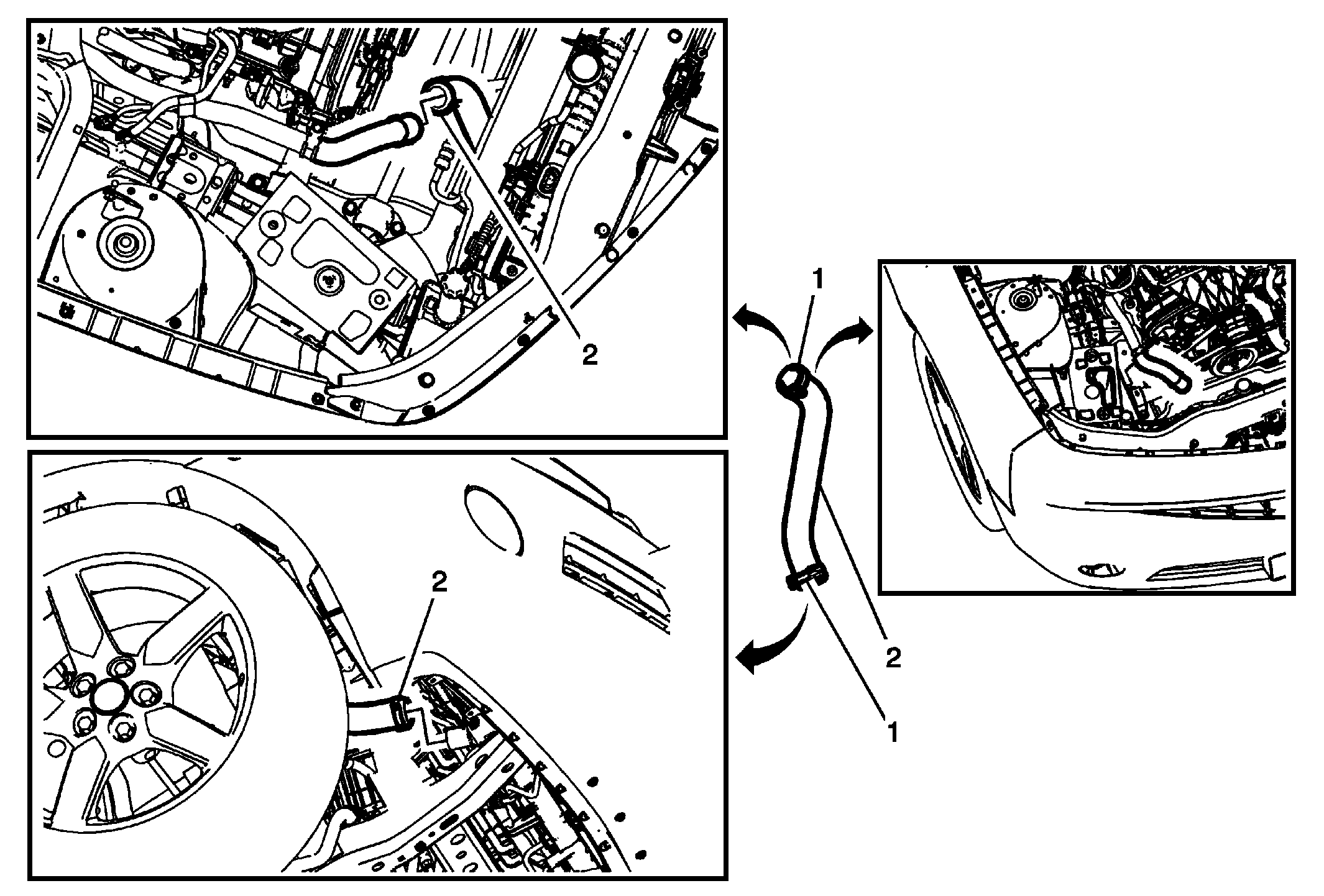

| 1 |
Radiator Outlet Hose Clamp (Qty:2)
Procedure
Reposition the radiator outlet hose clamps using the BO-38185
hose clamp pliers.
Special Tools
BO-38185
Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools
. |
| 2 |
Radiator Outlet Hose Procedure
- Remove the radiator outlet hose from the radiator.
- Remove the radiator outlet hose from the water pump housing.
- Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling .
- Inspect the cooling system for leaks. Refer to Cooling System Leak Testing .
|
