Front Bumper Fascia Air Deflector Replacement

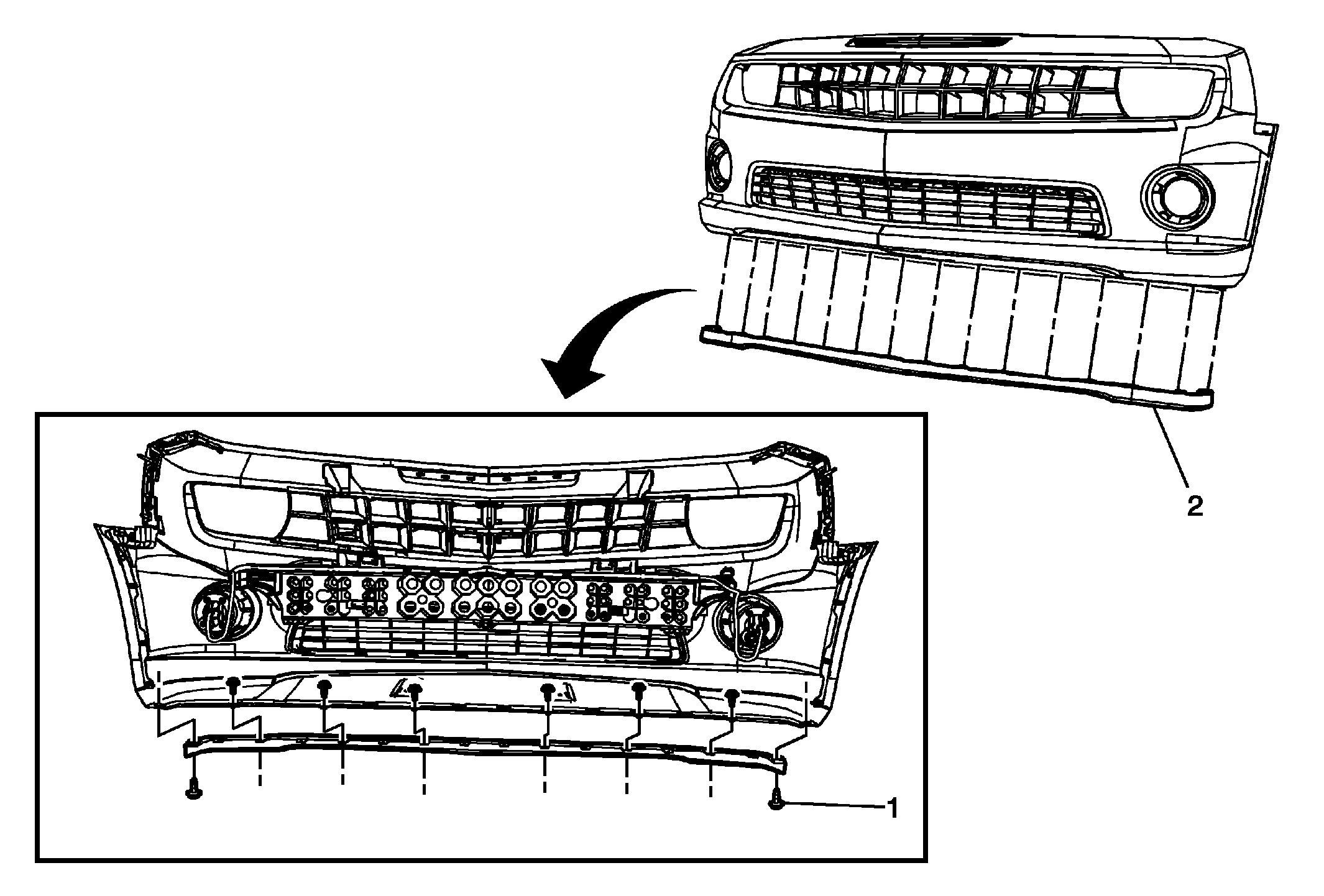

Fig 1: Front Bumper Fascia Air Deflector And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Bumper Fascia Air Deflector Bolt (Qty:16) CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Front Bumper Fascia Air Deflector
