Windshield Wiper Transmission Replacement

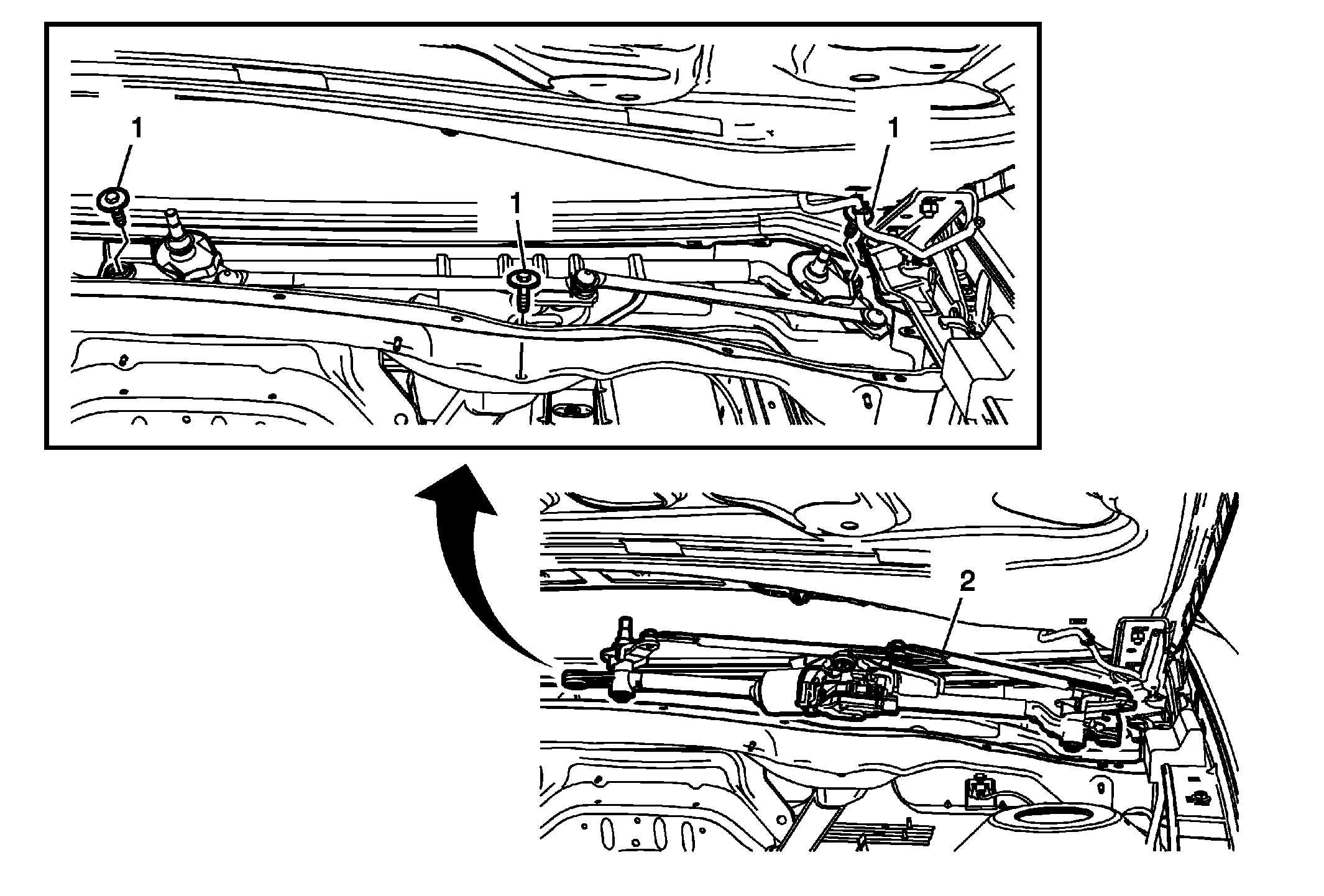

Fig 1: Windshield Wiper Transmission And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air inlet grille panel assembly. Refer to Air Inlet Grille Panel Replacement .
1	Windshield Wiper Transmission Bolt (Qty:3) CAUTION: Refer to Fastener Caution . Tighten 5.5 N.m (49 lb in)
2	Windshield Wiper Transmission Procedure Lift the front edge of the wiper transmission out from the plenum. Disconnect the wiper motor electrical connector. Remove the wiper transmission assembly from the vehicle. Remove the windshield wiper motor from the transmission. Refer to Windshield Wiper Motor Replacement .

Callout

Component Name

Preliminary Procedure
Remove the air inlet grille panel assembly. Refer to Air Inlet Grille Panel Replacement .

Windshield Wiper Transmission Bolt (Qty:3)

CAUTION:

Tighten
5.5 N.m (49 lb in)

Windshield Wiper Transmission

Procedure

Lift the front edge of the wiper transmission out from the plenum.
Disconnect the wiper motor electrical connector.
Remove the wiper transmission assembly from the vehicle.
Remove the windshield wiper motor from the transmission. Refer to Windshield Wiper Motor Replacement .
