Ignition And Start Switch Housing Replacement (Buick)

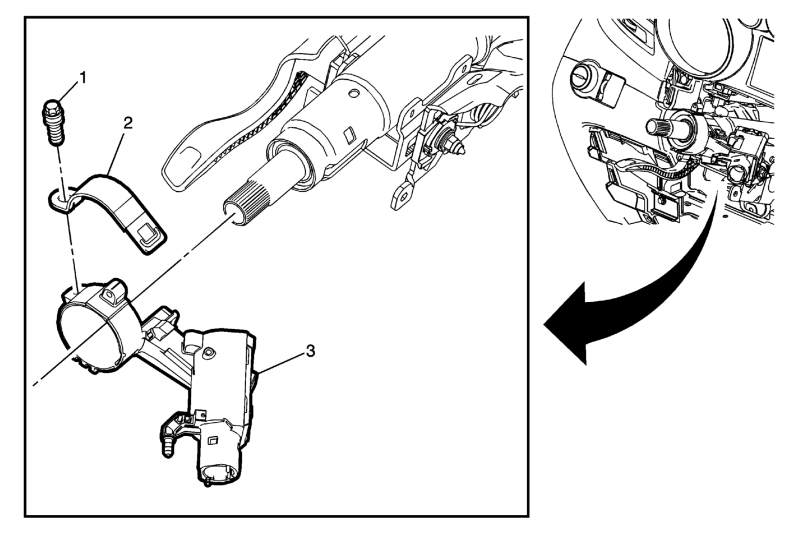

Fig 1: Ignition And Start Switch Housing
GM2788777Courtesy of GENERAL MOTORS COMPANY
Ignition and Start Switch Housing Replacement (Buick)

Callout Component Name
Preliminary Procedure
Remove the turn signal switch bracket. Refer to Turn Signal Switch Bracket Replacement (Buick) .
1 Ignition and Start Switch Housing Bolt
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Discard the old ignition and start switch housing bolt.
  2. Install the NEW ignition and start switch housing bolt and tighten until the bolt head breaks off.
2 Ignition and Start Switch Housing Strap
3 Ignition and Start Switch Housing

Procedure

  1. Disconnect any electrical connections.
  2. Transfer any parts as needed.
