Turn Signal Switch Bracket Replacement (Buick)

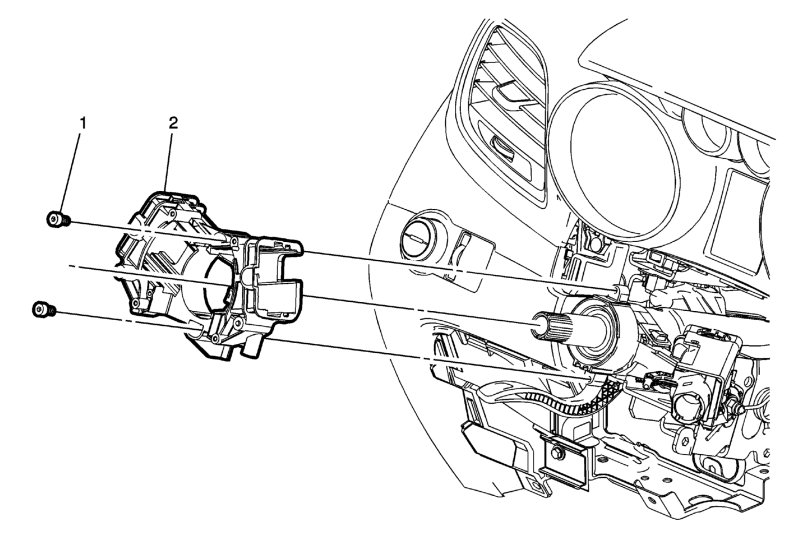

Fig 1: Turn Signal Switch Bracket

GM2787025

Courtesy of GENERAL MOTORS COMPANY

Turn Signal Switch Bracket Replacement (Buick)

Callout

Component Name

Preliminary Procedure

Remove the steering wheel airbag coil. Refer to Steering Wheel Airbag Coil Replacement (Buick) .
Remove the turn signal switch. Refer to Turn Signal Switch Replacement (Buick) .
Remove the windshield wiper and washer switch. Refer to Windshield Wiper and Washer Switch Replacement (Buick) .
Remove the theft deterrent module from the turn signal switch bracket. Refer to Theft Deterrent Module Replacement (Buick) .

1

Turn Signal Switch Bracket Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

2

Turn Signal Switch Bracket
