Driver Or Passenger Seat Back Cushion Heater Replacement

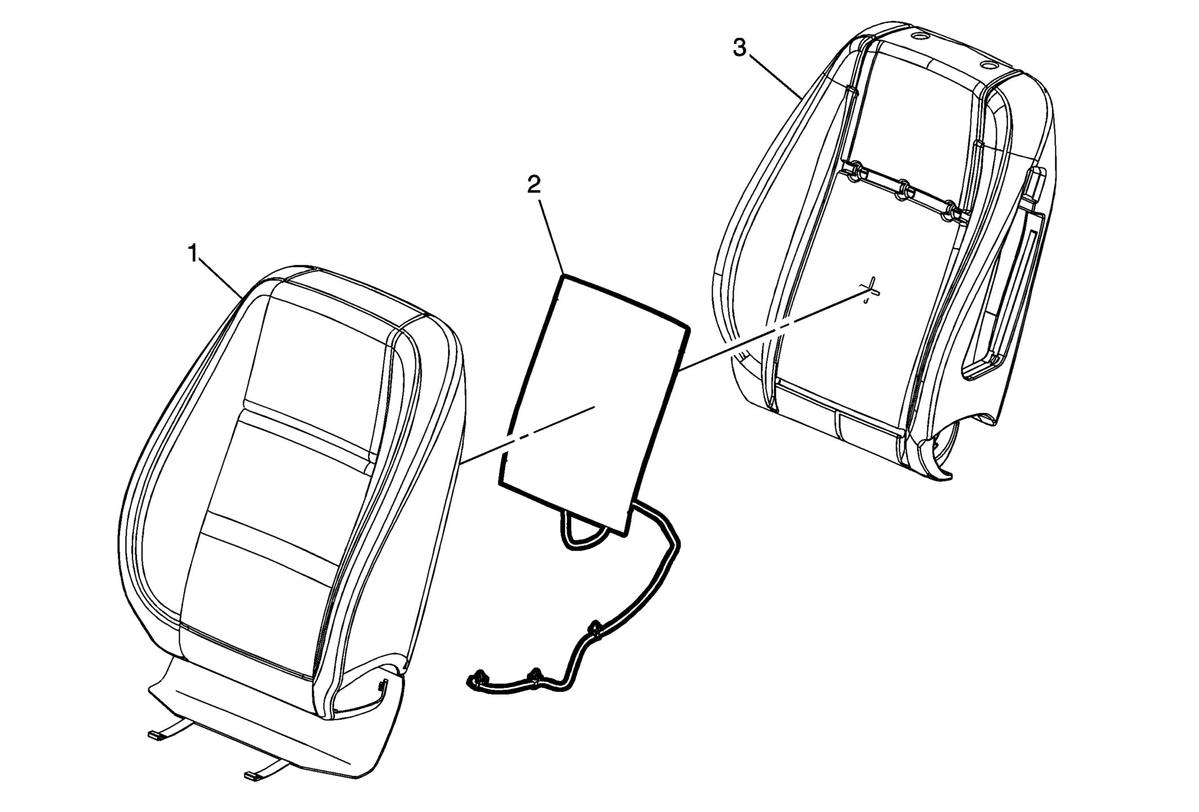

Fig 1: Driver Or Passenger Seat Back Cushion Heater
GM2772764Courtesy of GENERAL MOTORS COMPANY
Driver or Passenger Seat Back Cushion Heater Replacement

Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedure

  1. Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
  2. Remove the driver or passenger seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cover and Pad Replacement .
1 Driver or Passenger Seat Back Cushion Cover
Procedure
Separate the seat back cushion cover from the seat cushion pad.
2 Driver or Passenger Seat Back Cushion Heater

Procedure

  1. Disconnect the electrical connector.
  2. Heater is a integral part of the seat back cushion pad. The pad and heater should be replaced as a assembly.
3 Driver or Passenger Seat Back Cushion Pad
