Rear Seat Head Restraint Guide Replacement
Rear Seat Head Restraint Guide Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement |
|

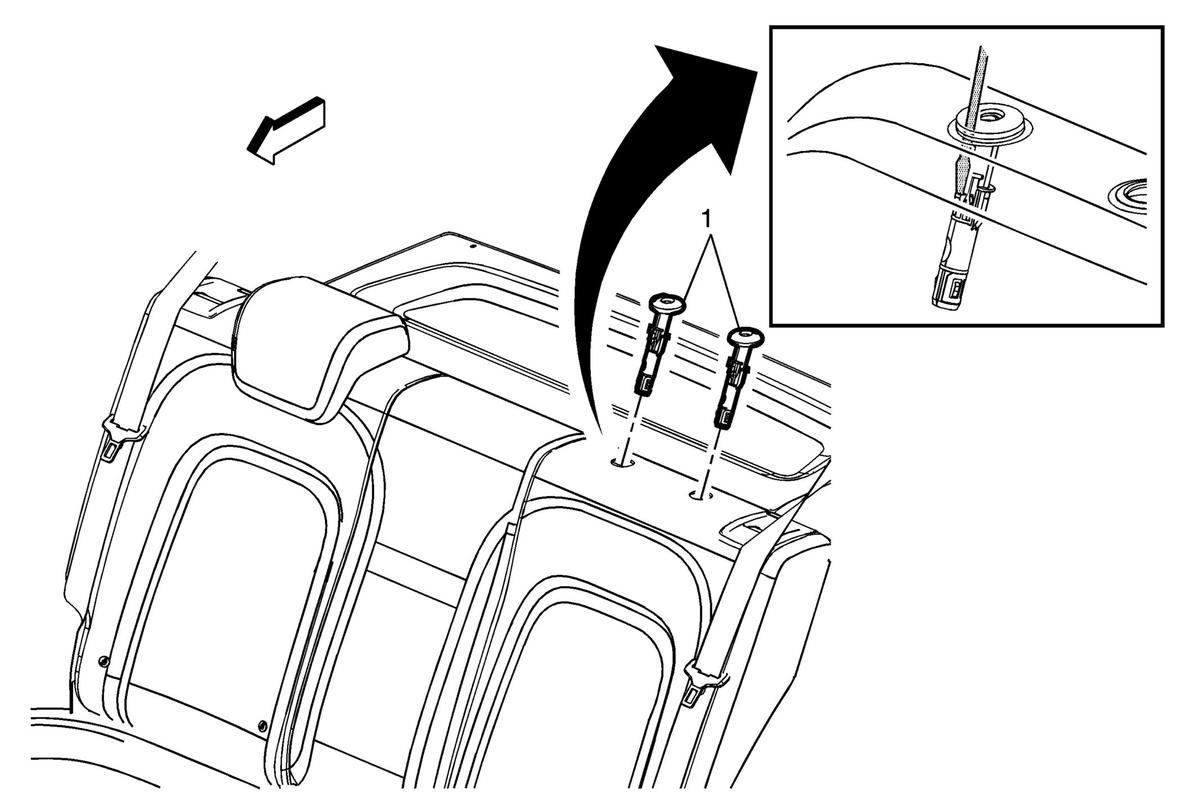

| 1 | Rear Seat Head Restraint Guide Procedure Using a suitable flat-bladed tool, slide the tool between the cushion and the guide until you find the slot on the outboard side of the guide. Push inward on the guide slot tab, while pulling upward to remove the guide from the seat back frame. |
