Rear Seat Head Restraint Replacement

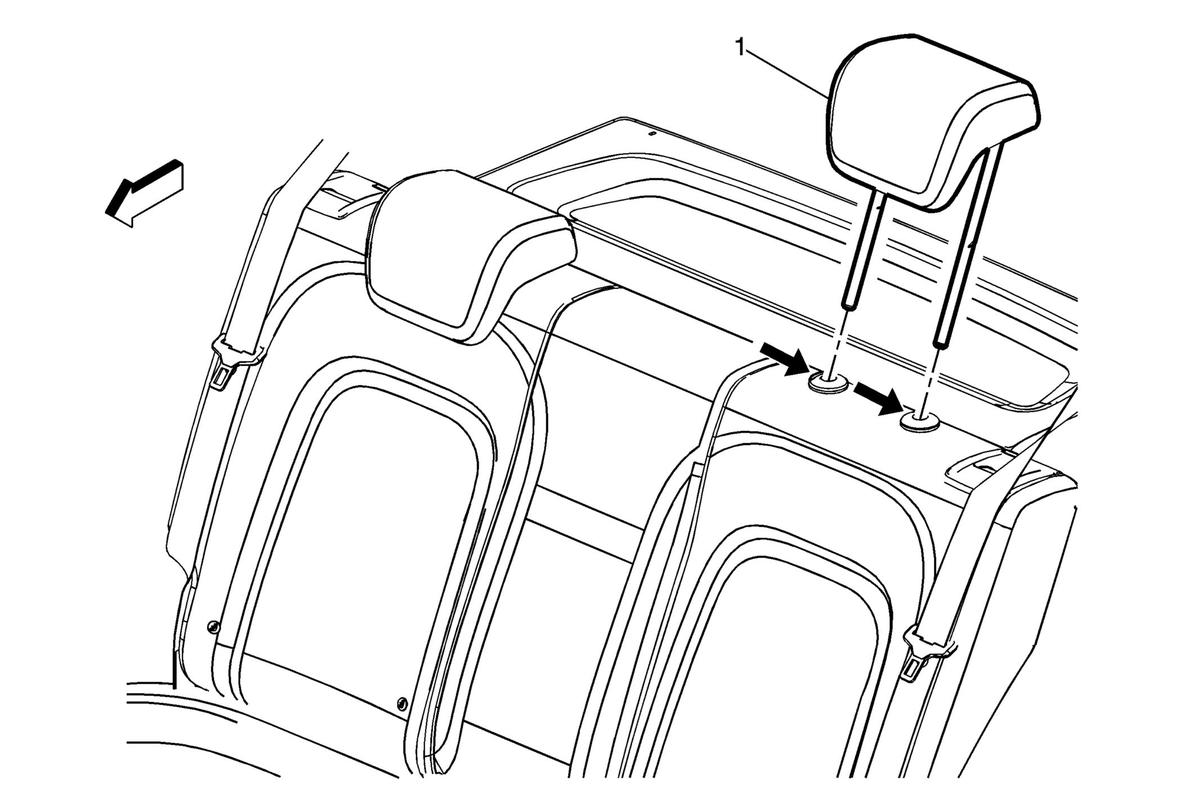

Fig 1: Rear Seat Head Restraint
GM2509448Courtesy of GENERAL MOTORS COMPANY
Rear Seat Head Restraint Replacement

Callout Component Name
1 Rear Seat Head Restraint

Preliminary Procedures

  1. Depress the large button on the head restraint guide and raise the head restraint to the full up position.
  2. Depress the small button on the opposite head restraint guide and pull upward to remove from the seat.
