Front Seat Riser Finish Cover Replacement
Front Seat Riser Finish Cover Replacement

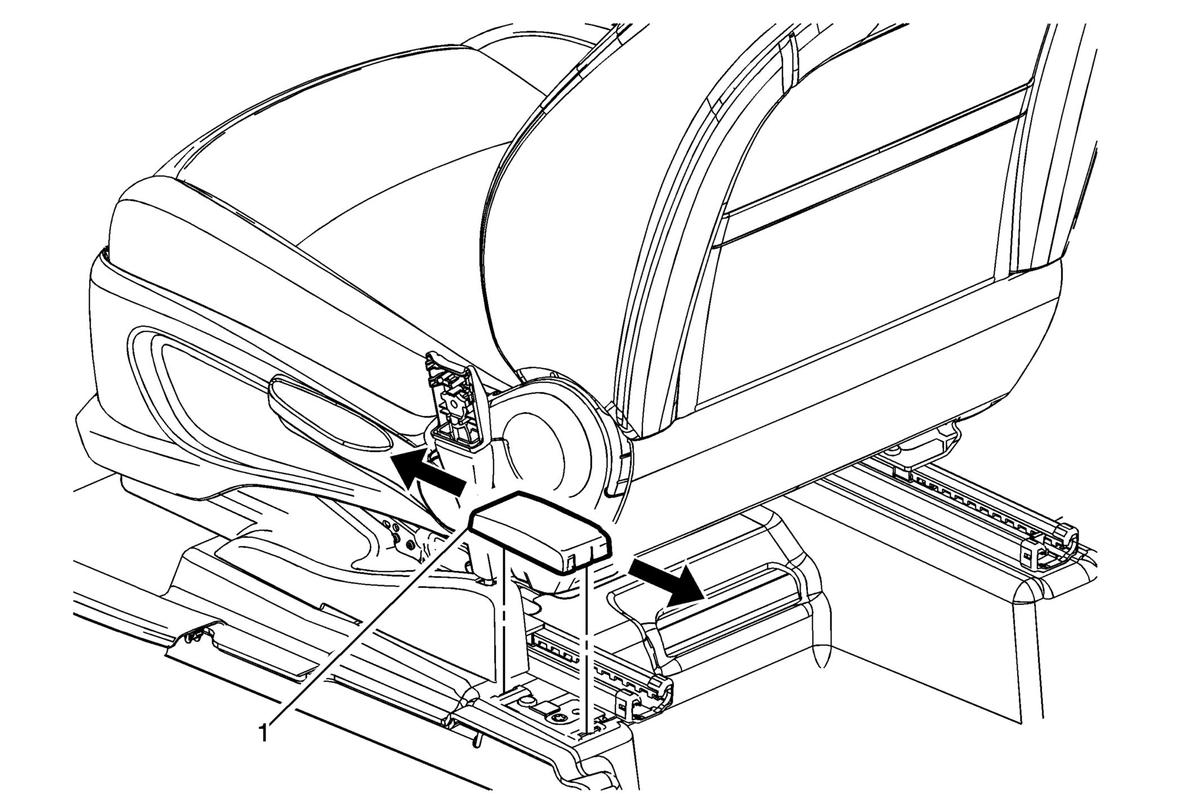

| Callout | Component Name |
|---|---|
| 1 | Front Seat Riser Finish Cover
CAUTION:
Do not twist the cover during removal. Twisting the cover may cause the component to break. Procedure Remove the finish cover by firmly grasping the front or rear of the cover and pulling the cover outward then upward to disengage it from the track. |
