Front Floor Console Trim Plate Replacement (Buick)
Front Floor Console Trim Plate Replacement (Buick)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the automatic or manual transmission control lever knob. Refer to Transmission Control Lever Knob Replacement or Transmission Control Lever Knob Replacement . |
|

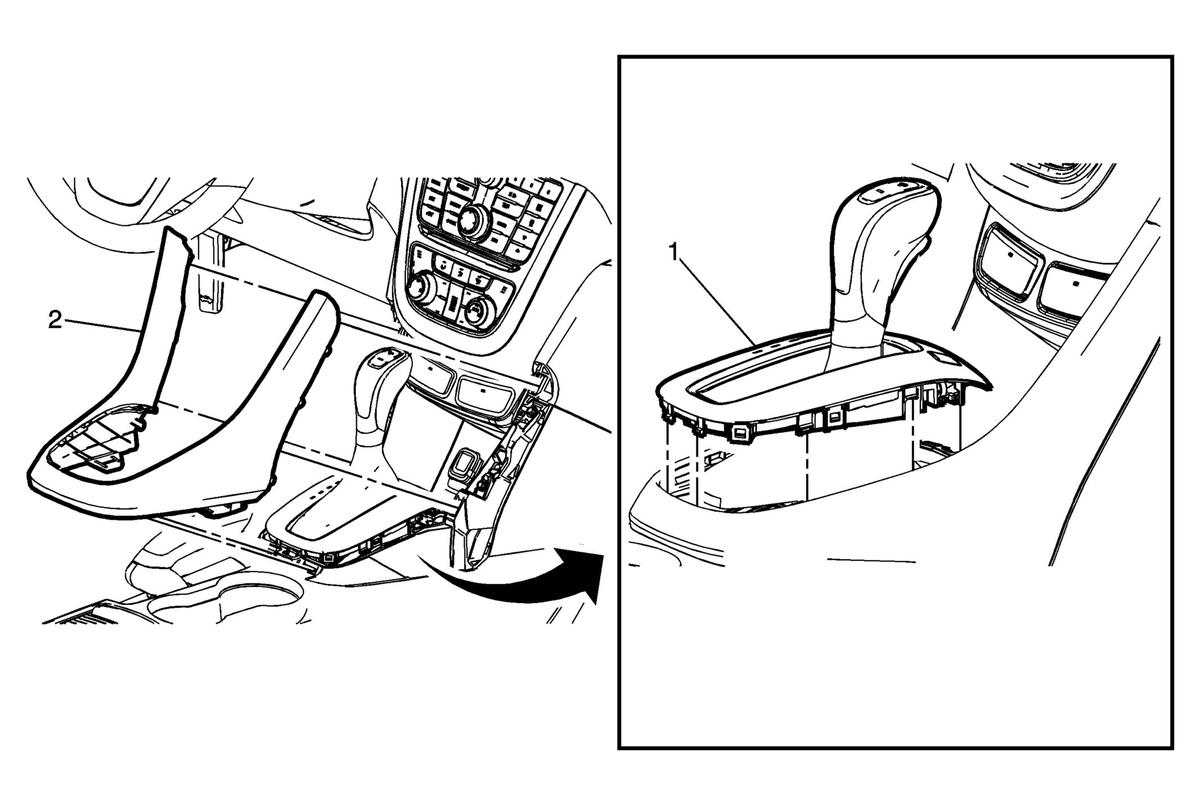

| 1 | Front Floor Console Trim Plate Procedure Use a flat bladed plastic trim tool to aid in the removal of the trim plate from the front floor console assembly. |
