Transmission Control Lever Knob Replacement
Transmission Control Lever Knob Replacement

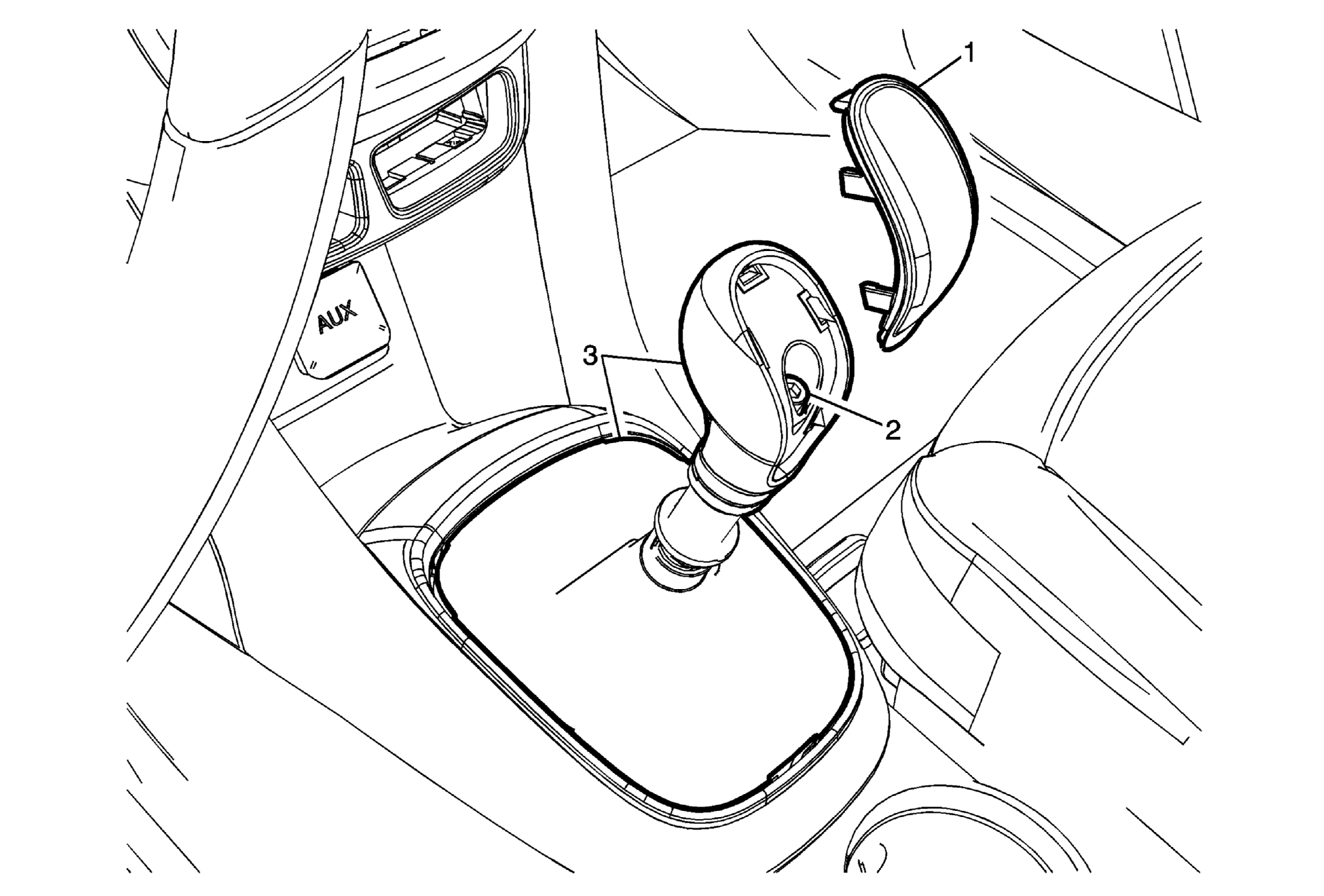

| Callout | Component Name |
|---|---|
| 1 | Shift Control Lever Knob Cover Procedure Using a flat-bladed tool, remove the shift knob cover. |
| 2 | Fastener
CAUTION:
Refer to Fastener Caution . Tighten 16 (12 lb ft) |
| 3 | Shift Control Lever Knob and Boot Assembly Procedure Using a flat-bladed tool, remove the boot retainer from the console. |
