Radiator Grille Opening Cover Replacement (Buick)

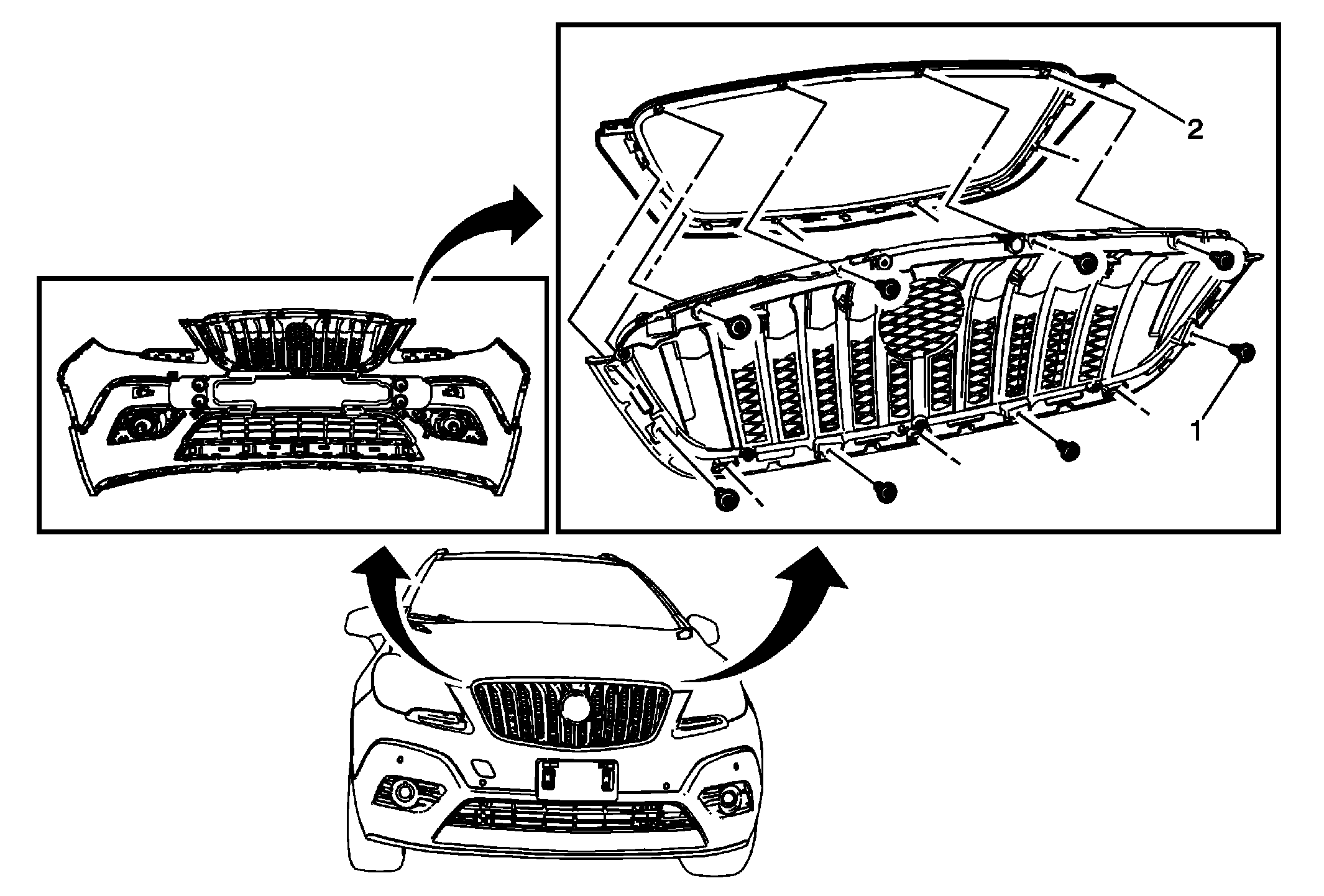

Fig 1: Radiator Grille Opening Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the radiator grille. Refer to. Front Grille Replacement (Chevrolet) , Front Grille Replacement (Buick)
1	Radiator Grille Opening Cover Screw (Qty 8) CAUTION: Refer to Fastener Caution .
2	Radiator Grille Opening Cover Procedure Place the radiator grille face down on a clean protected surface. Remove the eight radiator grille opening cover screws. Using a suitable trim tool, release the five locking tabs on the radiator grille opening cover and remove from the radiator grill. NOTE: Each individual tab on the radiator grille opening cover must be secure to each slot in the radiator grille prior to re-assemble of the radiator grill to the fascia.
