Steering Column Lower Trim Cover Replacement
Steering Column Lower Trim Cover Replacement

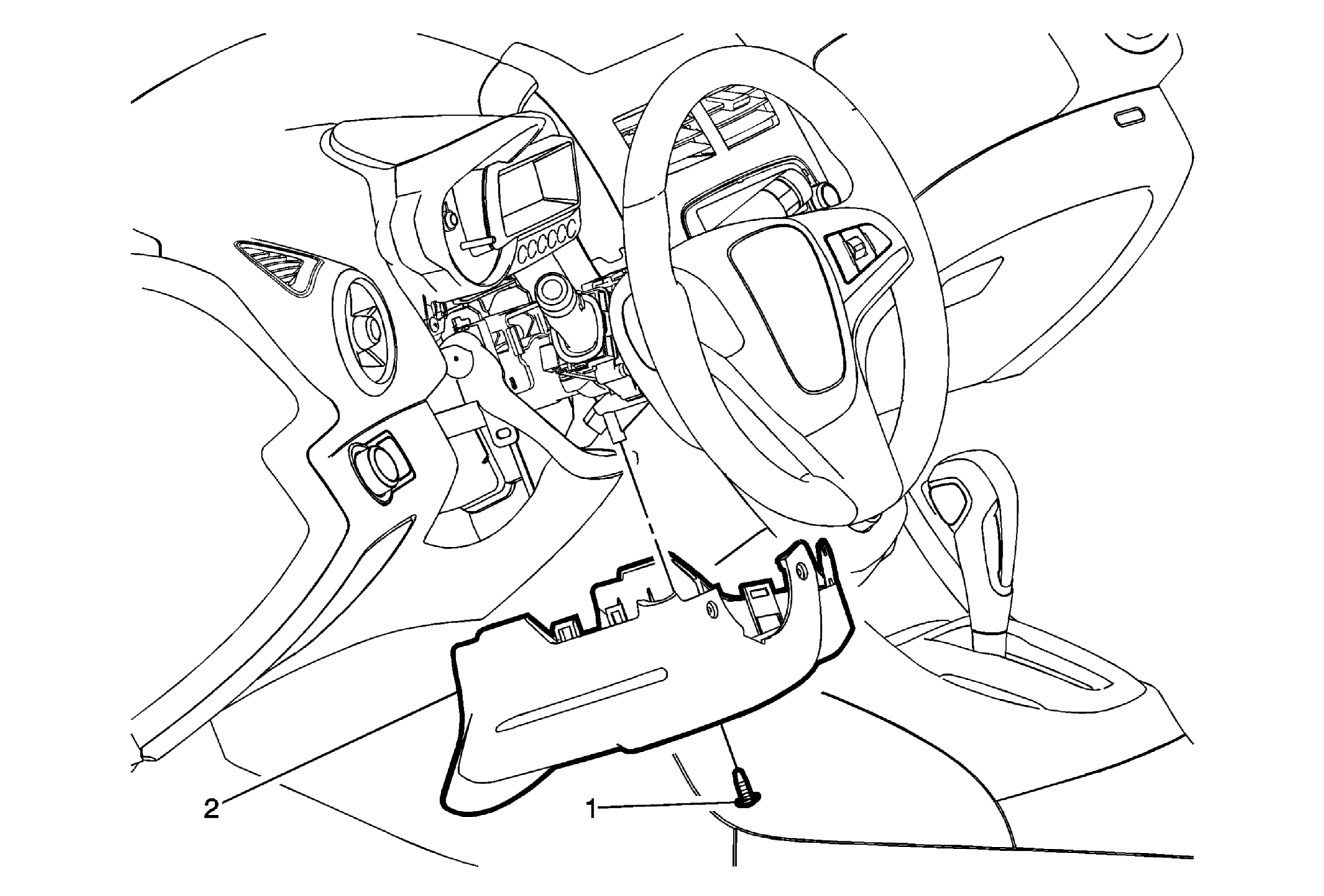

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement . |
|
| 1 | Instrument Panel Steering Column Lower Trim Cover Fastener
CAUTION:
Refer to Fastener Caution . |
| 2 | Instrument Panel Steering Column Lower Trim Cover Assembly |
