Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery tray. Refer to Battery Tray Replacement .
  2. Install the engine support fixture. Refer to Engine Support Fixture .

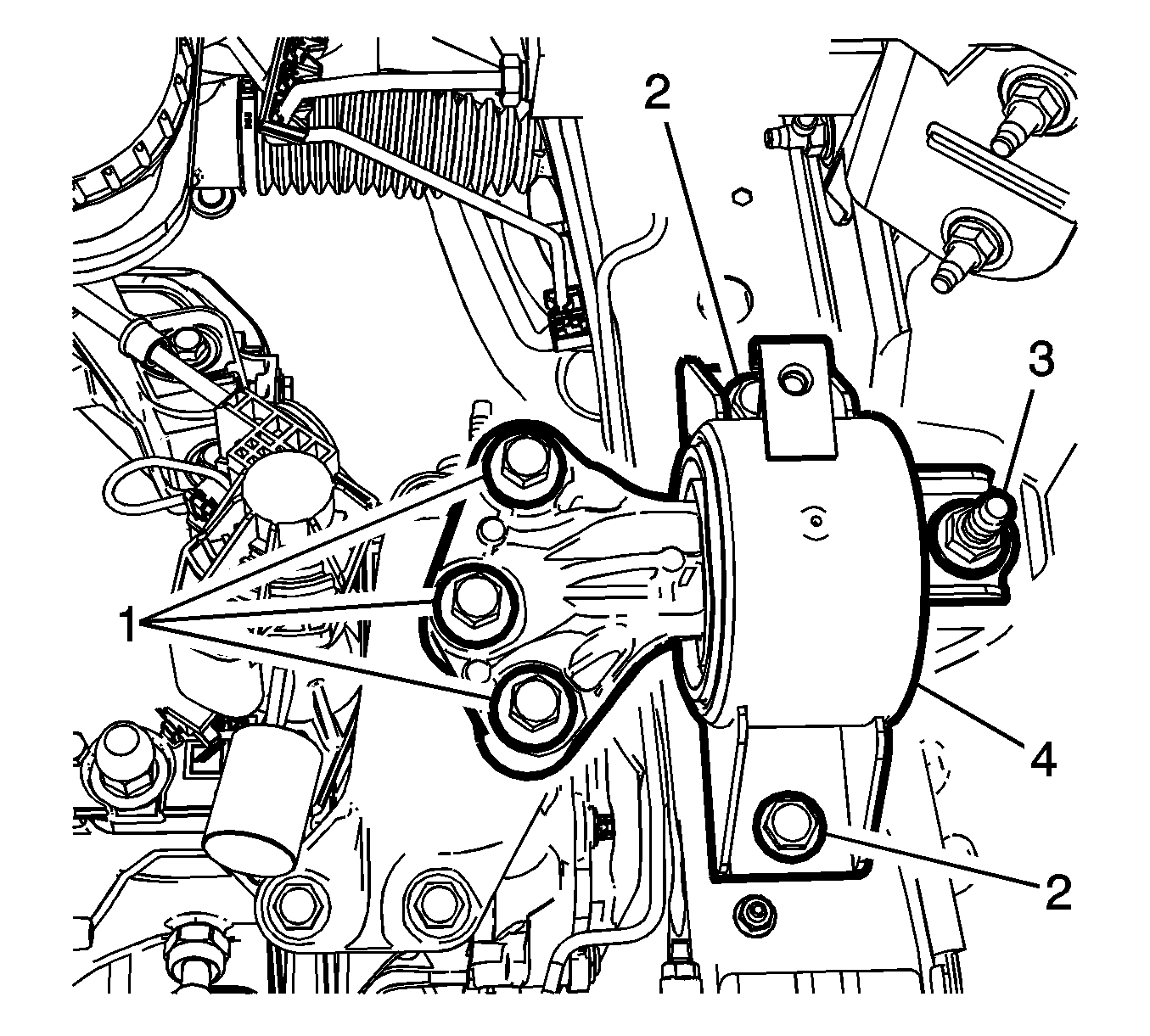

    3. Fig 1: Transmission Mount Components - Left Side
    GM2512886Courtesy of GENERAL MOTORS COMPANY
  3. Remove and DISCARD the left transmission mount to bracket bolts (1).
  4. Remove the left transmission mount to body bolts (2).
  5. Remove the left transmission mount to body nut (3).
  6. Remove the left transmission mount (4) from the vehicle.
