Engine Support Fixture

WARNING: This page is about a different variant/trim than selected.

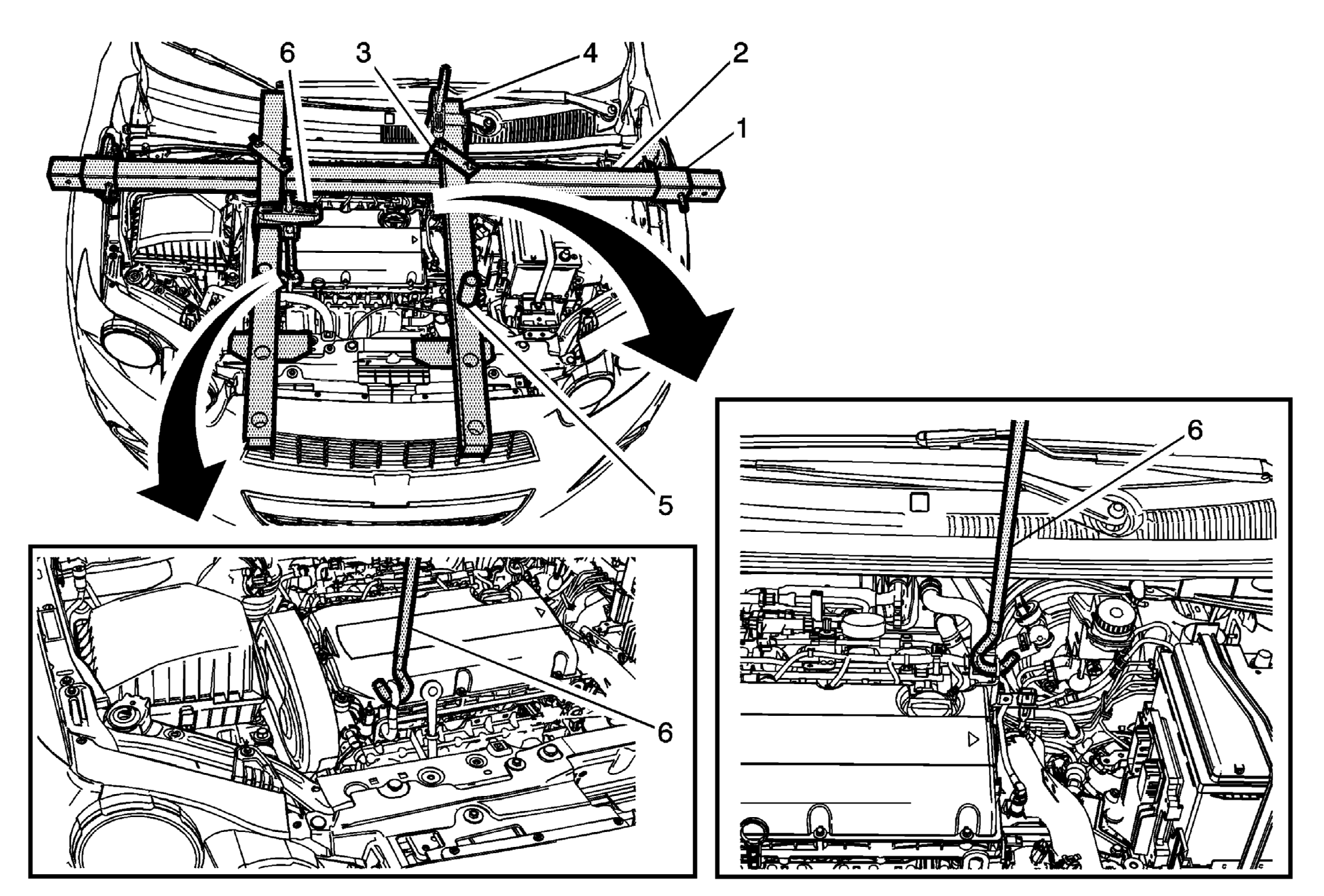

Fig 1: Engine Support Fixture

GM2673749

Courtesy of GENERAL MOTORS COMPANY

Engine Support Fixture

Callout	Component Name
Preliminary Procedure Remove the radiator opening upper cover. Refer to Front Opening Upper Cover Replacement . Special Tools EN-28467-300 Engine Support Fixture Adapter J-28467-518 Main Support Beam J-28467-1A Cross Bracket J-28467-5A Strut Tower Support Assembly J-28467-2A Radiator Tube Shelf Assembly J-36857 Engine Lift Bracket J-28467-8A Hook Assembly For equivalent regional tools, refer to Special Tools .
1	Engine Support Fixture Adapter Leg (Qty: 2) Procedure Install the bracket to fender frame. Do not install on top of fender lip.
2	Main Support Beam
3	Cross Bracket
4	Strut Tower Support Assembly Procedure Adjust the length of the strut tower support assembly.
5	Radiator Tube Shelf Assembly
6	Hook Assembly NOTE: If the engine is not equipped with engine lift bracket, install J-36857 in place. Procedure Use a grade 10.9 bolt to install the engine lift bracket.
