Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the floor console. Refer to Front Floor Console Replacement .
    2. Fig 1: Cable Adjustment Retainers
    GM2505111Courtesy of GENERAL MOTORS COMPANY
  2. Lift both cable adjustment retainers (1), one for each cable, to release the shift lever and selector lever cable.

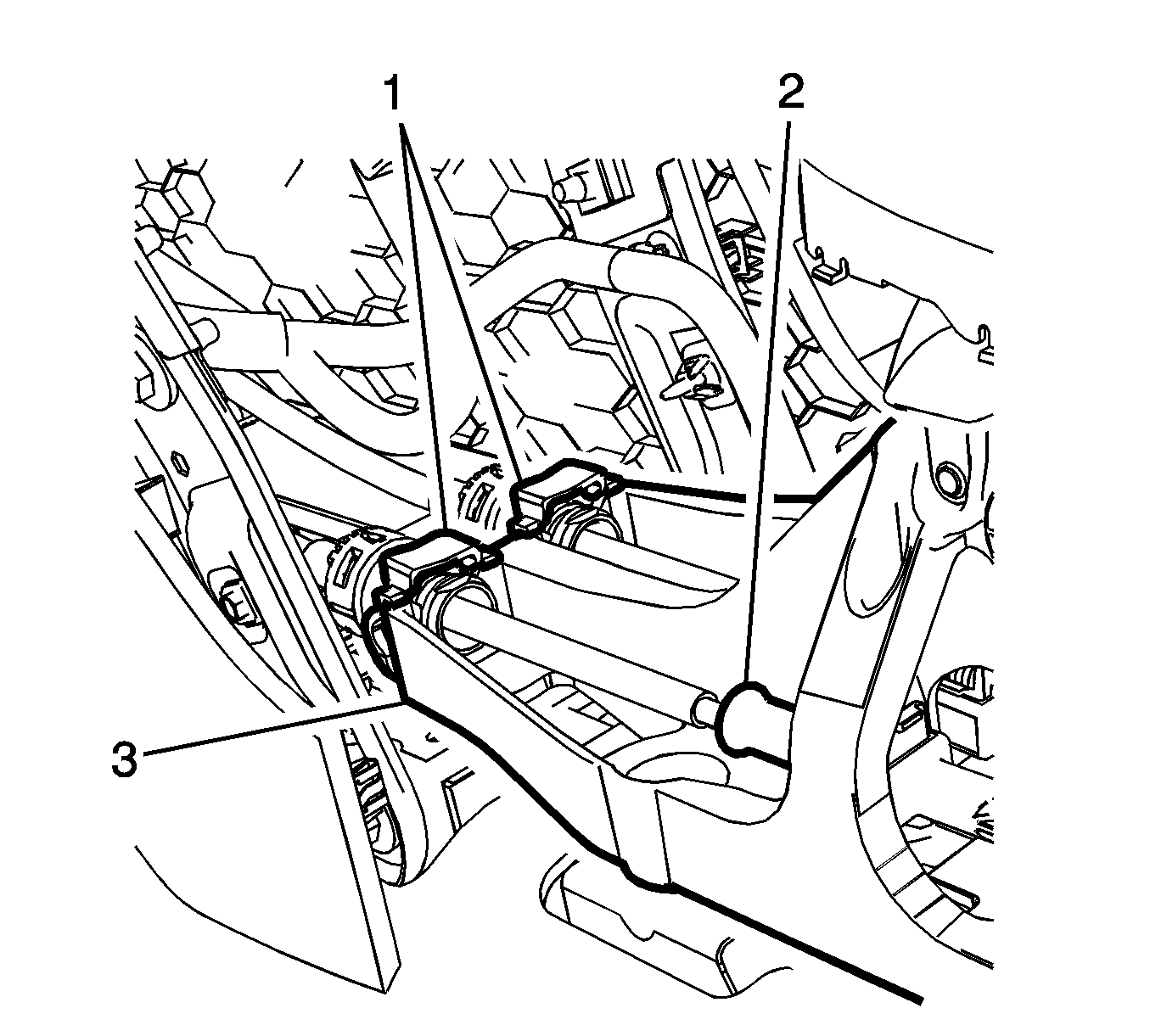

    3. Fig 2: Shift Lever & Selector Lever Cable Retainers & Transmission Control Assembly
    GM2504879Courtesy of GENERAL MOTORS COMPANY
  3. Pull the shift lever and selector lever cable retainers (1) from the transmission control assembly (3).
  4. Remove the shift lever and selector cable from the shift and selector control

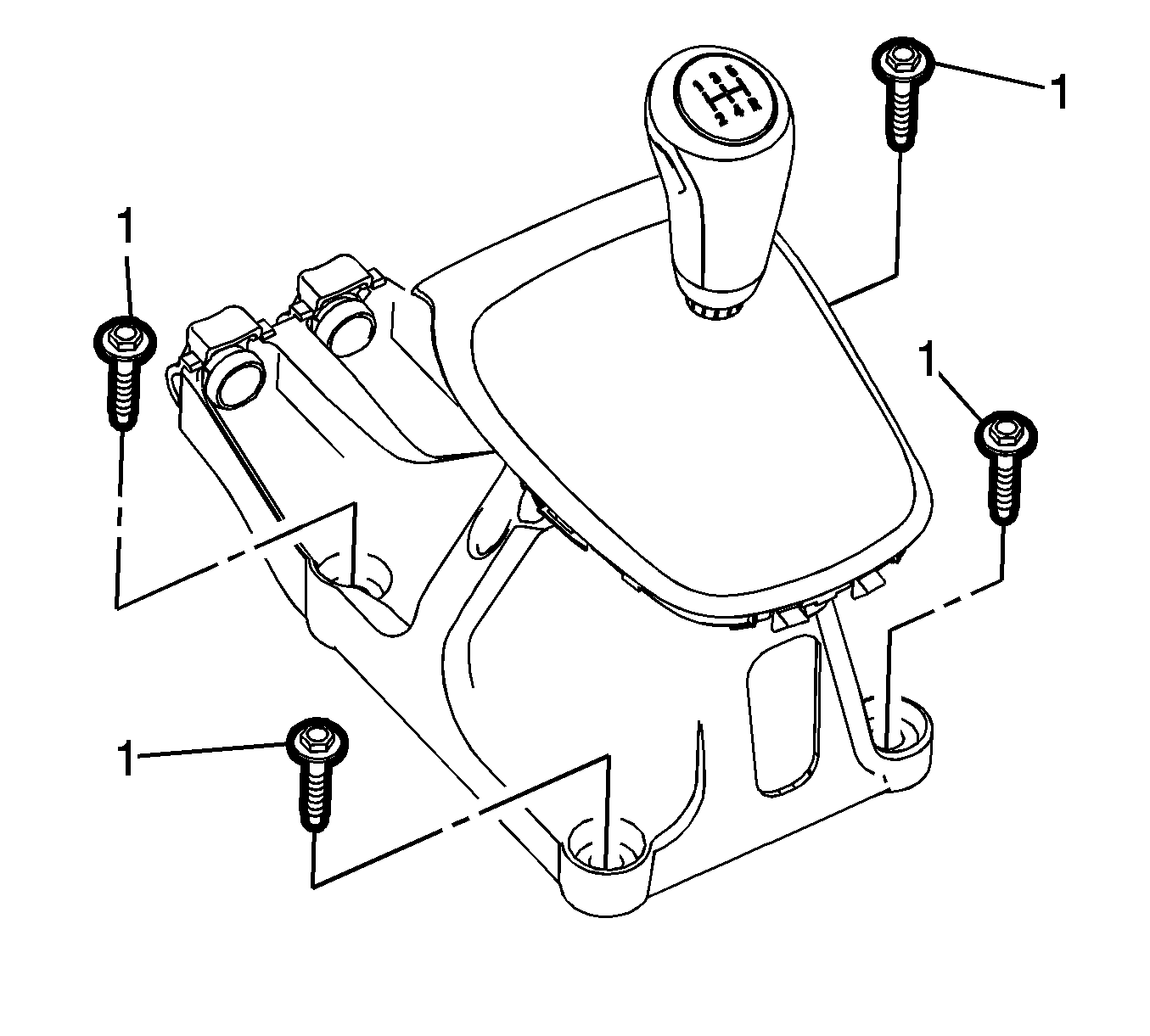

    5. Fig 3: Transmission Control Bolts
    GM2531689Courtesy of GENERAL MOTORS COMPANY
  5. Remove the 4 transmission control bolts (1).
  6. Remove the transmission control from the vehicle.
