Transmission Control Lever Boot Replacement
WARNING: This page is about a different variant/trim than selected.
Transmission Control Lever Boot Replacement

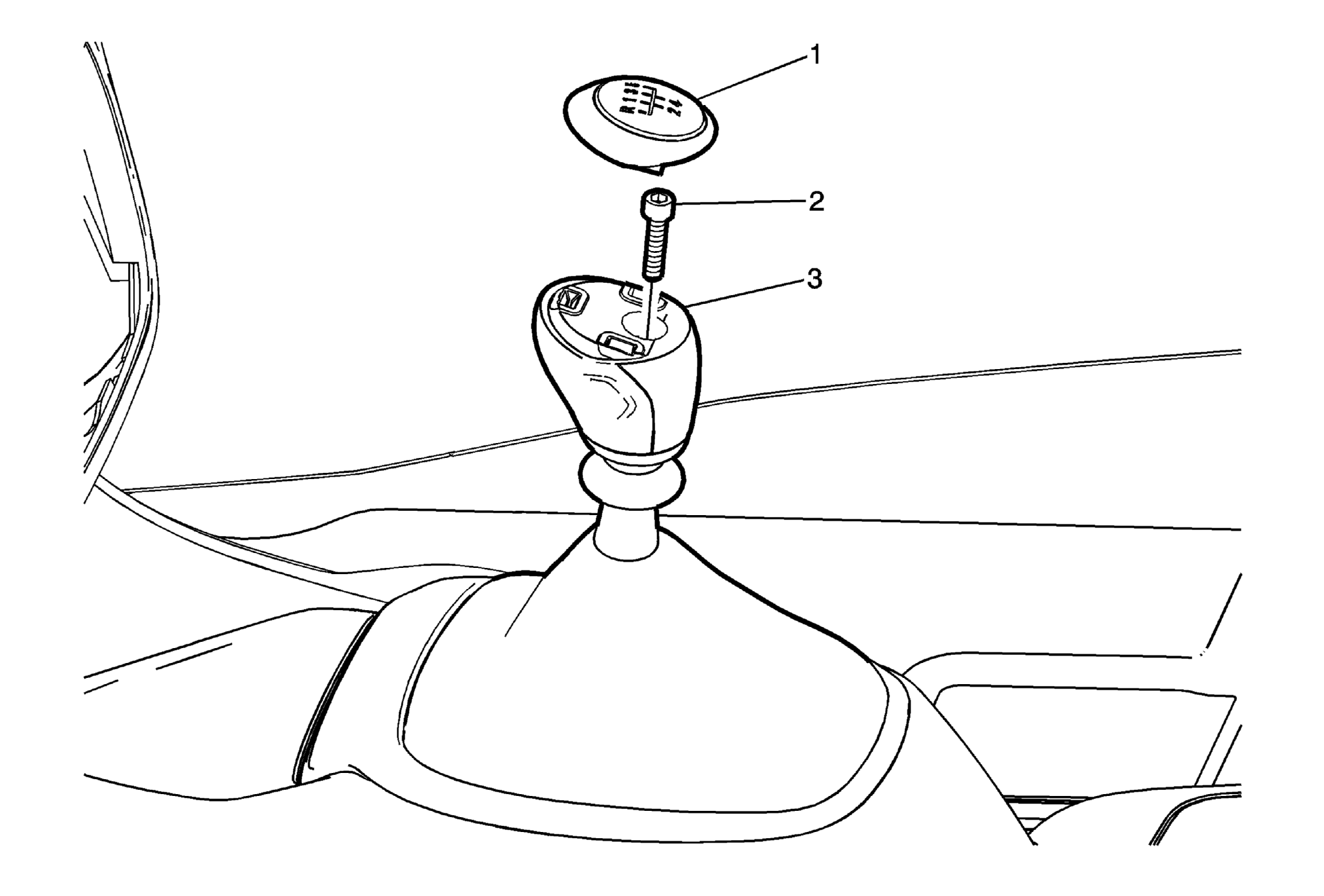

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement . |
|
| 1 | Shift Control Lever Knob Cover Procedure Using a flat-bladed tool, remove the shift knob cover. |
| 2 | Fastener |
| 3 | Shift Control Lever Knob and Boot Assembly |
