Installation Procedure

WARNING: This page is about a different variant/trim than selected.

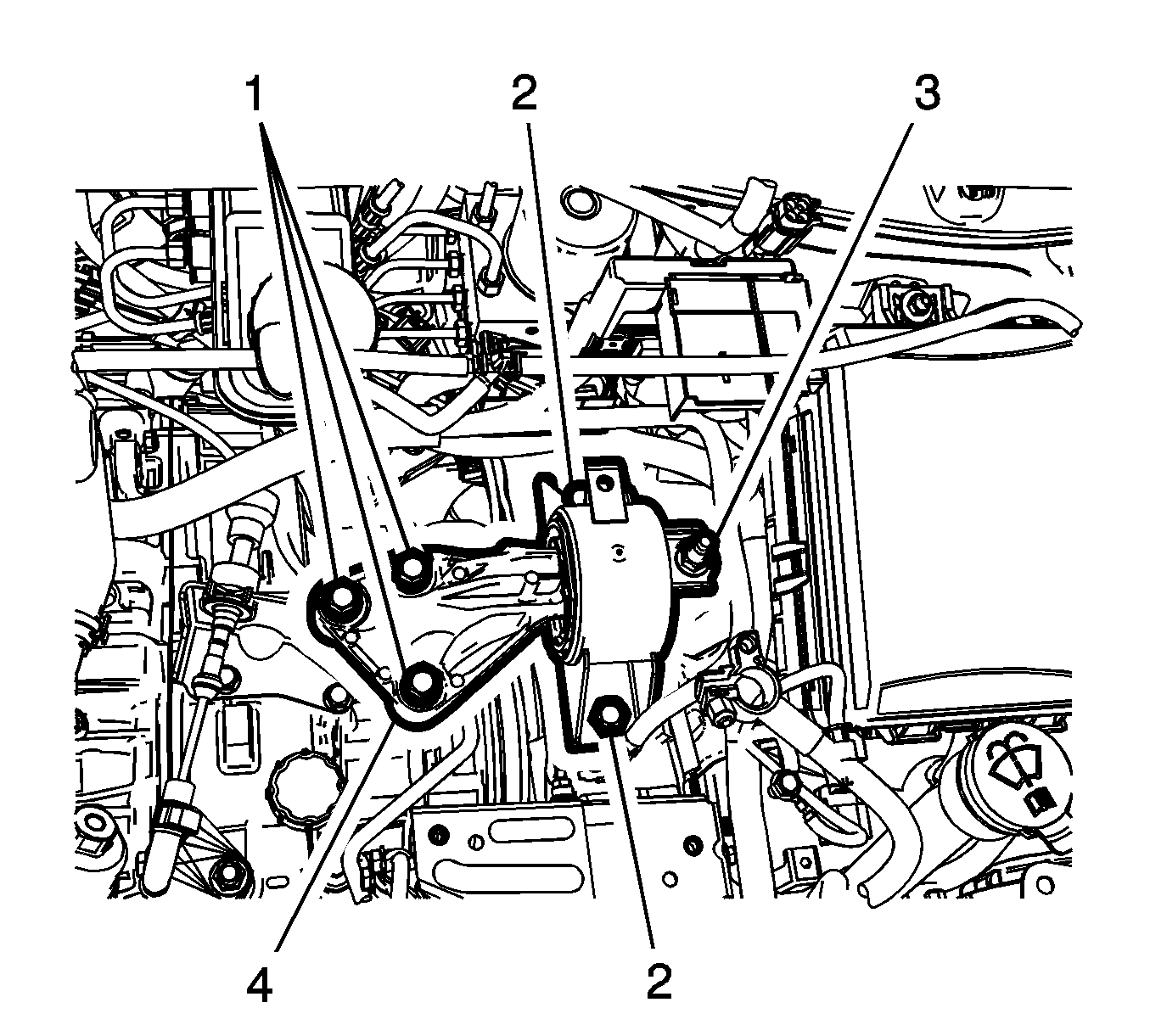

    Fig 1: Left Transmission Mount & Components
    GM2492638Courtesy of GENERAL MOTORS COMPANY
  1. Install the left transmission mount (4) to the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the transmission mount to body bolts (2) and tighten to 58 N.m (43 lb ft).
  3. Install the transmission mount to body nut (3) and tighten to 58 N.m (43 lb ft).
  4. Install the NEW left transmission mount to transmission bolts (1) and tighten to 50 N.m (37 lb ft) plus 60-75 degrees.
  5. Remove the engine support fixture. Refer to Engine Support Fixture .
  6. Install the battery tray. Refer to Battery Tray Replacement .
