Timing Belt Lower Front Cover Replacement

WARNING: This page is about a different variant/trim than selected.

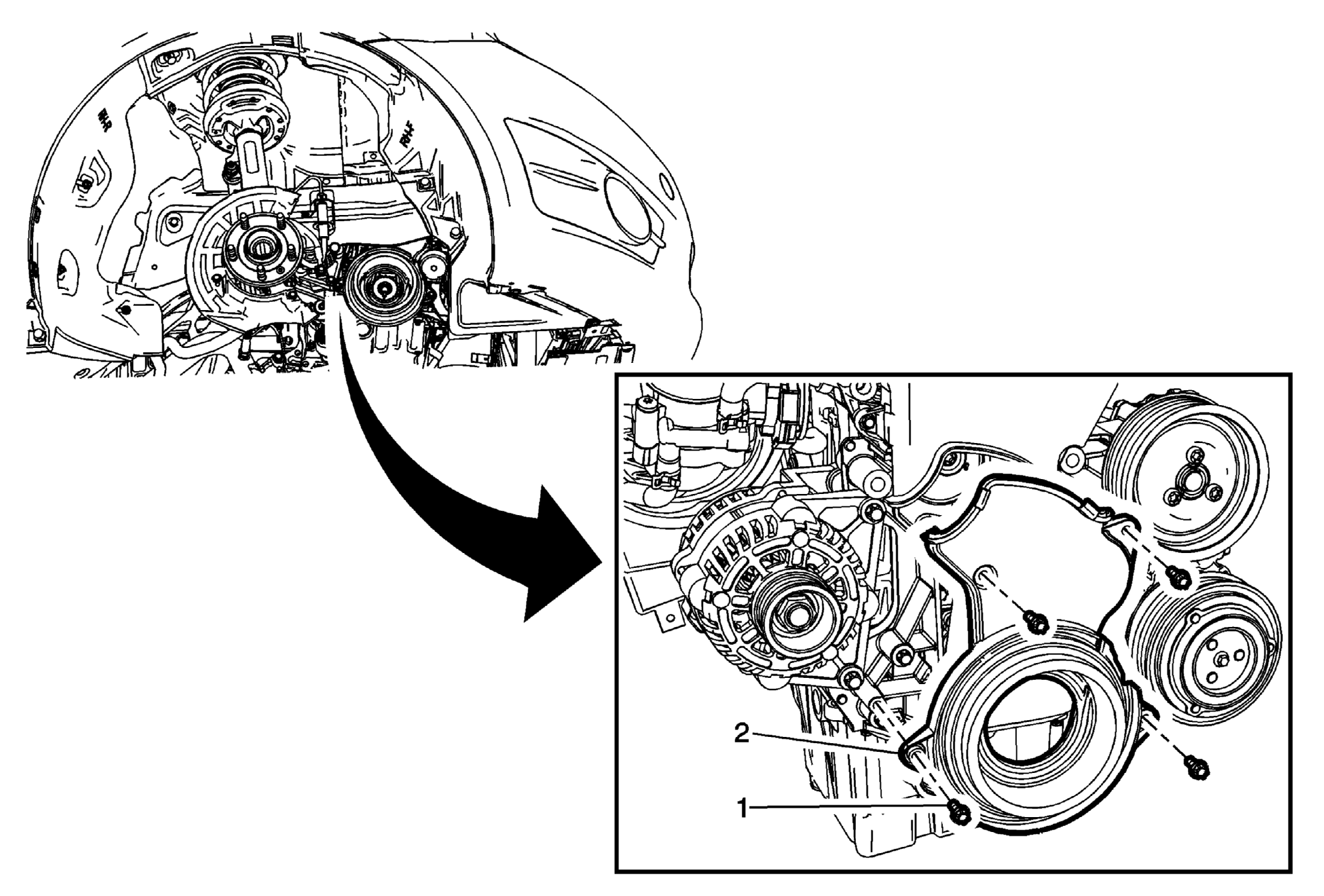

Fig 1: Timing Belt Lower Front Cover & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front wheelhouse liner inner front extension. Refer to Front Wheelhouse Liner Inner Front Extension Replacement (Left SIde) , Front Wheelhouse Liner Inner Front Extension Replacement (Right SIde, LWE, LUW) . Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement . Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .
1	Timing Belt Lower Front Cover Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 6 (53 lb in)
2	Timing Belt Lower Front Cover Procedure Transfer parts as necessary.

Callout

Component Name

Preliminary Procedures

Timing Belt Lower Front Cover Fastener (Qty: 4)

CAUTION:

Tighten
6 (53 lb in)

Timing Belt Lower Front Cover
Procedure
Transfer parts as necessary.
