Engine Mount Replacement

WARNING: This page is about a different variant/trim than selected.

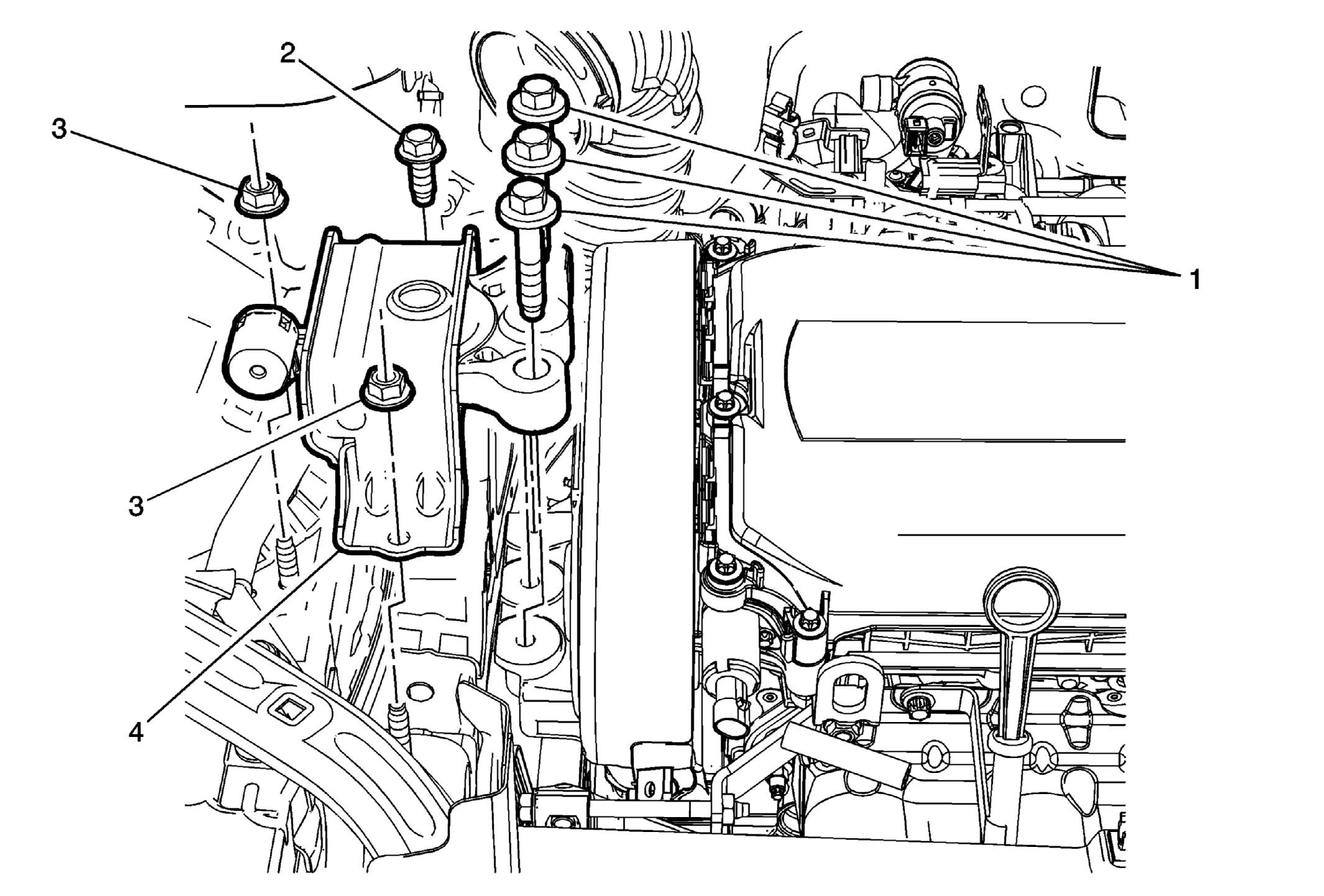

Fig 1: Engine Mount & Components

GM2532013

Courtesy of GENERAL MOTORS COMPANY

Engine Mount Replacement

Callout	Component Name
Preliminary Procedures Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Install the engine support fixture. Refer to Engine Support Fixture . Prior to removing the mount, mark the mount location using spray paint or a marker for correct positioning during installation.
1	Engine Mount Bracket to Mount Bolt (Qty; 3) CAUTION: Refer to Fastener Caution . NOTE: Use NEW bolts whenever mount is removed. Tighten 58 (43 lb ft) Special Tools EN-45059 Torque Angle Sensor Kit. For equivalent regional tools, refer to Special Tools
2	Engine Mount Bracket Bolt (Qty; 1) NOTE: Ensure to use a NEW bolt whenever the mount is removed. Tighten 58 (43 lb ft)
3	Engine Mount Nut (Qty; 2) Tighten 58 (43 lb ft)
4	Engine Mount
