Engine Mount Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

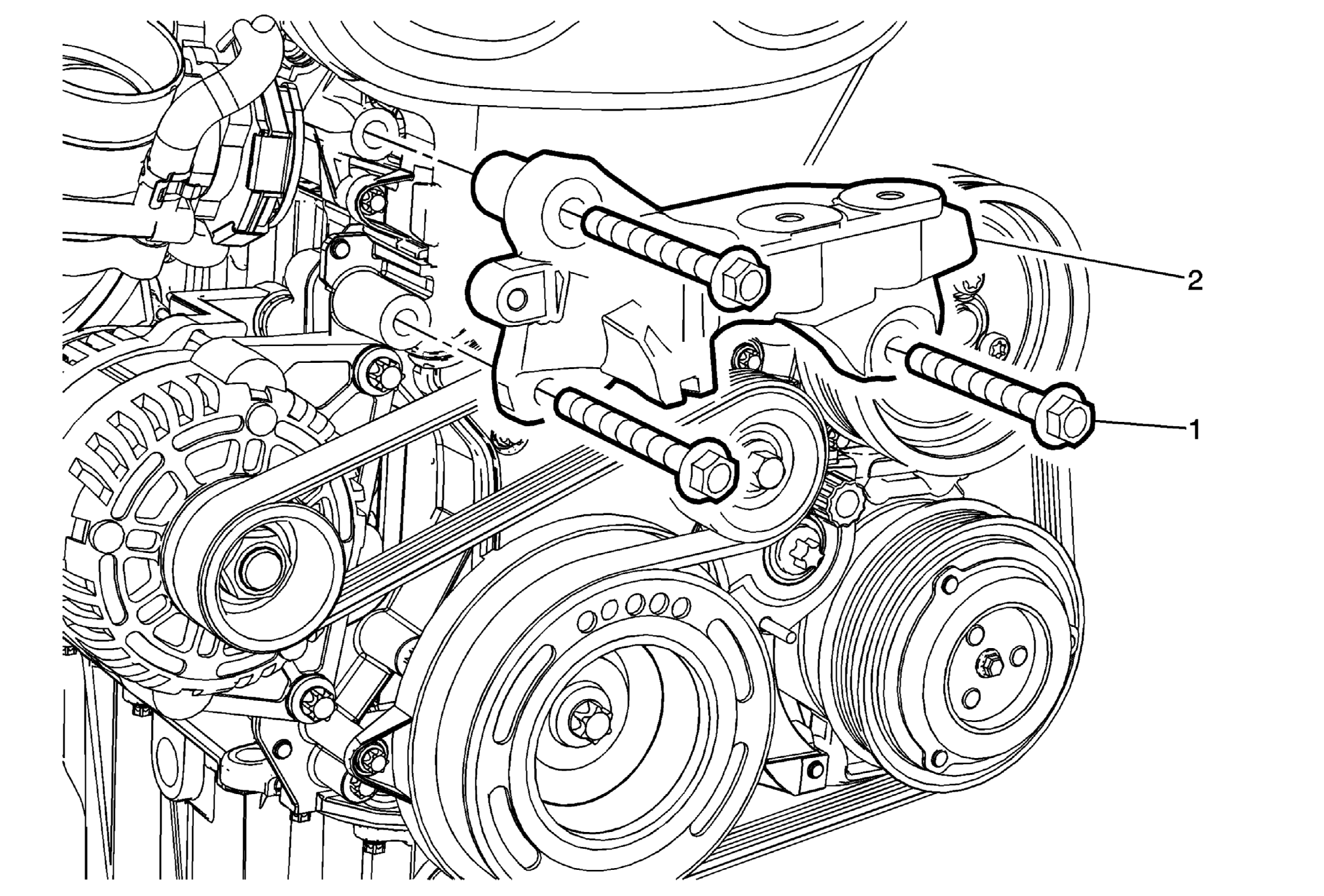

Fig 1: Engine Mount Bracket & Bolts
GM2495277Courtesy of GENERAL MOTORS COMPANY
Engine Mount Bracket Replacement

Callout Component Name
Preliminary Procedure
Remove the engine mount. Refer to Engine Mount Replacement .
1 Engine Mount Bracket Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
50 (37 lb ft)
2 Engine Mount Bracket
