Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Timing Belt Rear Cover & Bolts
    GM2049388Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Take extreme care to prevent any scratches, nicks or damage to the camshafts and caps bearing surfaces.

  1. Remove the timing belt rear cover (1). Refer to Timing Belt Rear Cover Replacement .
    2. Fig 2: Camshaft Position Solenoid Valve Housing & Bolts
    GM2507071Courtesy of GENERAL MOTORS COMPANY
  2. Remove the camshaft position solenoid valve housing bolts (1) and housing (2).
    3. Fig 3: Camshaft Cap Bolt Removal Sequence
    GM2507077Courtesy of GENERAL MOTORS COMPANY
  3. Remove the camshaft cap bolts in sequence (1, 4, 2, 3).
  4. Remove the camshaft caps.

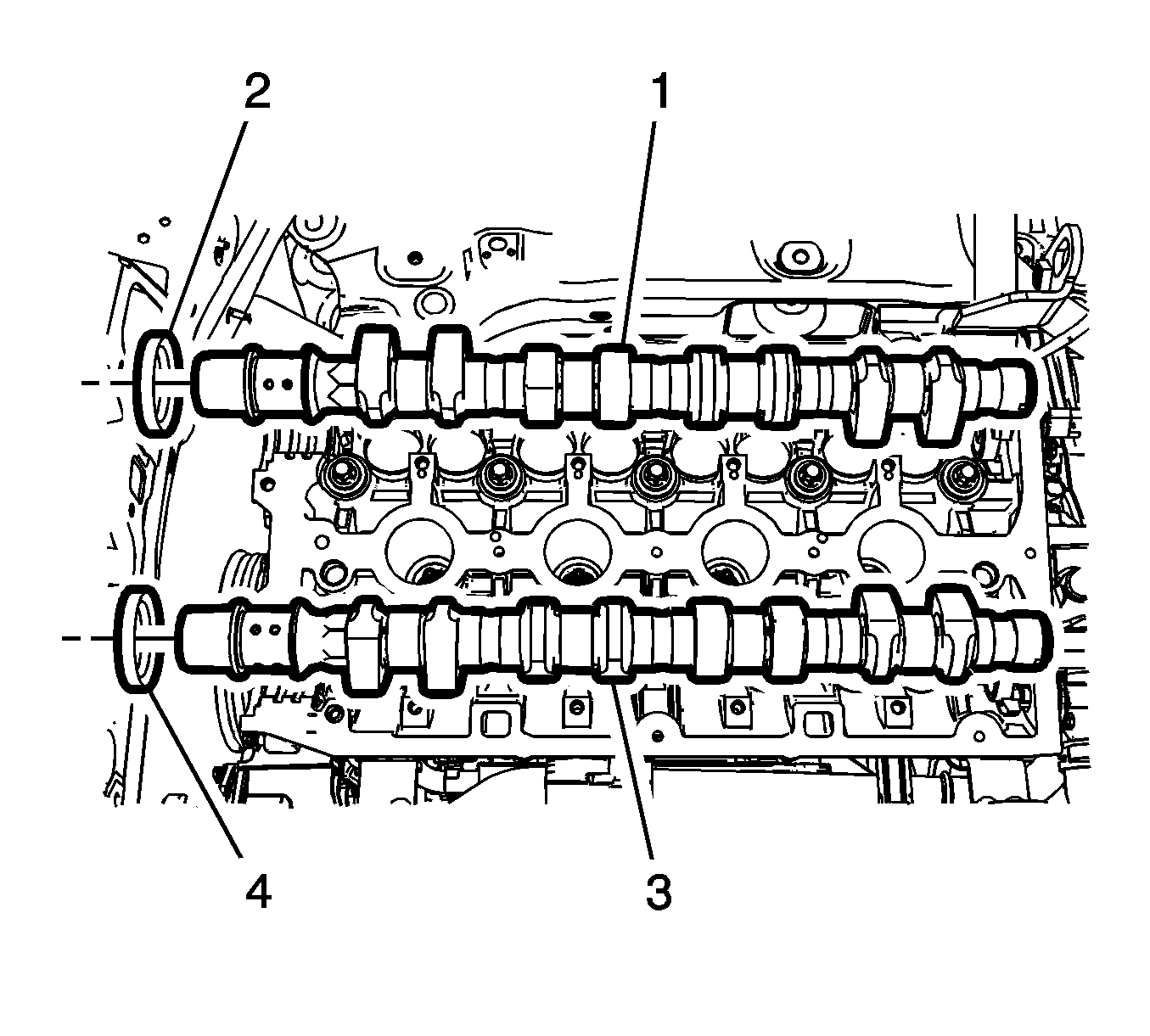

    5. Fig 4: Exhaust Camshaft, Intake Camshaft & Seals
    GM2507086Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Mark the camshafts upon removal to ensure installation is in the correct position.

  5. Remove the intake camshaft (1) and exhaust camshaft (3) as necessary.
    6. NOTE:

    The camshaft seal MUST be replaced whenever the camshaft is removed.

  6. Remove intake camshaft seal (2) and exhaust camshaft seal (4) as necessary.
