Timing Belt Rear Cover Replacement

WARNING: This page is about a different variant/trim than selected.

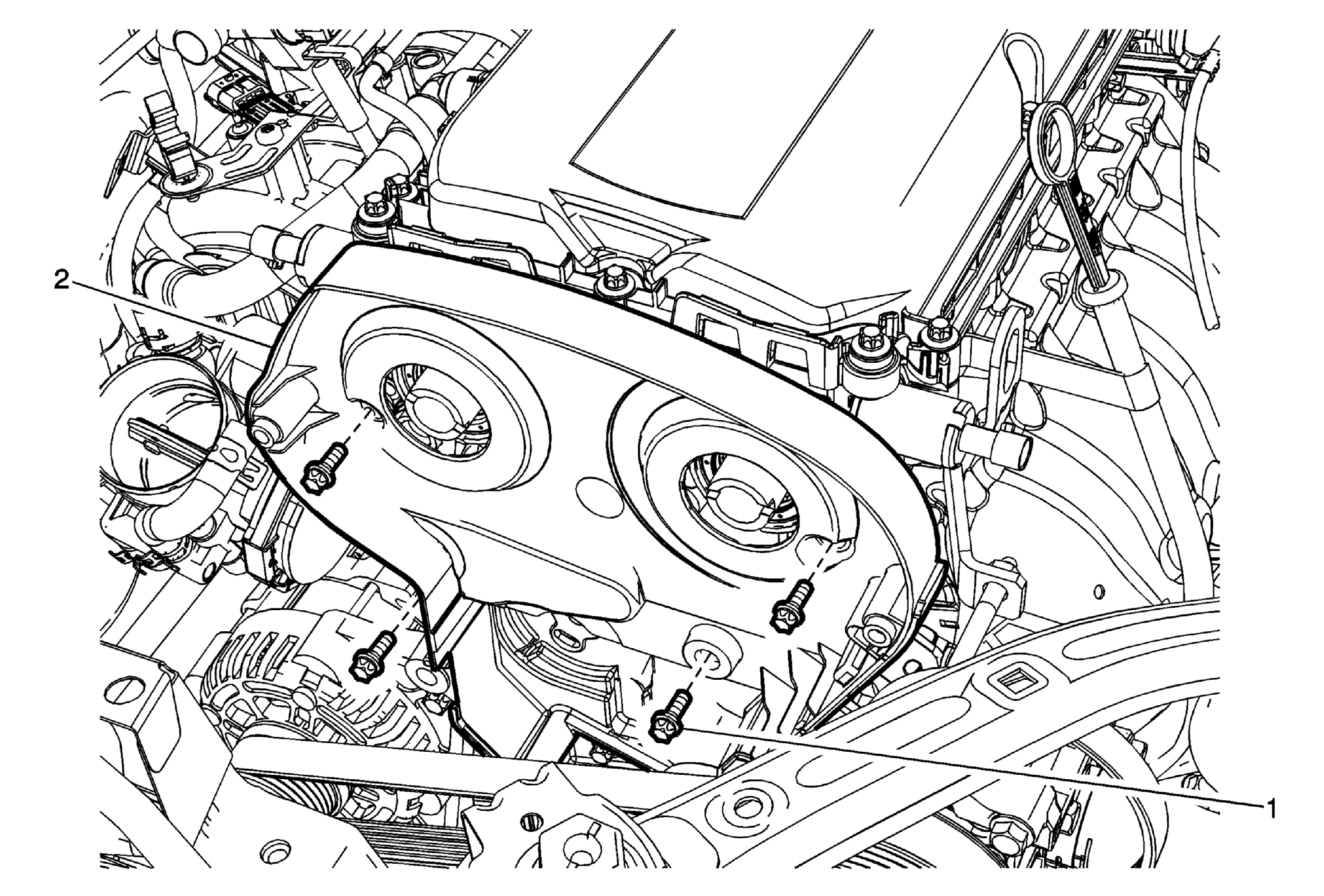

Fig 1: Timing Belt Rear Cover & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the camshaft sprocket. Refer to Camshaft Sprocket Replacement
1	Timing Belt Rear Cover Fastener (Qty 4) CAUTION: Refer to Fastener Caution . Procedure New bolt must be used whenever the cover is removed. Apply locking compound to the NEW timing belt rear cover bolts. Tighten 6 N.m (53 lb in)
2	Timing Belt Rear Cover Procedure Transfer parts as necessary.

Callout

Component Name

Preliminary Procedures
Remove the camshaft sprocket. Refer to Camshaft Sprocket Replacement

Timing Belt Rear Cover Fastener (Qty 4)

CAUTION:

Procedure

Tighten
6 N.m (53 lb in)

Timing Belt Rear Cover
Procedure
Transfer parts as necessary.
