Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Coat and lubricate the camshaft bearing and cam surfaces with clean engine oil.
    2. Fig 1: Sealing Surfaces Of Camshaft Bearing Cap
    GM2049391Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    It is essential to ensure that no sealant is applied outside the marked sealing areas.

  2. Apply sealant to the surface (1) of the 1st camshaft bearing cap.

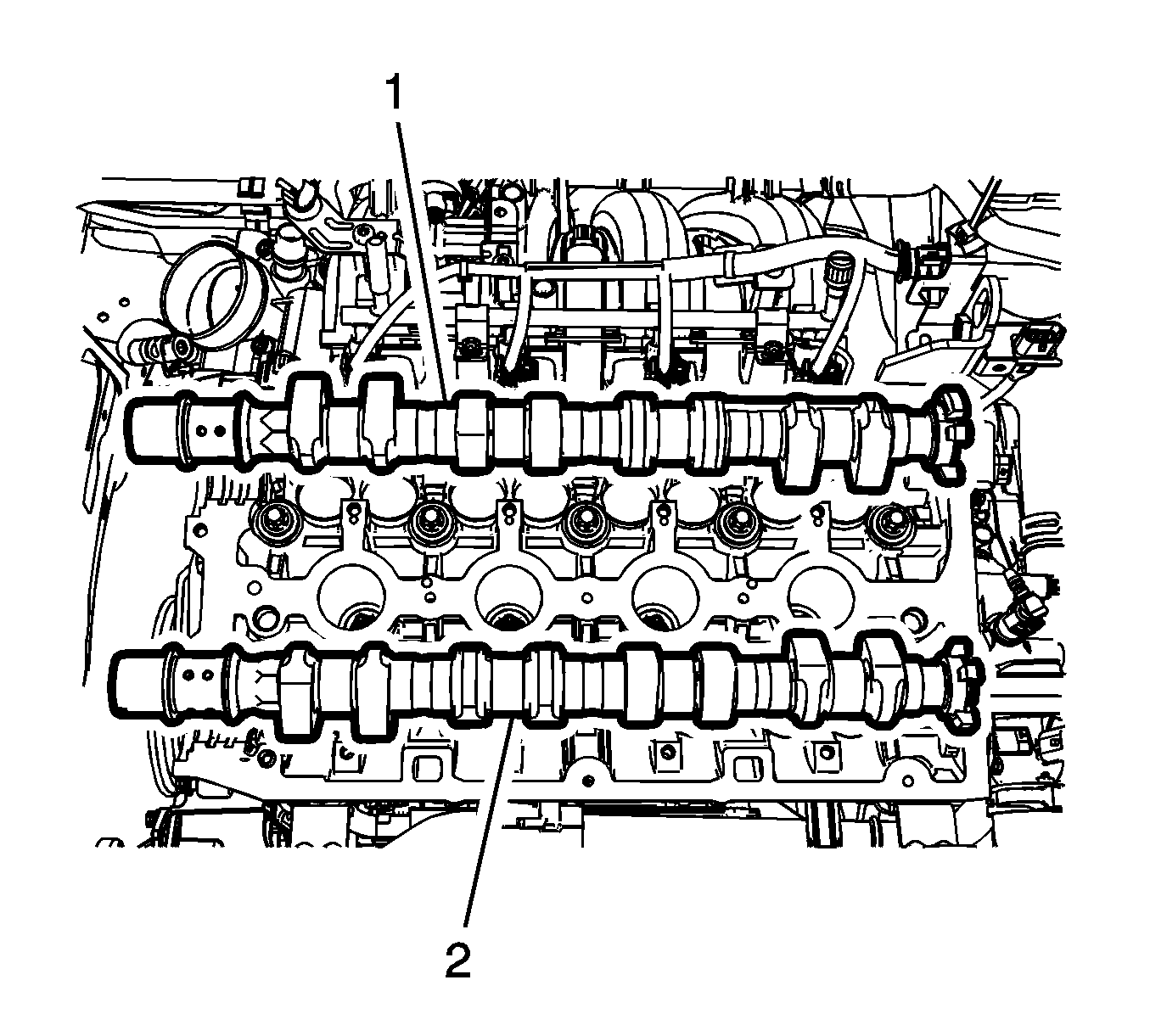

    3. Fig 2: Camshafts
    GM2507087Courtesy of GENERAL MOTORS COMPANY
  3. Install the intake camshaft (1) and exhaust camshaft (2) on the cylinder head.

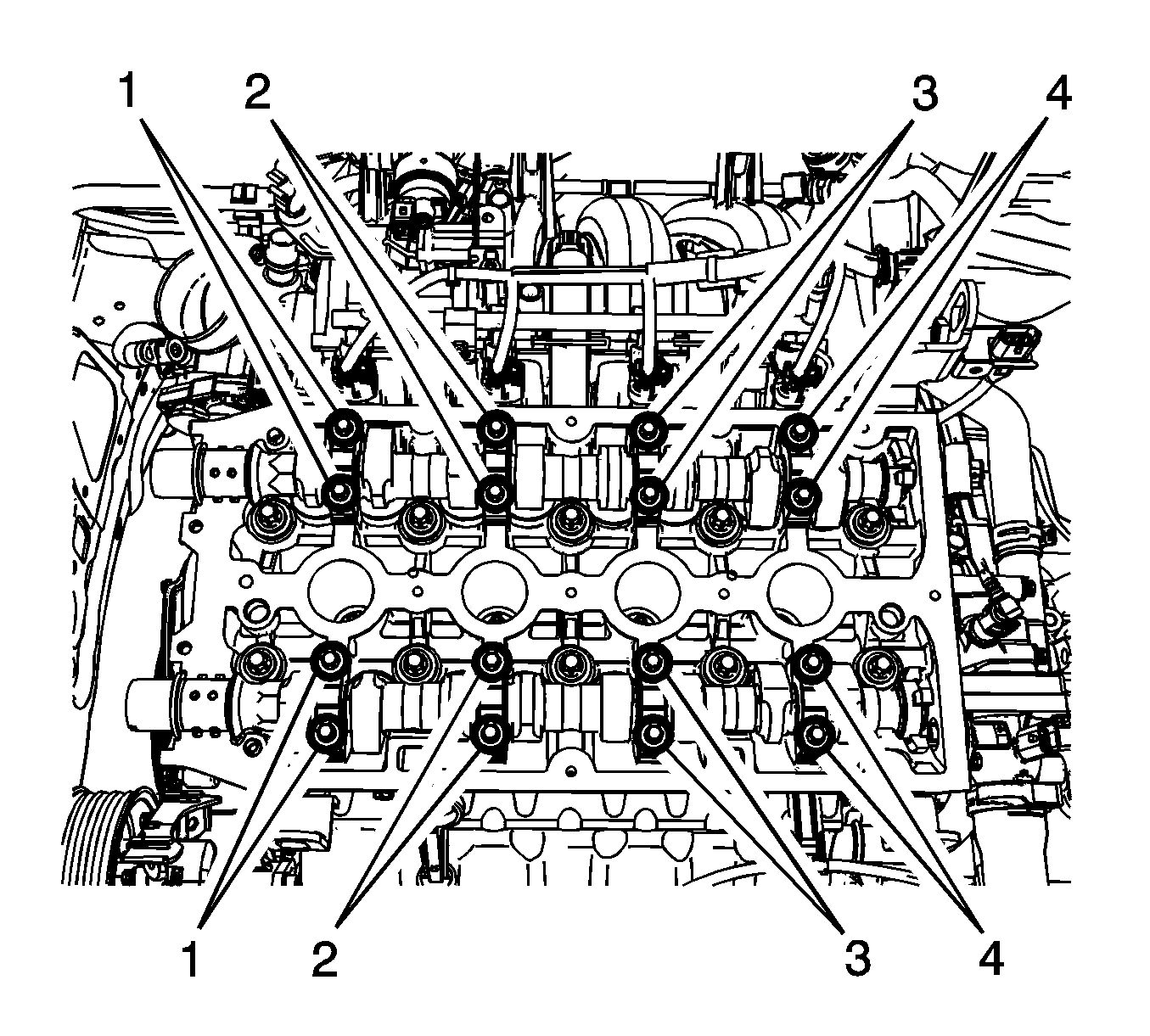

    4. Fig 3: Camshaft Cap Bolt Removal Sequence
    GM2507077Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install the camshaft bearing caps in sequence (2, 3, 1, 4) Tighten the camshaft bearing cap bolts to 8 N.m (71 lb in).

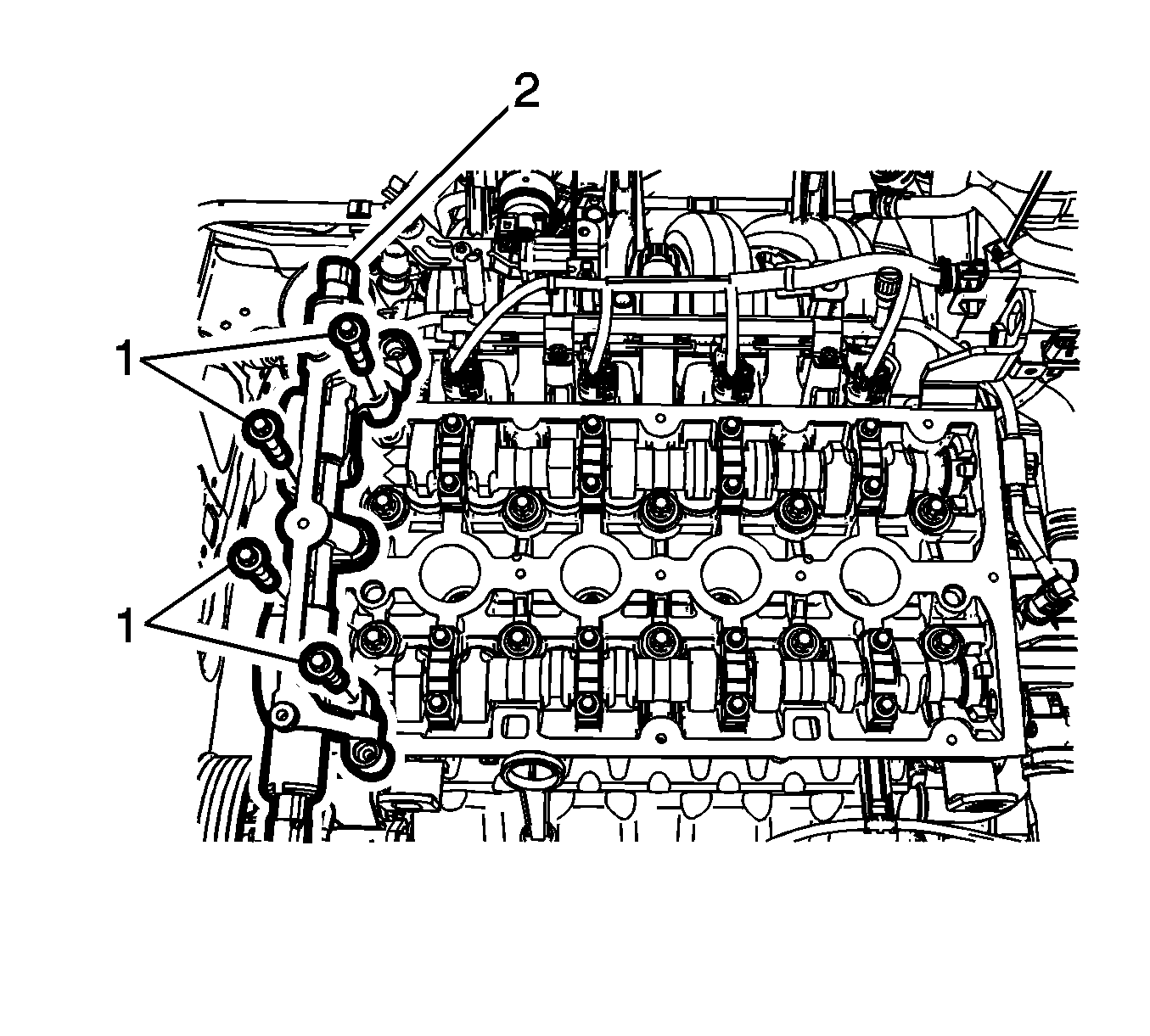

    5. Fig 4: Camshaft Position Solenoid Valve Housing & Bolts
    GM2507071Courtesy of GENERAL MOTORS COMPANY
  5. Install the camshaft position solenoid valve housing (2) and camshaft position solenoid valve housing bolts (1). Tighten the bolts to 8 N.m (71 lb in).
  6. Install the new camshaft oil seal rings using EN-422  installer.
    7. Fig 5: Timing Belt Rear Cover & Bolts
    GM2049388Courtesy of GENERAL MOTORS COMPANY
  7. Install the timing belt rear cover (1) and tighten the bolts (2) to 6 N.m (53 lb in). Refer to Timing Belt Rear Cover Replacement .
