Radiator Surge Tank Replacement

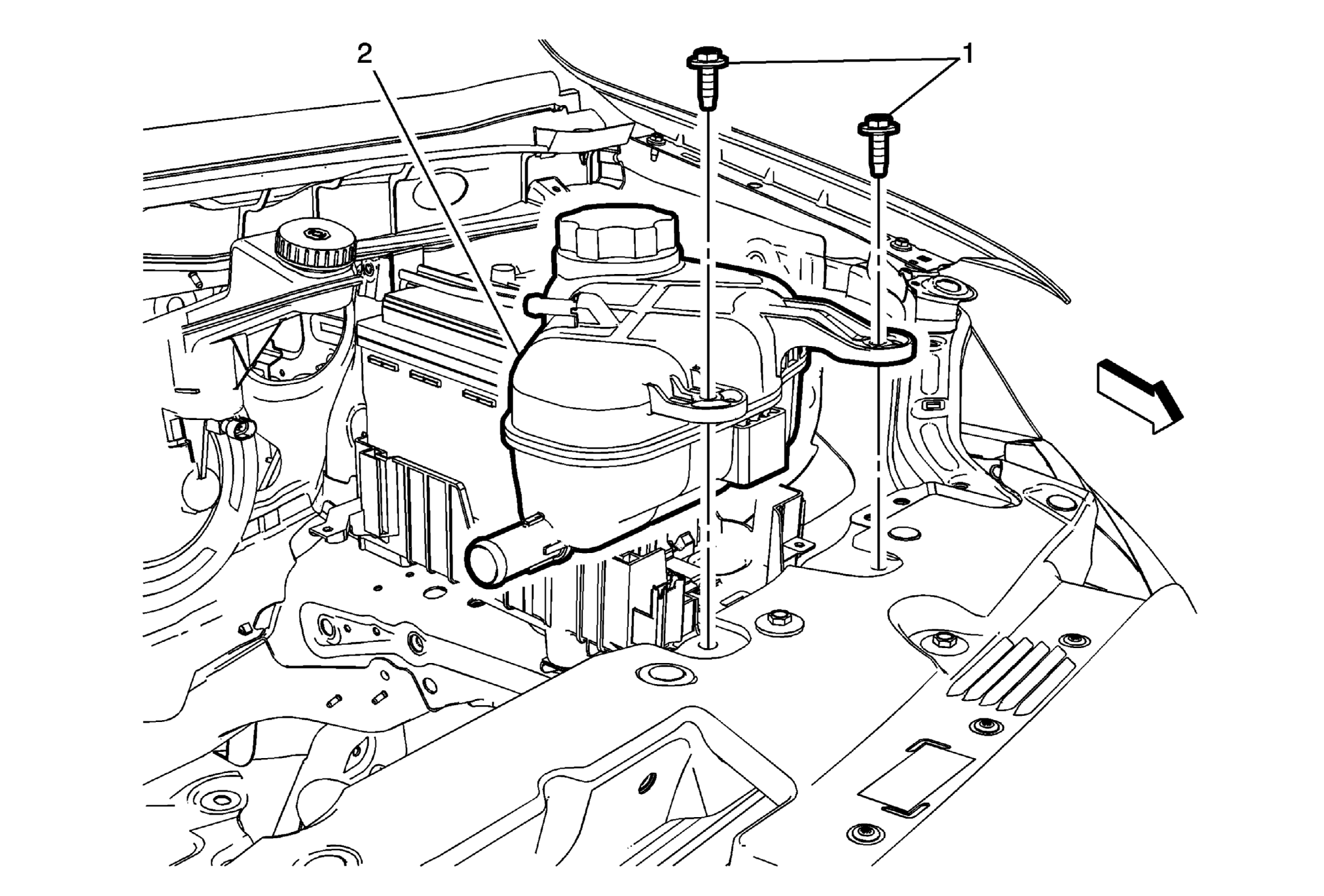

Fig 1: Radiator Surge Tank

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the coolant. Refer to Cooling System Draining and Filling Remove the engine coolant air bleed hose. Refer to Engine Coolant Air Bleed Hose Replacement (LUV) Remove the radiator surge tank outlet hose. Refer to Radiator Surge Tank Outlet Hose Replacement (LUV) , Radiator Surge Tank Outlet Hose Replacement (LDE LUW)
1	Radiator Surge Tank Bolts (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Radiator Surge Tank

Callout

Component Name

Preliminary Procedure

Radiator Surge Tank Bolts (Qty: 2)

CAUTION:

Radiator Surge Tank
