Radiator Surge Tank Outlet Hose Replacement (LUV)

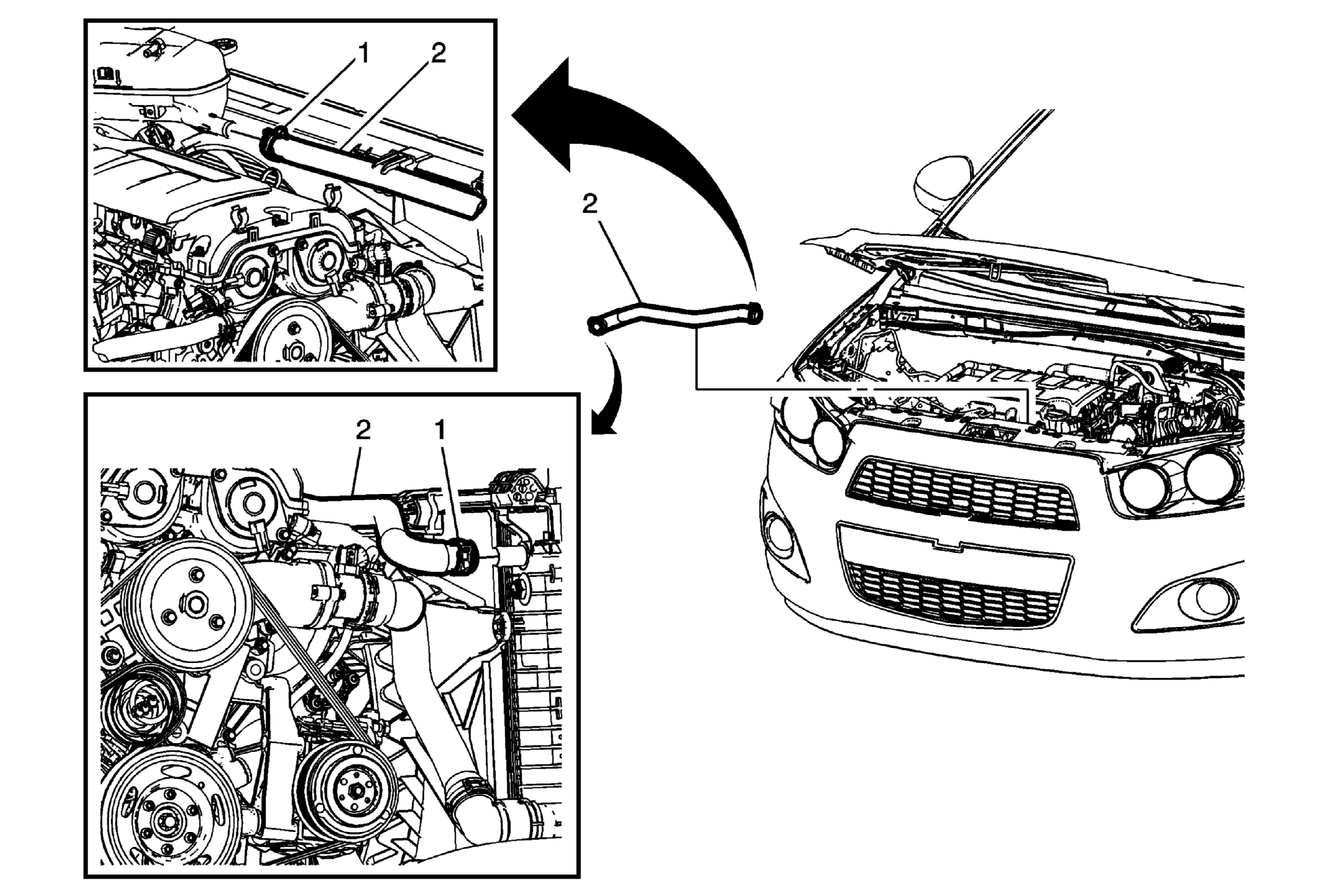

Fig 1: Radiator Surge Tank Outlet Hose (LUV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the engine coolant. Refer to Cooling System Draining and Filling . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Radiator Surge Tank Outlet Hose Clamp (Qty: 2) Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Radiator Surge Tank Outlet Hose Procedure Unclip the radiator surge tank outlet hose from the engine fan shroud.

Callout

Component Name

Preliminary Procedures

Drain the engine coolant. Refer to Cooling System Draining and Filling .
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

Radiator Surge Tank Outlet Hose Clamp (Qty: 2)
Special Tools
BO-38185 Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .

Radiator Surge Tank Outlet Hose
Procedure
Unclip the radiator surge tank outlet hose from the engine fan shroud.
