Front Floor Console Cover Replacement (Automatic Transmission)

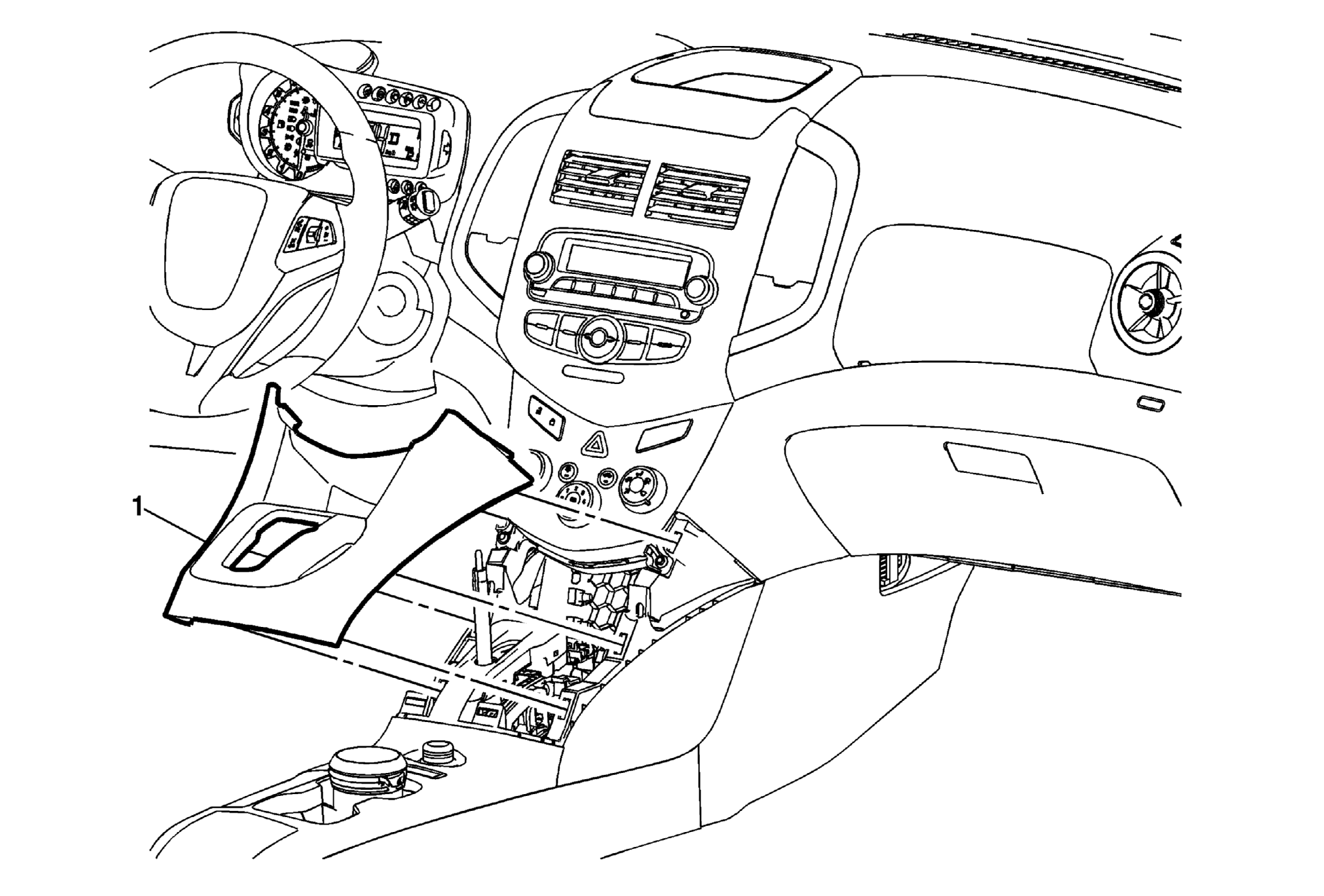

Fig 1: Front Floor Console Cover (Automatic Transmission)
GM2498292Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Cover Replacement (Automatic Transmission)

Callout Component Name
1 Front Floor Console Cover Assembly

Procedures

  1. Apply the parking brake.
  2. Move the shifter from "Park" to the "Neutral" position.
  3. Use a flat-bladed plastic trim tool in order to release the retainers securing the console cover to the console assembly.
  4. Disconnect the electrical connections.
  5. When replacing the console cover, transfer all necessary components.
