Fuel Feed Pipe Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

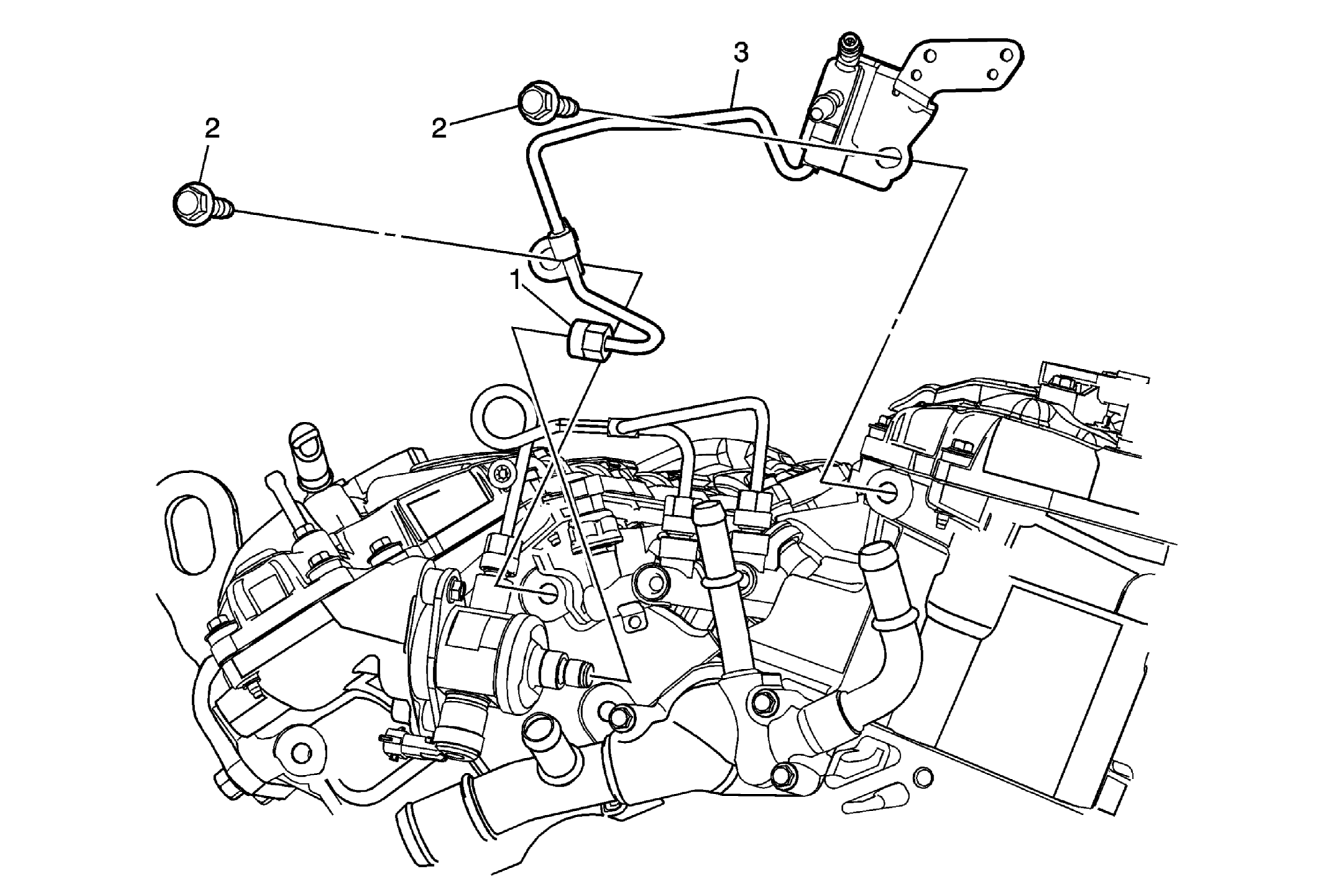

Fig 1: View Of Fuel Feed Pipe Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Relieve the fuel system pressure. Refer to Fuel Pressure Relief Remove the Intake manifold cover. Refer to Intake Manifold Cover Replacement Remove the fuel pipe shield. Refer to Fuel Pipe Shield Replacement .
1	Fitting (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten: 28 N.m (20 lb ft)
2	Bolt (Qty: 2) Tighten: 50 N.m (28 lb ft)
3	Fuel Feed Pipe Procedure Discard the pipe when removed and install a new pipe. Ensure that the high pressure fuel pipe, and fuel pump fittings are clean and dry prior to assembly. Pressure up the fuel system and check for leaks.
