Turbocharger Coolant Return Pipe Replacement (LAU)

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

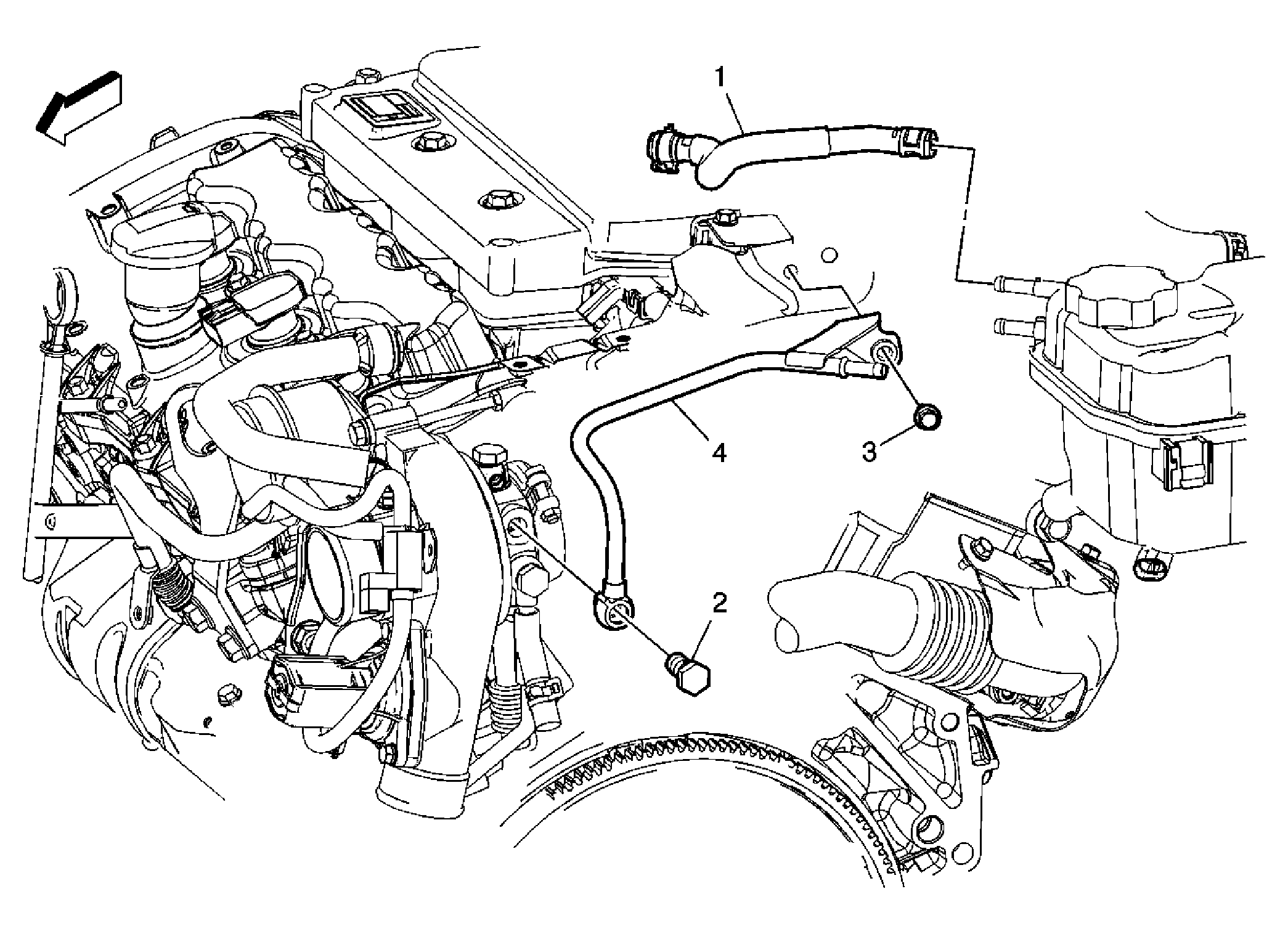

Fig 1: Identifying Turbocharger Coolant Return Pipe (LAU)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LF1) or Cooling System Draining and Filling - Vac-N-Fill (GE 47716) or Cooling System Draining and Filling (Static Fill LAU) . Remove the radiator surge tank engine hose. Refer to Radiator Surge Tank Engine Hose Replacement (LAU) .
1	Radiator Surge Tank Engine Hose
2	Banjo Bolt CAUTION: Refer to Fastener Caution . Tighten: 35 N.m (26 lb ft)
3	Banjo Bolt Tighten: 35 N.m (26 lb ft)
4	Turbocharger Coolant Return Pipe
