Radiator Surge Tank Engine Hose Replacement (LAU)

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

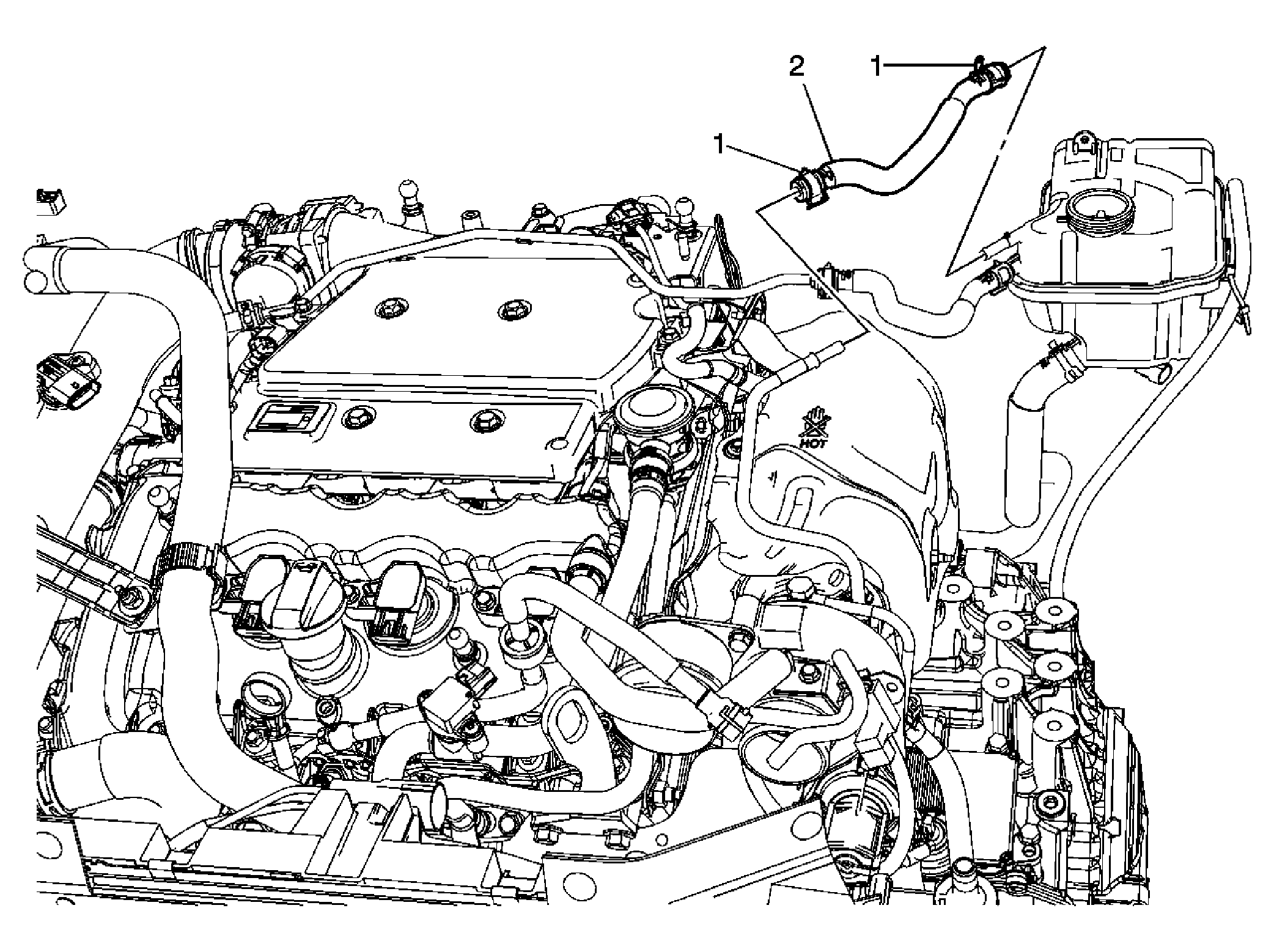

Fig 1: Locating Radiator Surge Tank Engine Hose (LAU)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the coolant. Refer to Cooling System Draining and Filling (Static Fill LF1) or Cooling System Draining and Filling - Vac-N-Fill (GE 47716) or Cooling System Draining and Filling (Static Fill LAU) . Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Radiator Surge Tank Engine Hose Clamp (Qty: 2) Procedure: Disengage tension on the radiator surge tank engine hose clamps using BO-38185: Hose Clamp Pliers. Special Tools: BO-38185: Hose Clamp Pliers For equivalent regional tools, Refer to Special Tools
2	Radiator Surge Tank Engine Hose

Callout

Component Name

Preliminary Procedures

Drain the coolant. Refer to Cooling System Draining and Filling (Static Fill LF1) or Cooling System Draining and Filling - Vac-N-Fill (GE 47716) or Cooling System Draining and Filling (Static Fill LAU) .
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .

Radiator Surge Tank Engine Hose Clamp (Qty: 2)
Procedure:
Disengage tension on the radiator surge tank engine hose clamps using BO-38185: Hose Clamp Pliers.
Special Tools:
BO-38185: Hose Clamp Pliers
For equivalent regional tools, Refer to Special Tools

Radiator Surge Tank Engine Hose
