Radiator Outlet Hose Replacement (LAU)

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

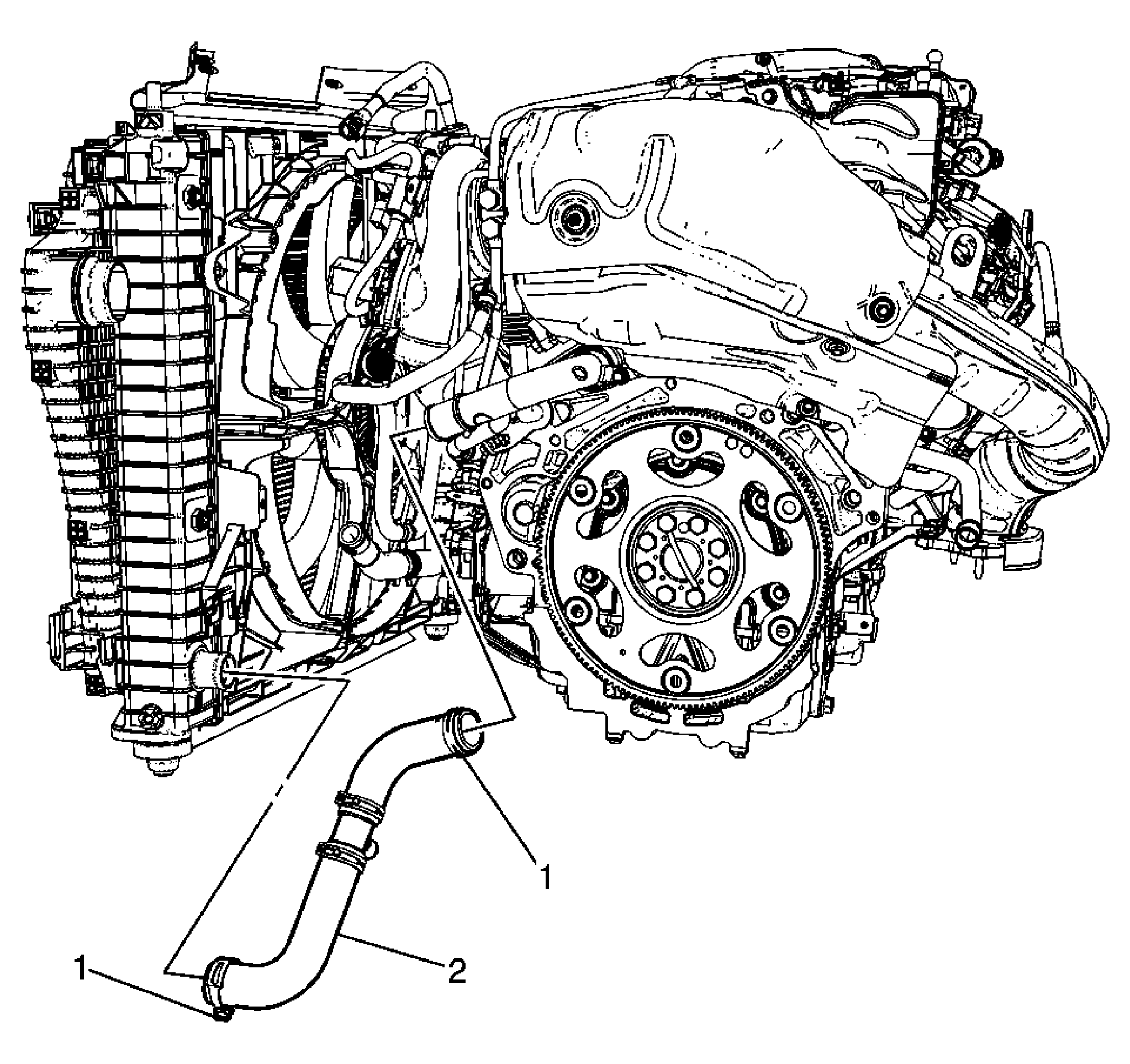

Fig 1: View Of Radiator Outlet Hose (LAU)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LF1) or Cooling System Draining and Filling - Vac-N-Fill (GE 47716) or Cooling System Draining and Filling (Static Fill LAU) Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Remove the auxiliary water pump inlet hose. Refer to Auxiliary Water Pump Inlet Hose Replacement (LAU)
1	Radiator Outlet Hose Clamp Procedure: Disengage tension on the radiator outlet hose clamp using BO-38185: Hose Clamp Pliers. Special Tools: BO-38185: Hose Clamp Pliers For equivalent regional tools, Refer to Special Tools
2	Radiator Outlet Hose

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LF1) or Cooling System Draining and Filling - Vac-N-Fill (GE 47716) or Cooling System Draining and Filling (Static Fill LAU)
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
Remove the auxiliary water pump inlet hose. Refer to Auxiliary Water Pump Inlet Hose Replacement (LAU)

Radiator Outlet Hose Clamp
Procedure:
Disengage tension on the radiator outlet hose clamp using BO-38185: Hose Clamp Pliers.
Special Tools:
BO-38185: Hose Clamp Pliers
For equivalent regional tools, Refer to Special Tools

Radiator Outlet Hose
