Radiator Inlet Hose Replacement (LAU)

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

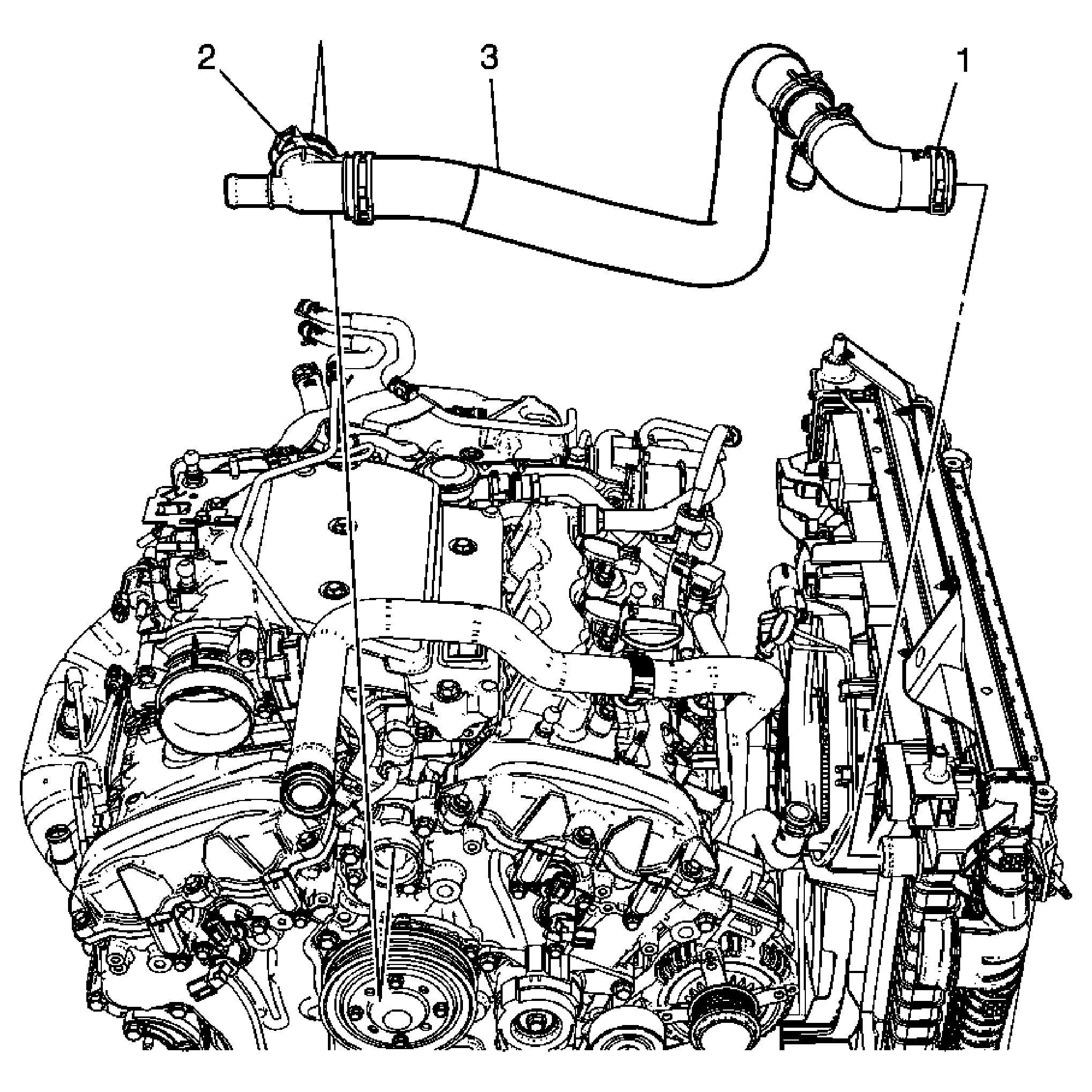

Fig 1: View Of Radiator Inlet Hose (LAU)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LF1) or Cooling System Draining and Filling - Vac-N-Fill (GE 47716) or Cooling System Draining and Filling (Static Fill LAU) . Remove the charge air cooler outlet duct. Refer to Charge Air Cooler Outlet Duct Replacement . Remove the auxiliary water pump outlet upper hose. Refer to Auxiliary Water Pump Outlet Upper Hose Replacement (LAU) . Remove the heater inlet hose. Refer to Heater Inlet Hose Replacement (LF1) or Heater Inlet Hose Replacement (LAU) .
1	Radiator Inlet Hose Clamp Procedure: Disengage tension on the radiator inlet hose clamp using BO-38185: Hose Clamp Pliers. Special Tools: BO-38185: Hose Clamp Pliers For equivalent regional tools, Refer to Special Tools
2	Radiator Inlet Hose Connector
3	Radiator Inlet Hose
