Charge Air Cooler Outlet Duct Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

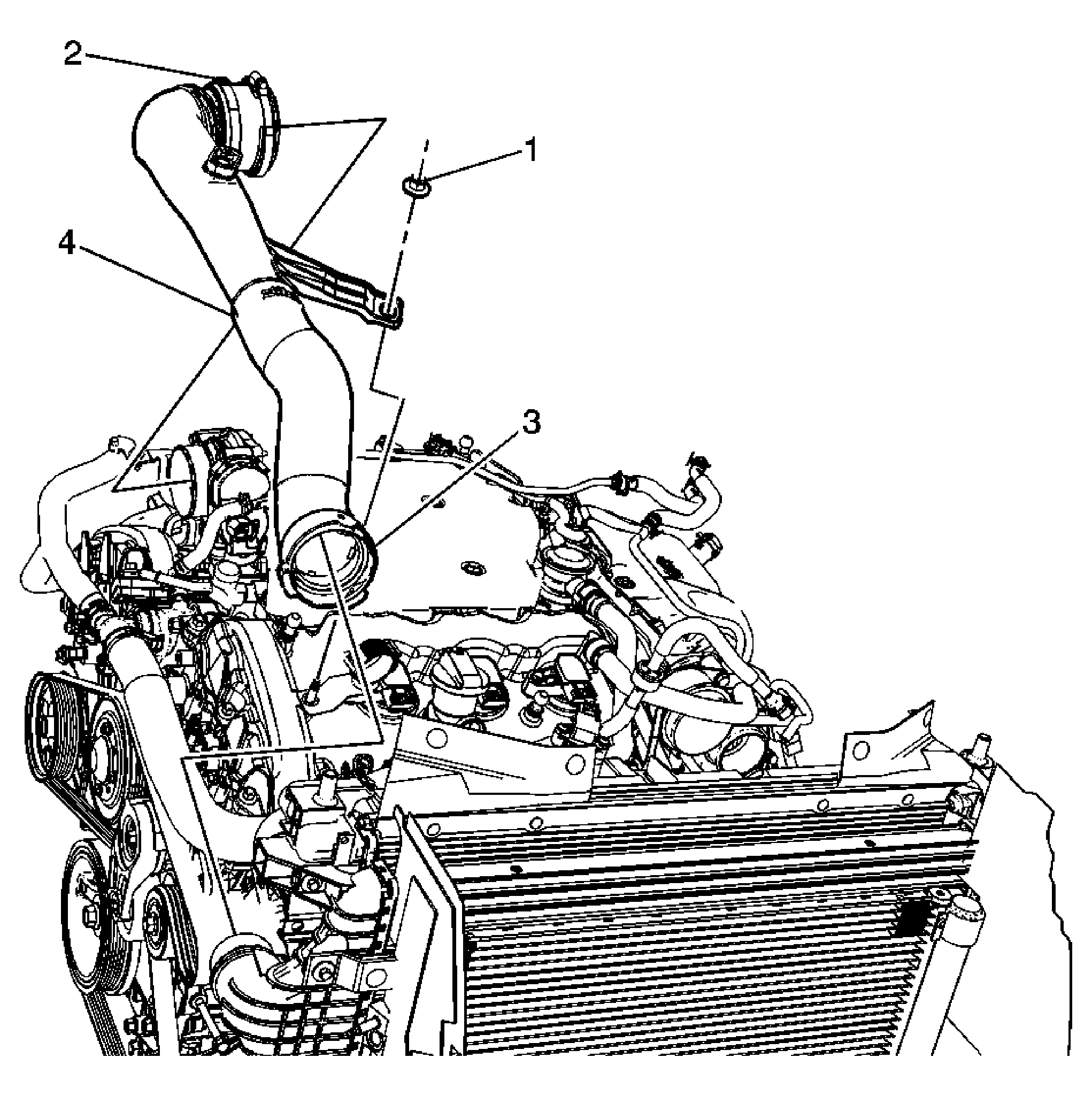

Fig 1: Identifying Charge Air Cooler Outlet Duct

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LF1) or Air Cleaner Outlet Duct Replacement (LAU) . Remove the turbo charger pressure sensor. Refer to Turbocharger Pressure Sensor Replacement .
1	Charge Air Cooler Outlet Duct Fastener (Qty: 2) CAUTION: Refer to Fastener Caution Tighten: 10 N.m (89 lb in)
2	Charge Air Cooler Outlet Duct Clamp Tighten: 4 N.m (35 lb in)
3	Charge Air Cooler Outlet Duct Spring Clamp
4	Charge Air Cooler Outlet Duct
