Engine Oil Cooler Hose/Pipe Replacement (LAU)

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

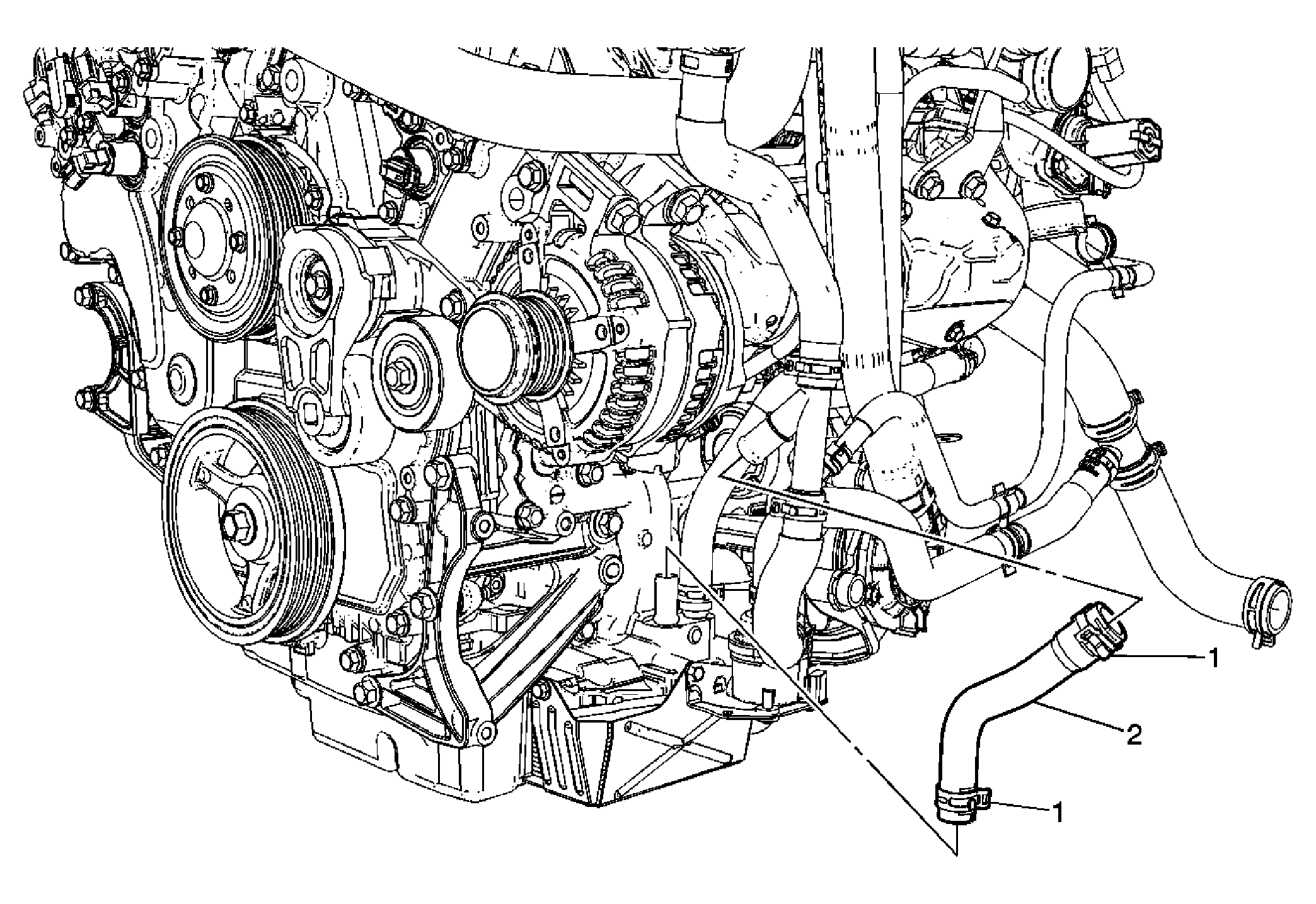

Fig 1: Identifying Engine Oil Cooler Hose/Pipe (LAU)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LF1) or Cooling System Draining and Filling - Vac-N-Fill (GE 47716) or Cooling System Draining and Filling (Static Fill LAU) Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Reposition auxiliary water pump. Refer to Auxiliary Water Pump Replacement (LAU)
1	Engine Oil Cooler Hose Clamps (Qty 2) Procedure: Disengage tension on the engine oil cooler hose clamps using BO-38185: Hose Clamp Pliers. Special Tools: BO-38185: Hose Clamp Pliers For equivalent regional tools, Refer to Special Tools
2	Engine Oil Cooler Hose

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LF1) or Cooling System Draining and Filling - Vac-N-Fill (GE 47716) or Cooling System Draining and Filling (Static Fill LAU)
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
Reposition auxiliary water pump. Refer to Auxiliary Water Pump Replacement (LAU)

Engine Oil Cooler Hose Clamps (Qty 2)
Procedure:
Disengage tension on the engine oil cooler hose clamps using BO-38185: Hose Clamp Pliers.
Special Tools:
BO-38185: Hose Clamp Pliers
For equivalent regional tools, Refer to Special Tools

Engine Oil Cooler Hose
