Auxiliary Water Pump Replacement (LAU)

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

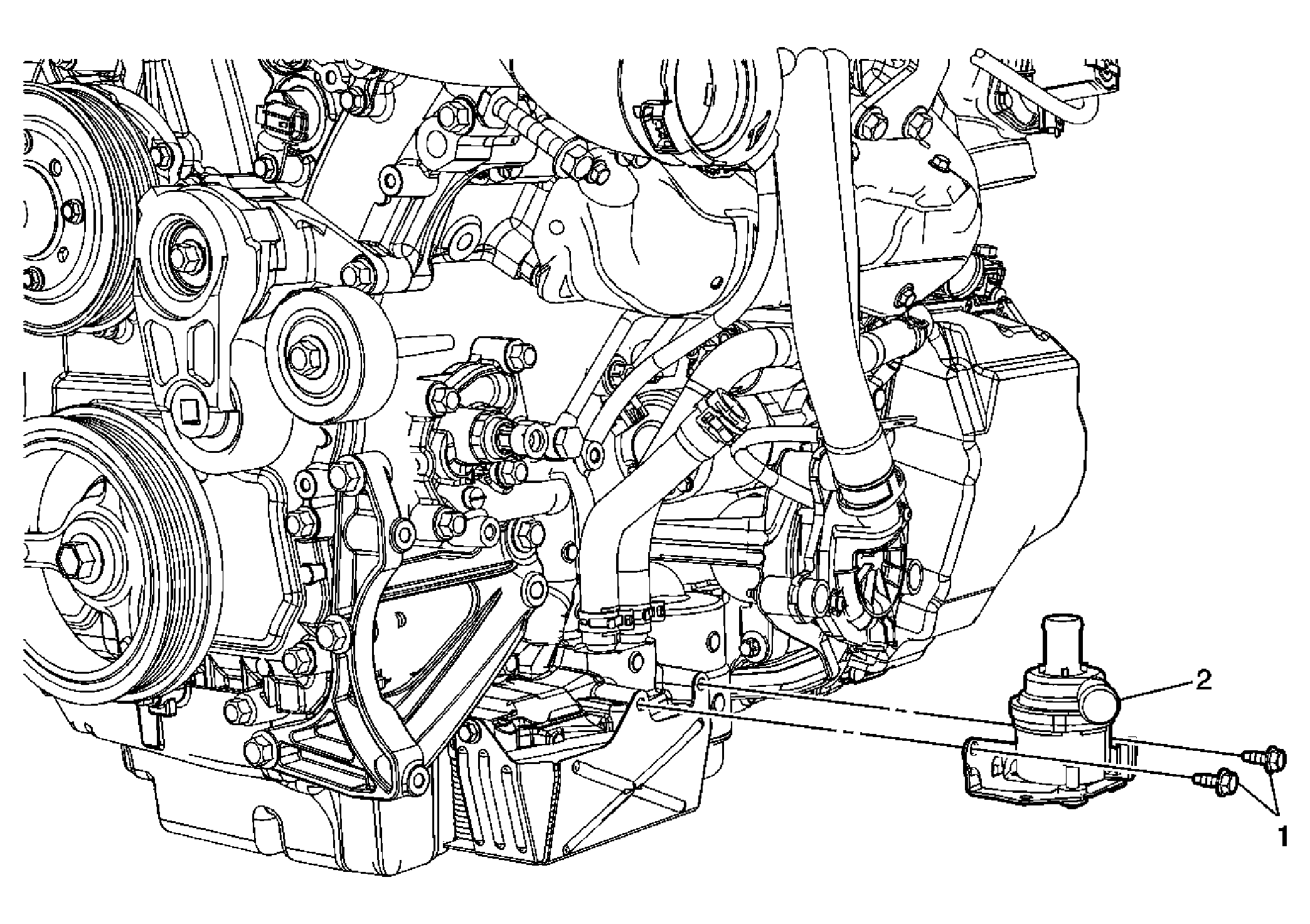

Fig 1: Identifying Auxiliary Water Pump (LAU)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LF1) or Cooling System Draining and Filling - Vac-N-Fill (GE 47716) or Cooling System Draining and Filling (Static Fill LAU) Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Remove the auxiliary water pump outlet hose. Refer to Auxiliary Water Pump Outlet Hose Replacement (LAU) Remove the auxiliary water pump inlet hose. Refer to Auxiliary Water Pump Inlet Hose Replacement (LAU) Disconnect electrical connector from auxiliary water pump.
1	Auxiliary Water Pump Bolts (Qty 2) CAUTION: Refer to Fastener Caution . Tighten: 12 N.m (8 lb ft)
2	Auxiliary Water Pump

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LF1) or Cooling System Draining and Filling - Vac-N-Fill (GE 47716) or Cooling System Draining and Filling (Static Fill LAU)
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
Remove the auxiliary water pump outlet hose. Refer to Auxiliary Water Pump Outlet Hose Replacement (LAU)
Remove the auxiliary water pump inlet hose. Refer to Auxiliary Water Pump Inlet Hose Replacement (LAU)
Disconnect electrical connector from auxiliary water pump.

Auxiliary Water Pump Bolts (Qty 2)

CAUTION: Refer to Fastener Caution .

Tighten: 12 N.m (8 lb ft)

Auxiliary Water Pump
