Radiator Surge Tank Replacement

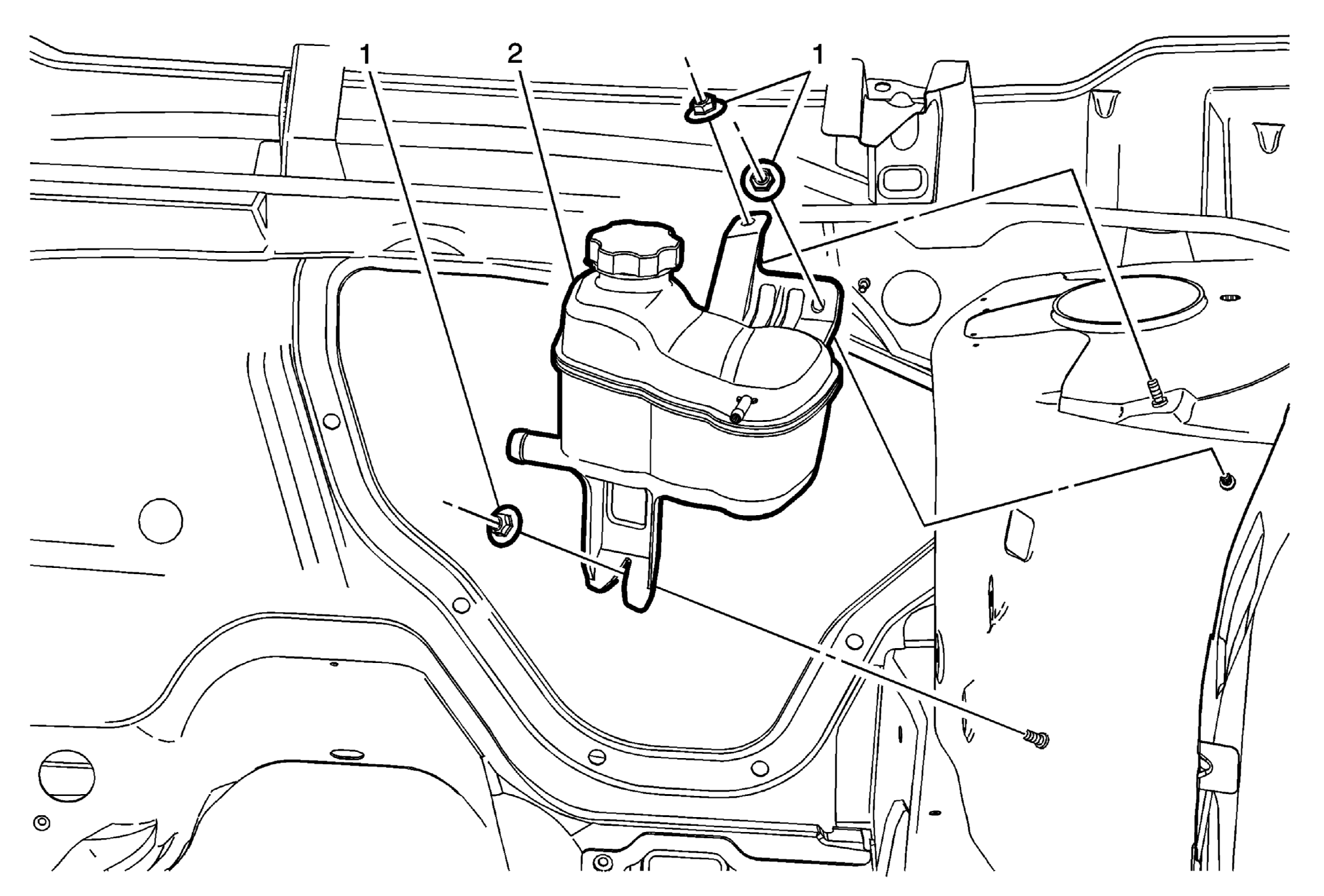

Fig 1: Radiator Surge Tank & Fasteners
GM2628378Courtesy of GENERAL MOTORS COMPANY
Radiator Surge Tank Replacement

Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Refer to Cooling System Draining and Filling .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Remove the radiator surge tank hose. Refer to Radiator Surge Tank Inlet Hose Replacement .
  4. Remove the radiator surge tank hose. Refer to Radiator Surge Tank Outlet Hose Replacement .
1 Radiator Surge Tank Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .
2 Radiator Surge Tank
