Radiator Surge Tank Inlet Hose Replacement

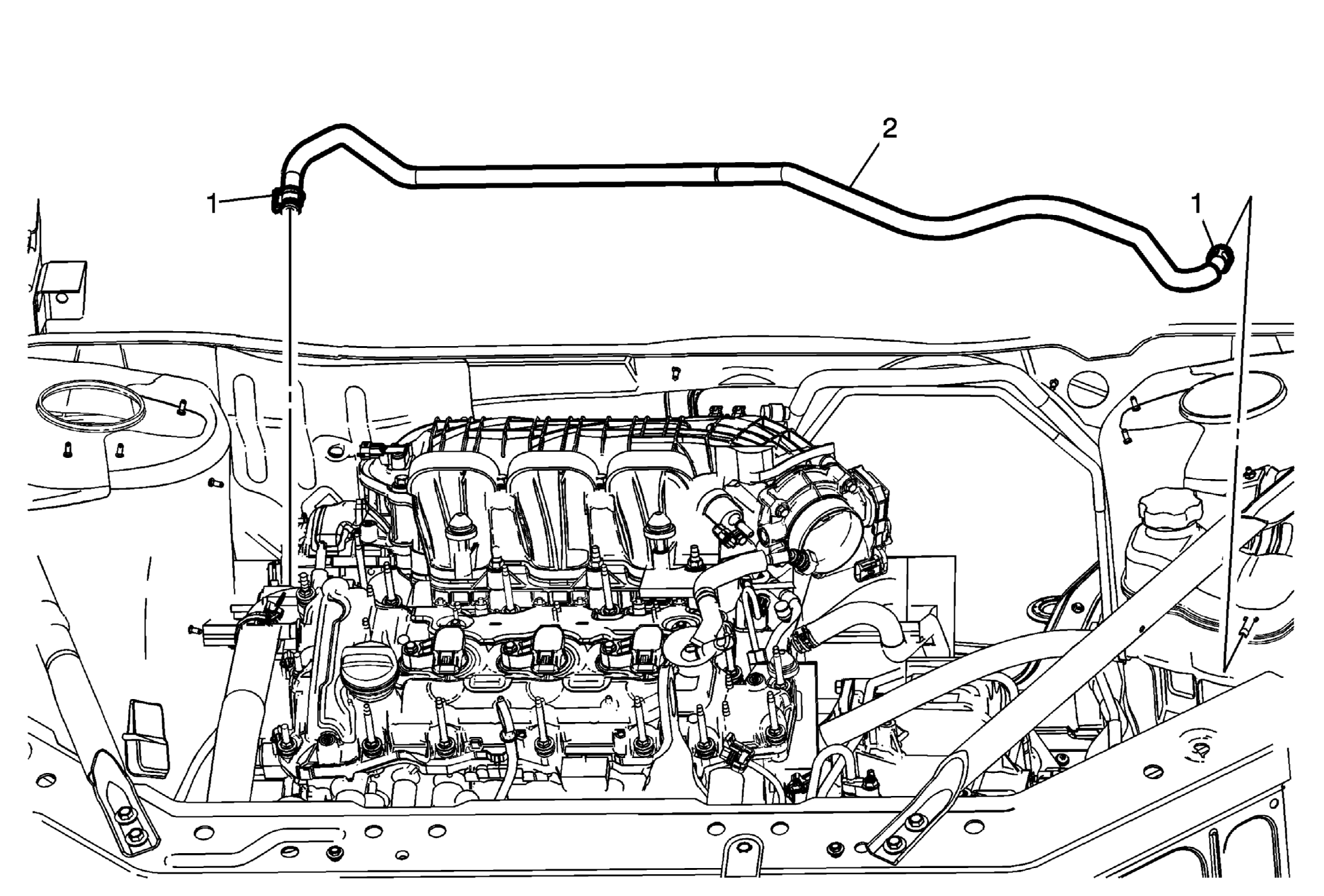

Fig 1: Radiator Surge Tank Inlet Hose & Clamps

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Loosen the power steering reservoir mounting hardware. Reposition the power steering reservoir without draining fluid. Refer to Power Steering Fluid Reservoir Replacement .
1	Hose Clamp (Qty: 2)
2	Radiator Surge Inlet Hose

Callout

Component Name

Preliminary Procedures

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Loosen the power steering reservoir mounting hardware. Reposition the power steering reservoir without draining fluid. Refer to Power Steering Fluid Reservoir Replacement .

Hose Clamp (Qty: 2)

Radiator Surge Inlet Hose
