Intake Manifold Cover Replacement

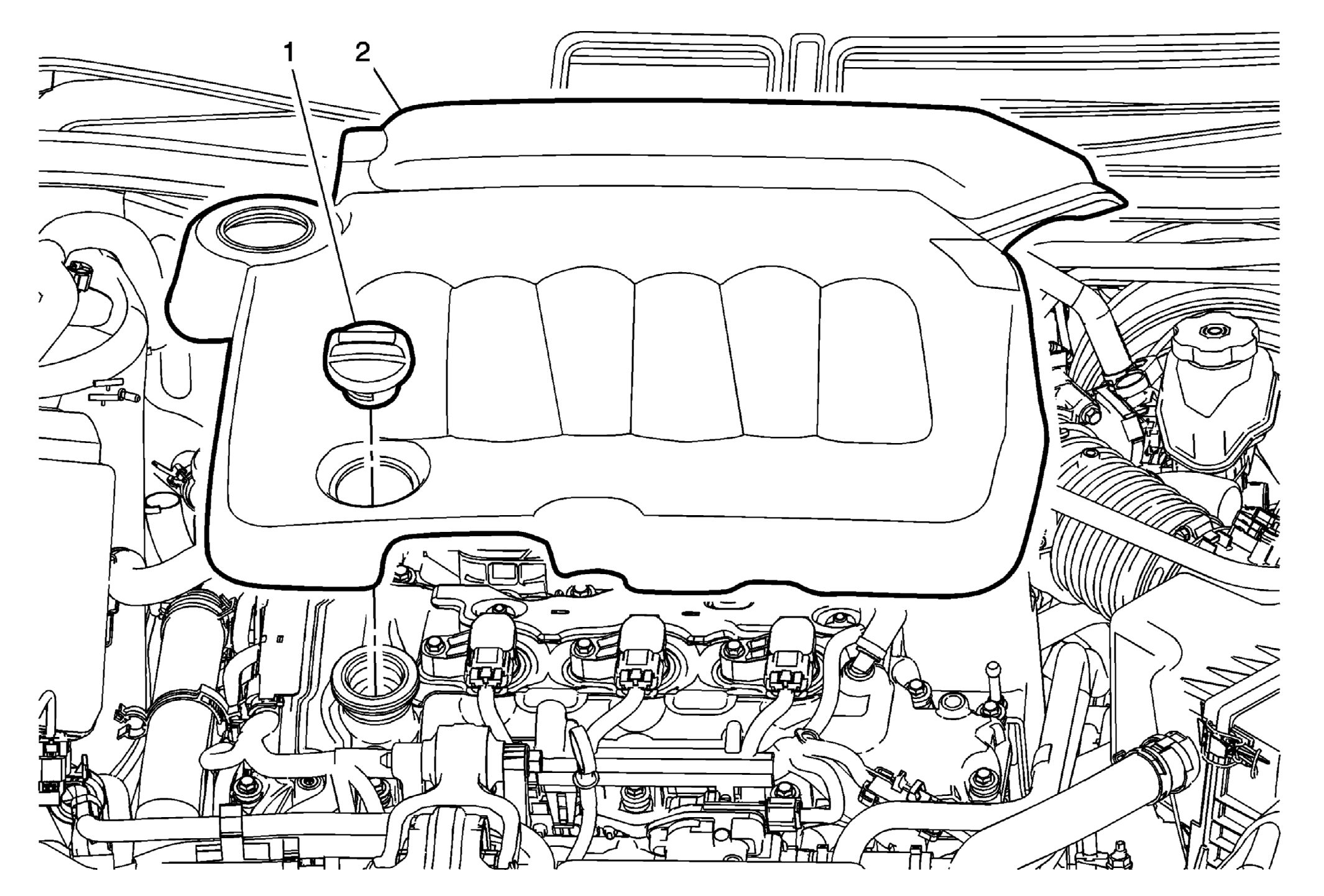

Fig 1: Intake Manifold Cover
GM2648772Courtesy of GENERAL MOTORS COMPANY
Intake Manifold Cover Replacement

Callout Component Name
1 Oil Filler Cap
2 Intake Manifold Cover
Procedure
Grasp cover on outside edges and lift up to release from retainers.
