Transmission Fluid Filler Tube Plug Replacement

WARNING: This page is about a different variant/trim than selected.

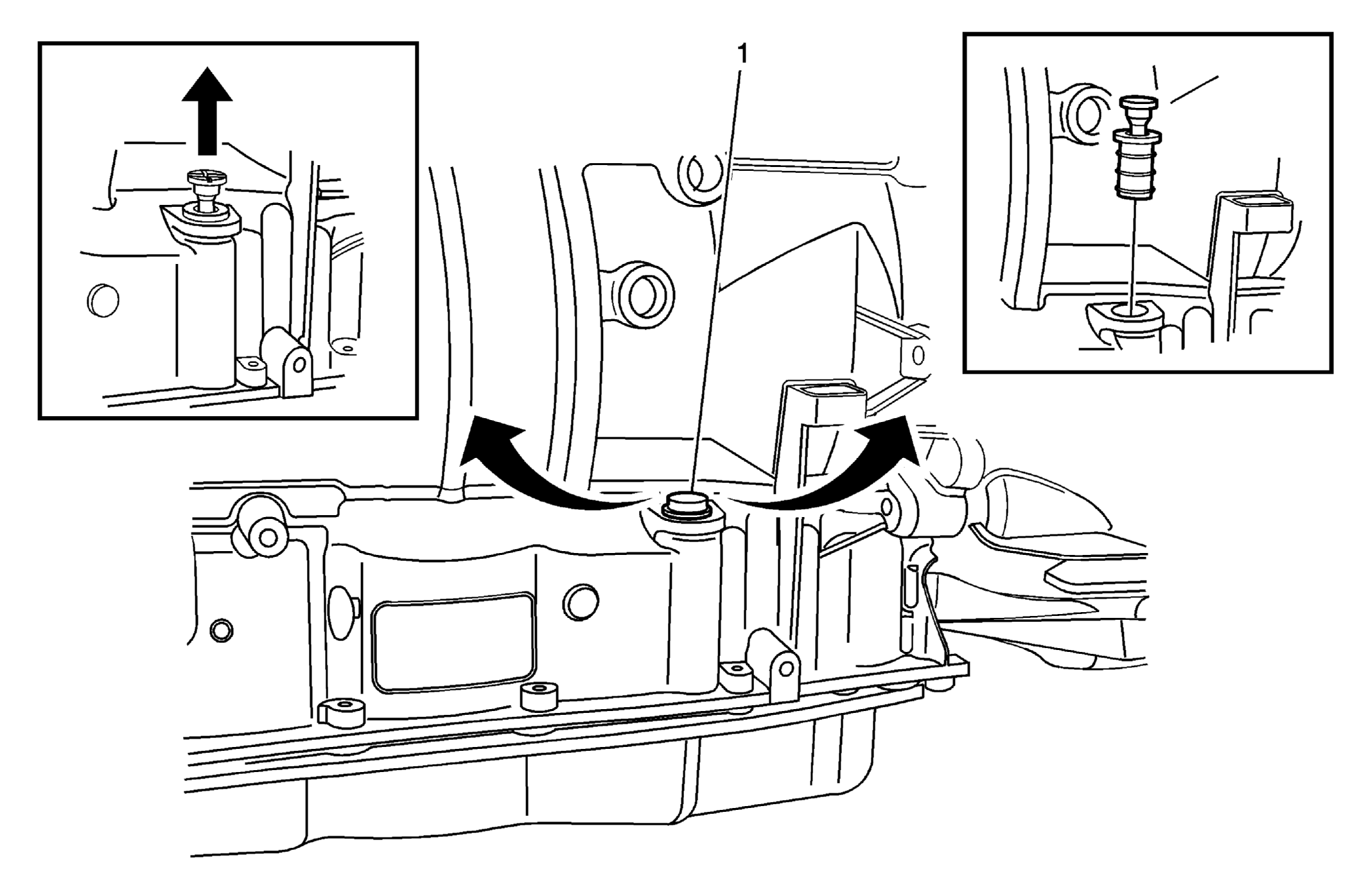

Fig 1: Transmission Fluid Filler Tube Plug Component View
GM1657040Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Filler Tube Plug Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications (Off Vehicle) , Fastener Tightening Specifications (On Vehicle) .
Preliminary Procedures
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Transmission Fluid Filler Tube Plug
  1. Clean the area around the filler tube plug before removal.
  2. Use a door trim tool to release the filler tube plug interlock.
