Hood Hinge Replacement
Hood Hinge Replacement

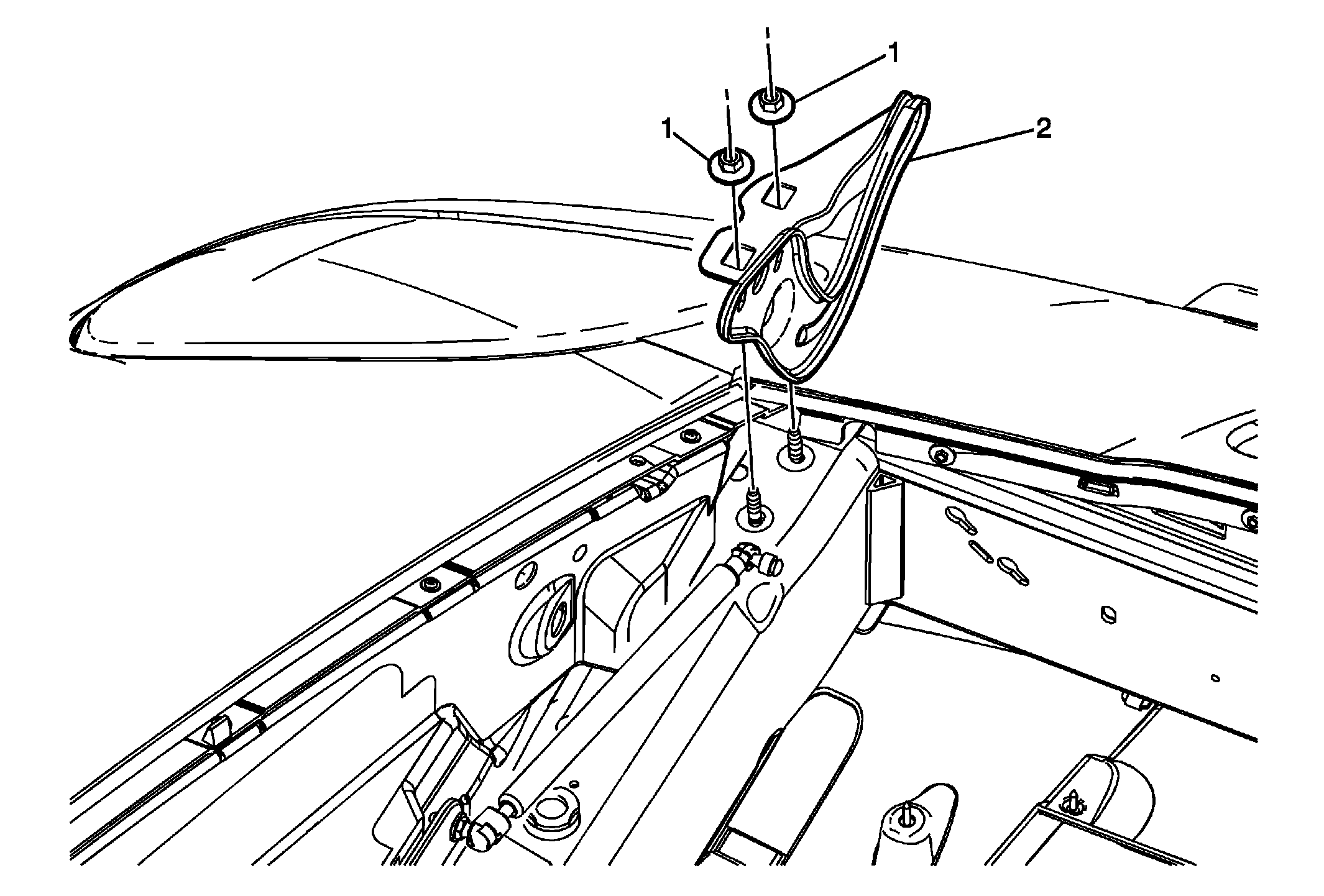

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the hood assembly. Refer to Hood Replacement . |
|
| 1 | Hood Hinge Nuts (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 2 | Hood Hinge TIP: Use a grease pencil to mark the position of the hinge for reinstallation. |
