Front Floor Console Side Trim Front Panel Replacement - Left Side (Cadillac)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

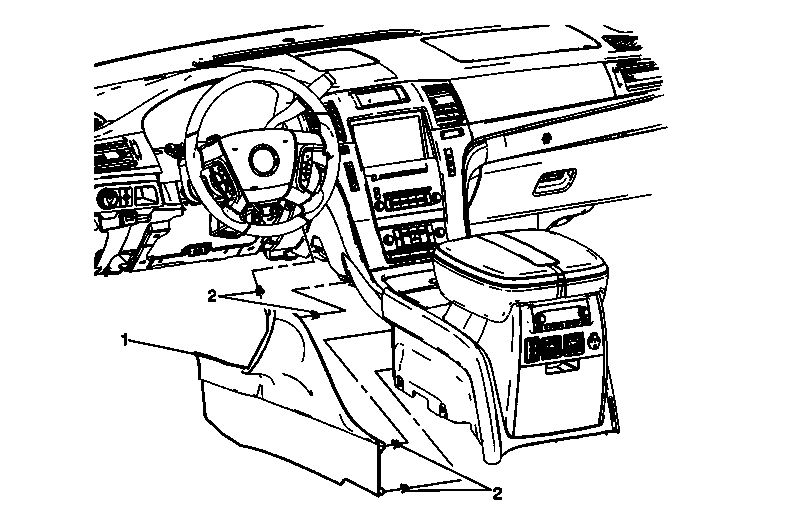

Fig 1: Front Floor Console Side Trim Front Panel Components (Left Side)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the knee bolster assembly. Refer to Knee Bolster Replacement (Except Cadillac) , Knee Bolster Replacement (Cadillac) .
1	Front Floor Console Side Trim Front Panel Procedure Use a flat bladed plastic trim tool in order to release the retainer clips securing the trim panel to the front floor console assembly.
2	Retainer Clips (Qty: 4)
