Rear Upper Garnish Molding Replacement (Avalanche/Escalade EXT)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

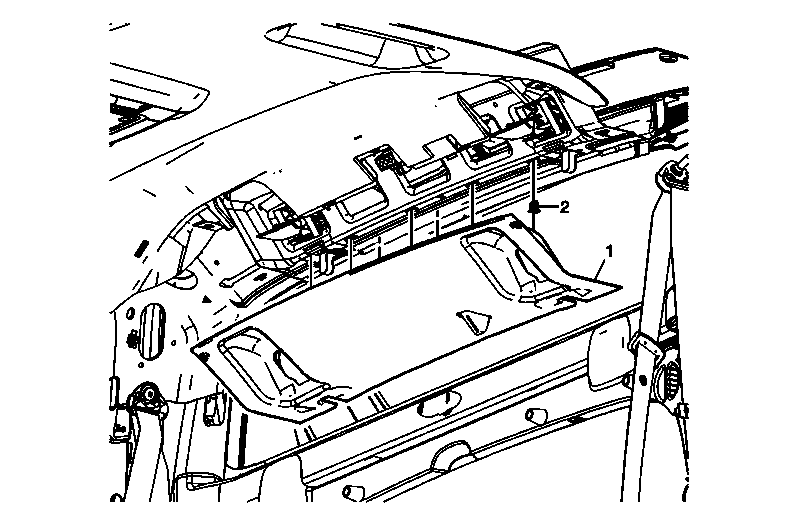

Fig 1: Rear Upper Garnish Molding (Avalanche/Escalade EXT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove rear window from the vehicle. Remove body lock pillar garnish molding. Refer to Body Lock Pillar Garnish Molding Replacement (Standard Wheelbase) , Body Lock Pillar Garnish Molding Replacement (Avalanche/Escalade EXT) , Body Lock Pillar Garnish Molding Replacement (Extended Wheelbase) .
1	Headliner Trim Panel Molding Retainer (Qty: 7)
2	Headliner Trim Panel Molding Assembly TIP: Disconnect electrical connector.

Callout

Component Name

Preliminary Procedures

Remove rear window from the vehicle.
Remove body lock pillar garnish molding. Refer to Body Lock Pillar Garnish Molding Replacement (Standard Wheelbase) , Body Lock Pillar Garnish Molding Replacement (Avalanche/Escalade EXT) , Body Lock Pillar Garnish Molding Replacement (Extended Wheelbase) .

Headliner Trim Panel Molding Retainer (Qty: 7)

Headliner Trim Panel Molding Assembly
TIP: Disconnect electrical connector.
