Body Lock Pillar Garnish Molding Replacement (Extended Wheelbase)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

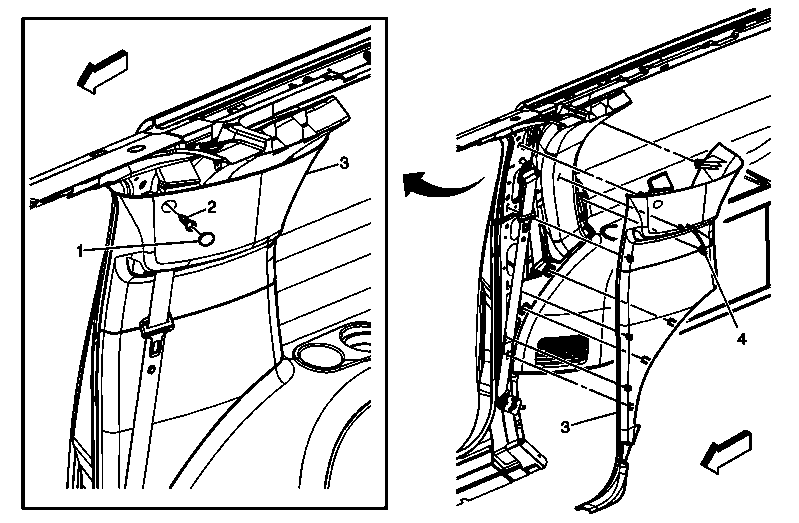

Fig 1: Body Lock Pillar Garnish Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disable roof rail SIR system. Refer to SIR Disabling and Enabling . Remove rear side door sill plate. Refer to Rear Side Door Sill Trim Plate Replacement (Extended Wheelbase) , Rear Side Door Sill Trim Plate Replacement (Standard Wheelbase) .
1	Body Lock Pillar Garnish Molding Plug
2	Body Lock Pillar Garnish Molding Screw CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Body Lock Pillar Garnish Molding Assembly Tighten 35 N.m (25 lb ft) Remove seat belt D-ring from the adjuster assembly. Route seat belt through garnish molding.
4	Body Lock Pillar Garnish Molding Clip (Qty: 10)
