Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/E61)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

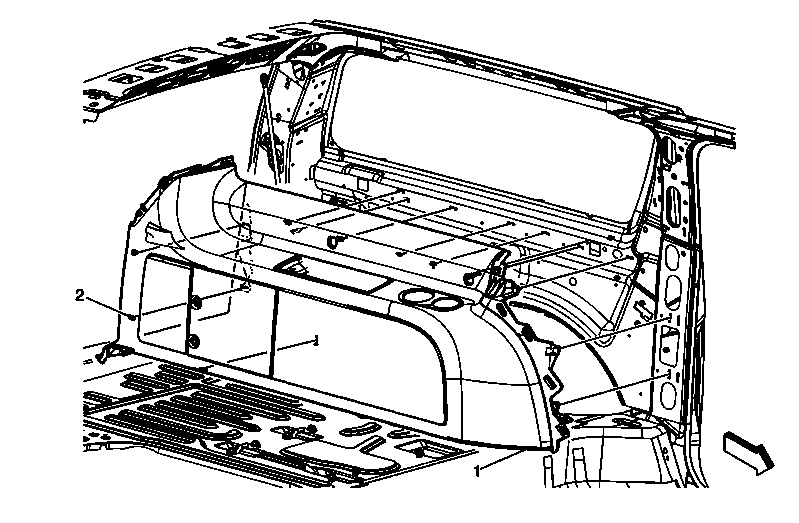

Fig 1: Rear Quarter Trim Panel - Left Side (Extended Wheelbase w/E61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disable the roof rail SIR system. Refer to SIR Disabling and Enabling . Remove the third row seats. Refer to 3rd Row Seat Replacement (Suburban/Yukon XL) , 3rd Row Seat Replacement (Tahoe/Yukon/Escalade) . Remove the rear opening garnish molding. Refer to Rear Door Upper Garnish Molding Replacement . Remove the back rear corner upper garnish molding. Refer to Body Rear Corner Garnish Molding Replacement - Left Side (With E61) , Body Rear Corner Garnish Molding Replacement - Left Side (Without E61) . Remove the rear side door sill plate. Refer to Rear Side Door Sill Trim Plate Replacement (Extended Wheelbase) , Rear Side Door Sill Trim Plate Replacement (Standard Wheelbase) . Remove the body side lock pillar garnish molding. Refer to Body Lock Pillar Garnish Molding Replacement (Standard Wheelbase) , Body Lock Pillar Garnish Molding Replacement (Avalanche/Escalade EXT) , Body Lock Pillar Garnish Molding Replacement (Extended Wheelbase) .
1	Body Side Trim Panel Assembly TIP: Align the locators to the body side inner panel prior to engaging the retainers.
2	Body Side Trim Panel Retainer (Qty: 10)

Callout

Component Name

Preliminary Procedures

Disable the roof rail SIR system. Refer to SIR Disabling and Enabling .
Remove the third row seats. Refer to 3rd Row Seat Replacement (Suburban/Yukon XL) , 3rd Row Seat Replacement (Tahoe/Yukon/Escalade) .
Remove the rear opening garnish molding. Refer to Rear Door Upper Garnish Molding Replacement .
Remove the back rear corner upper garnish molding. Refer to Body Rear Corner Garnish Molding Replacement - Left Side (With E61) , Body Rear Corner Garnish Molding Replacement - Left Side (Without E61) .
Remove the rear side door sill plate. Refer to Rear Side Door Sill Trim Plate Replacement (Extended Wheelbase) , Rear Side Door Sill Trim Plate Replacement (Standard Wheelbase) .
Remove the body side lock pillar garnish molding. Refer to Body Lock Pillar Garnish Molding Replacement (Standard Wheelbase) , Body Lock Pillar Garnish Molding Replacement (Avalanche/Escalade EXT) , Body Lock Pillar Garnish Molding Replacement (Extended Wheelbase) .

Body Side Trim Panel Assembly
TIP: Align the locators to the body side inner panel prior to engaging the retainers.

Body Side Trim Panel Retainer (Qty: 10)
