Instrument Panel Lower Center Trim Replacement

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

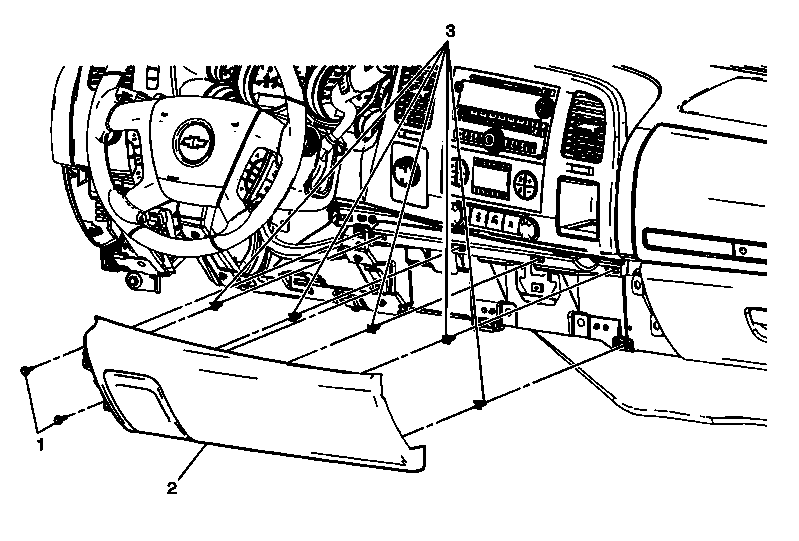

Fig 1: View Of Instrument Panel Lower Center Trim Panel Assembly, Screws & Retainer Clips

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the knee bolster assembly. Refer to Knee Bolster Replacement (without RPO SLT) or Knee Bolster Replacement (with RPO SLT) .
1	Instrument Panel Lower Center Trim Panel Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Lower Center Trim Panel Assembly
3	Retainer Clip (Qty: 6)
