Knee Bolster Replacement (with RPO SLT)

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

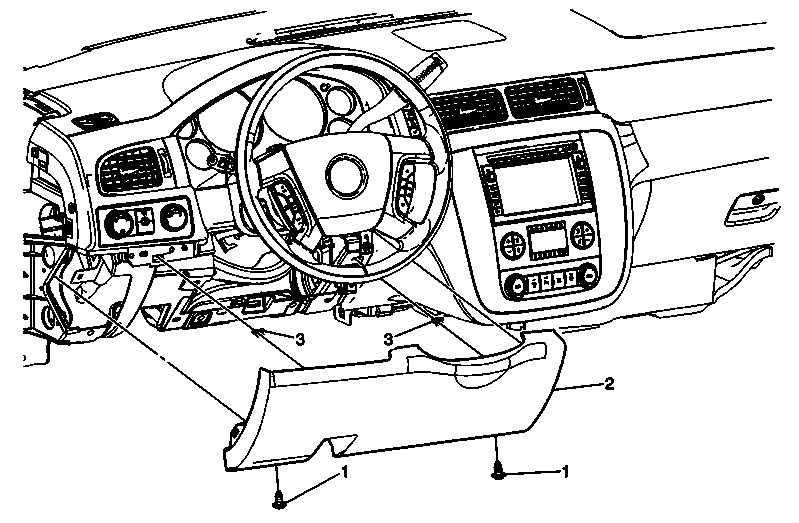

Fig 1: View Of Knee Bolster Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the left instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement (without RPO SLT) or Instrument Panel Outer Trim Cover Replacement (with RPO SLT) . Remove the park brake release handle. Refer to Parking Brake Release Handle Assembly Replacement .
1	Knee Bolster Assembly Screws (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Knee Bolster Assembly
3	Retainer Clips (Qty: 4)
