Intake Manifold Crossover Installation

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

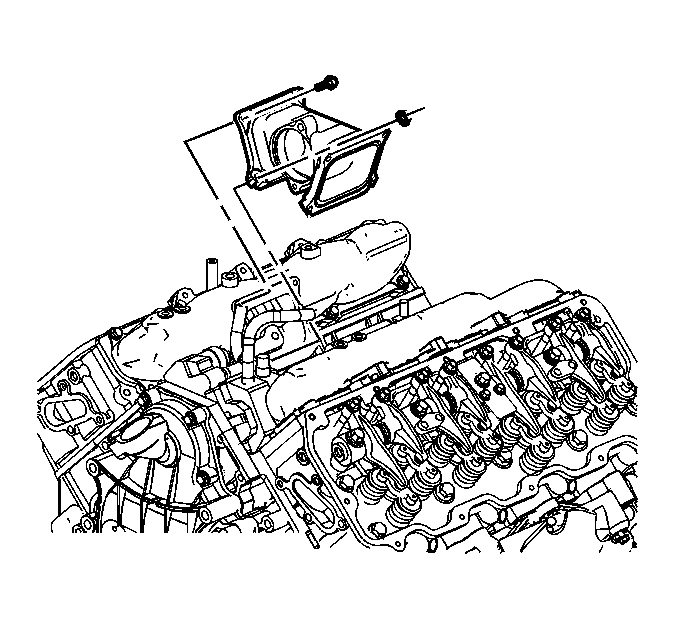

    Fig 1: View Of Intake Manifold Crossover
    GM1335931Courtesy of GENERAL MOTORS CORP.
  1. Install the intake manifold crossover gaskets.
  2. Install the intake manifold crossover.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the intake manifold crossover nuts and bolts in sequence. Tighten the intake manifold crossover nuts and bolts to 10 N.m (89 lb in).
