Fuel Injector Installation

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

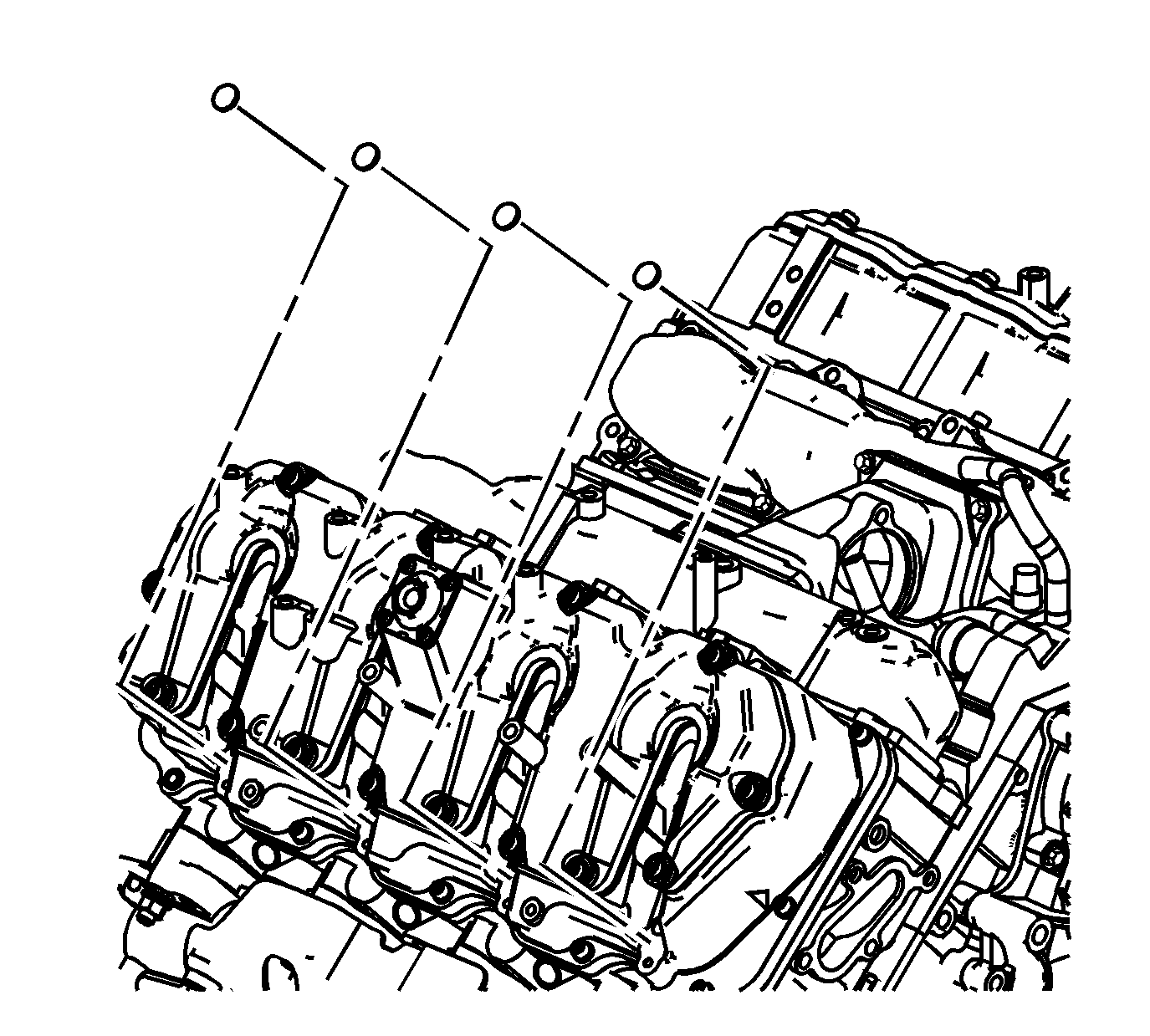

Fig 1: Identifying Fuel Injector Copper Washers

Courtesy of GENERAL MOTORS CORP.

Install a new O-ring onto the fuel injector.
Lubricate the O-ring with engine oil.
Install a new copper washer into the fuel injector bore in the cylinder head.
Install the fuel injector right bracket pin.

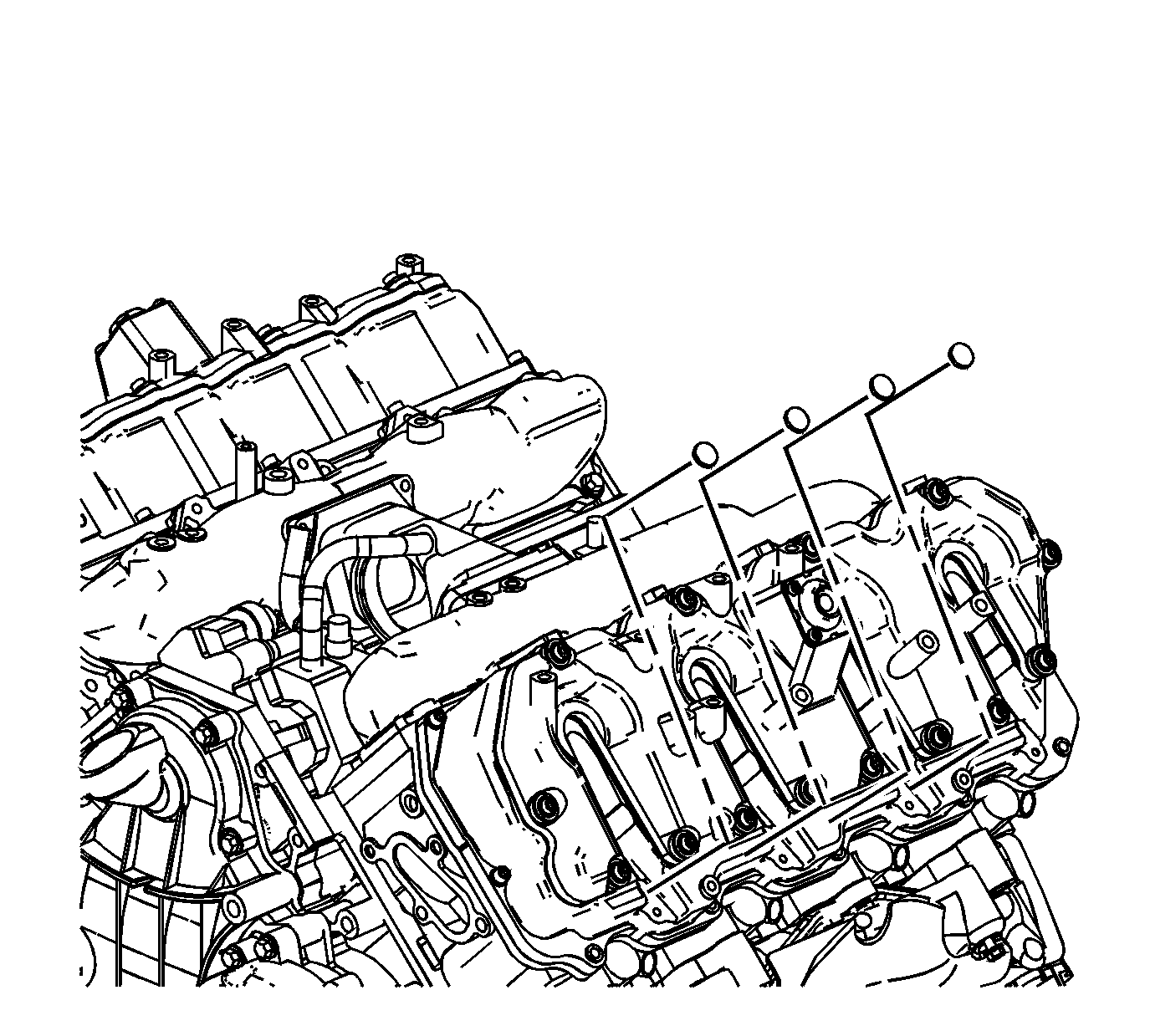

Fig 2: View Of Left Injector Bracket Pins

Courtesy of GENERAL MOTORS CORP.

Install the fuel injector left bracket pin.

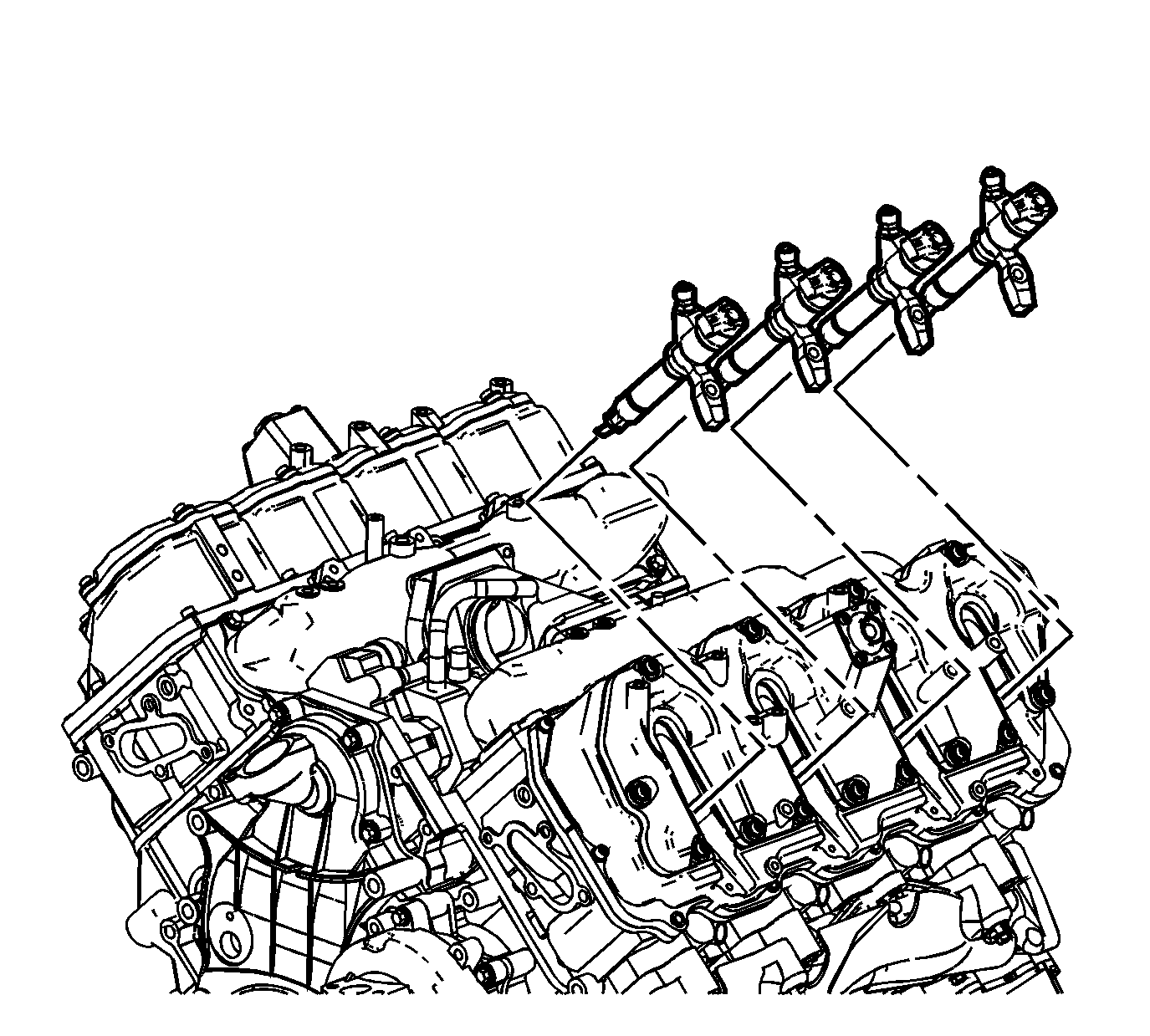

Fig 3: View Of Right Fuel Injectors W/Brackets

Courtesy of GENERAL MOTORS CORP.

NOTE: The unique fuel injector flow rates are programmed into the ECM according to cylinder location. Mark the fuel injectors for correct re-installation to the same cylinders. Failure to do so may result in a poor drive-ability condition.

Install the right fuel injector with fuel injector bracket.

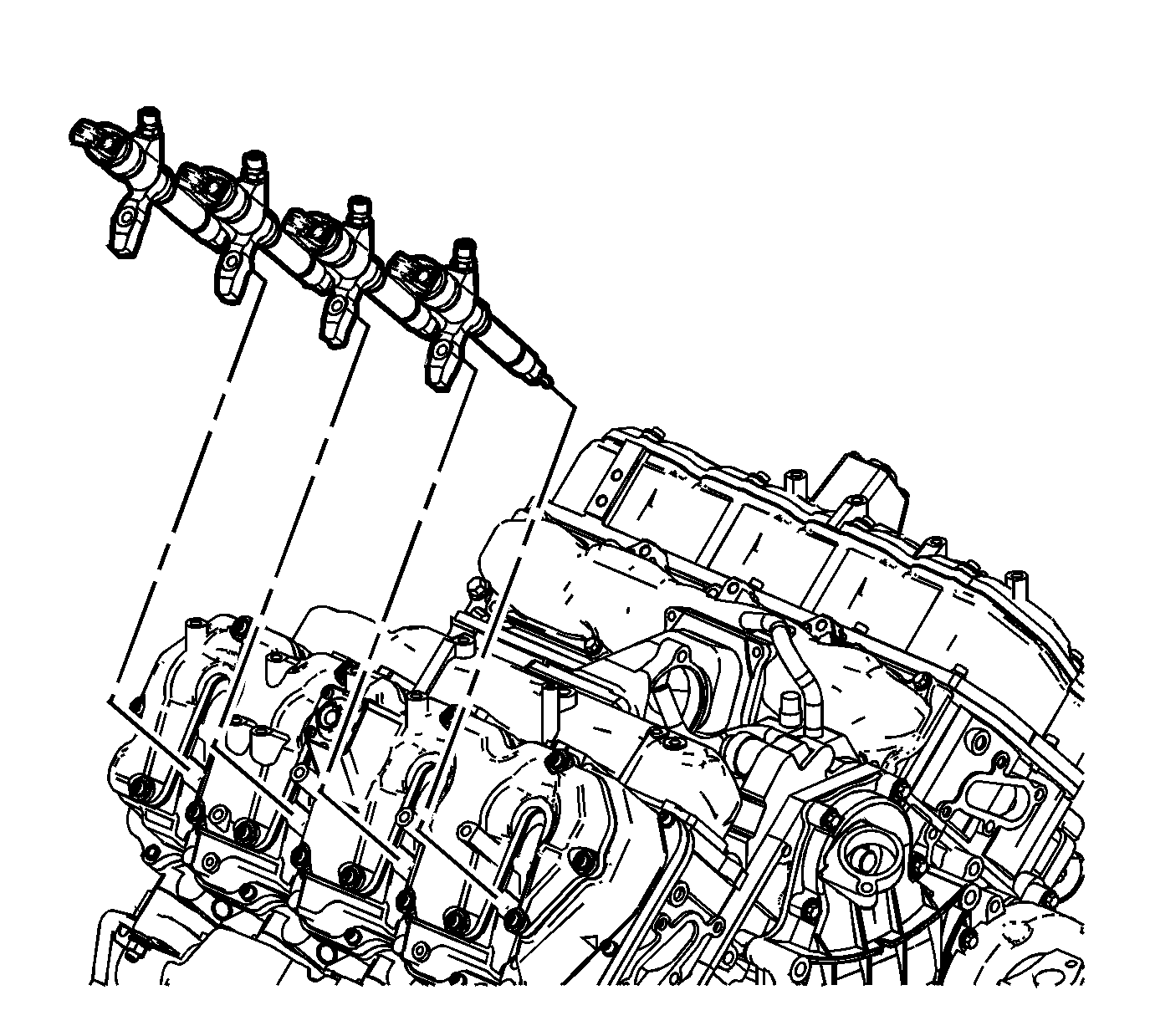

Fig 4: View Of Left Fuel Injectors W/Brackets

Courtesy of GENERAL MOTORS CORP.

Install the left fuel injector with fuel injector bracket.

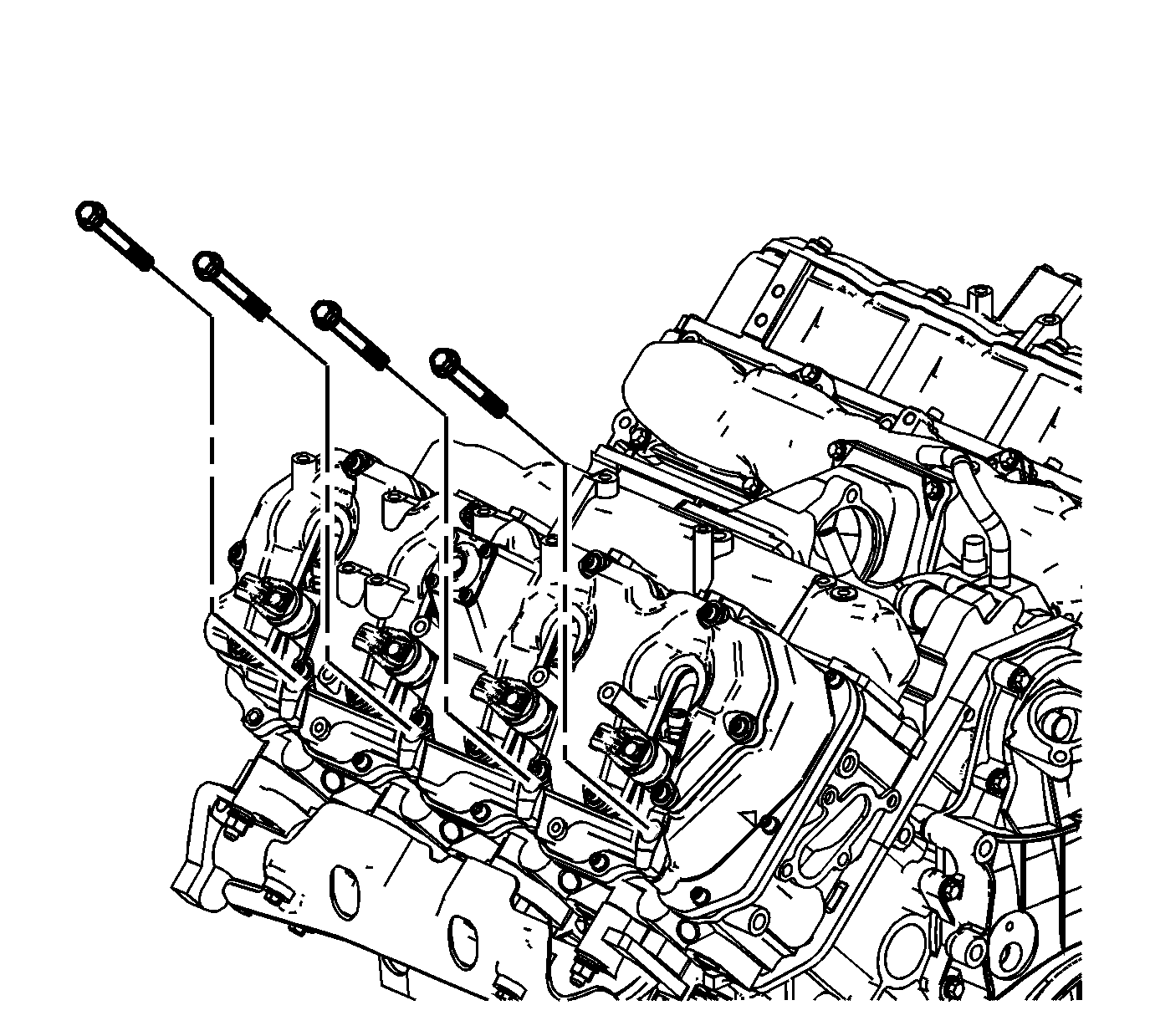

Fig 5: View Of Right Fuel Injector Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the right fuel injector bracket bolts and tighten to 30 N.m (22 lb ft).

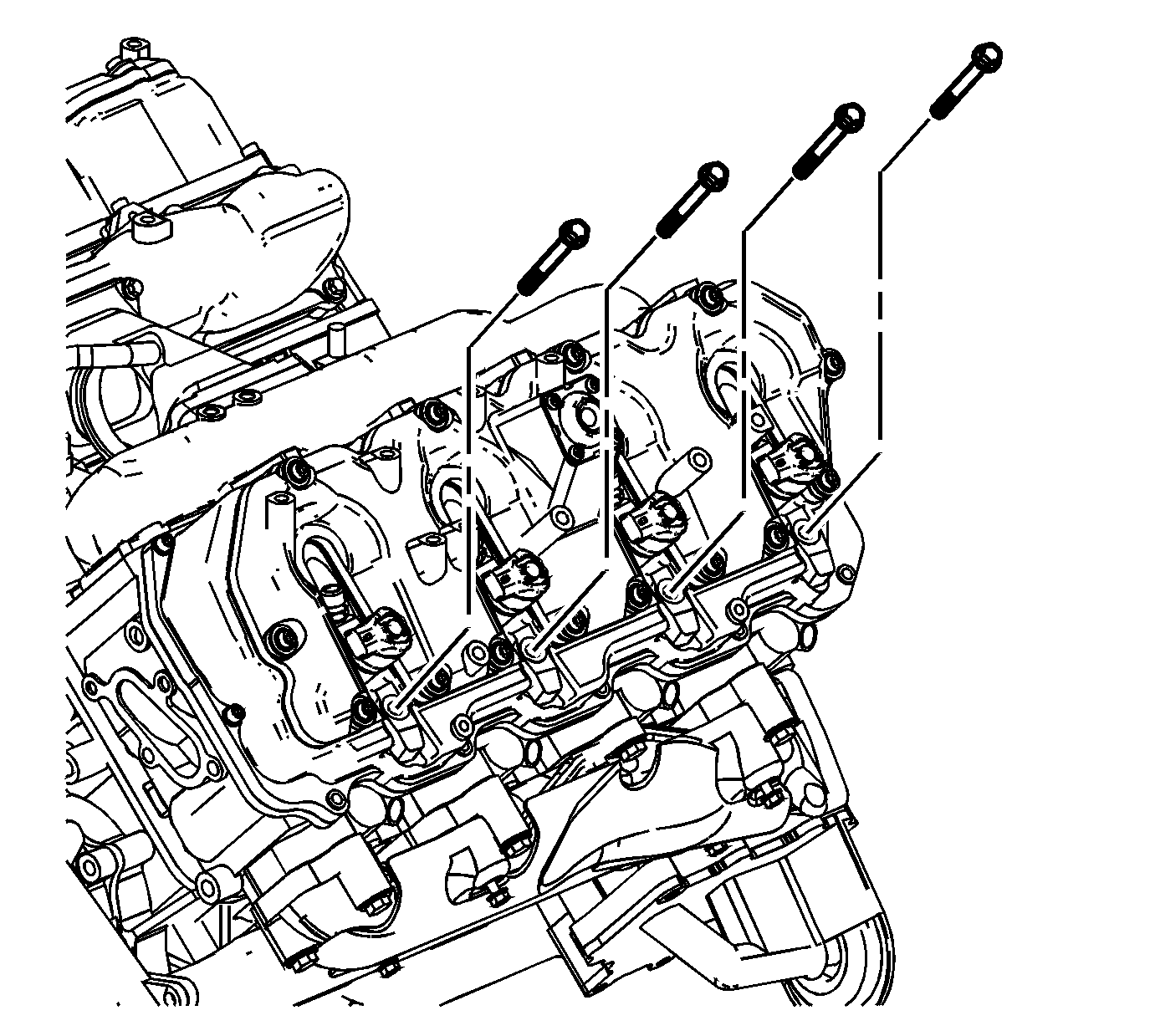

Fig 6: View Of Left Fuel Injector Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

Install the left fuel injector bracket bolts and tighten to 30 N.m (22 lb ft).
