Exhaust Pipe Installation - Left Side

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

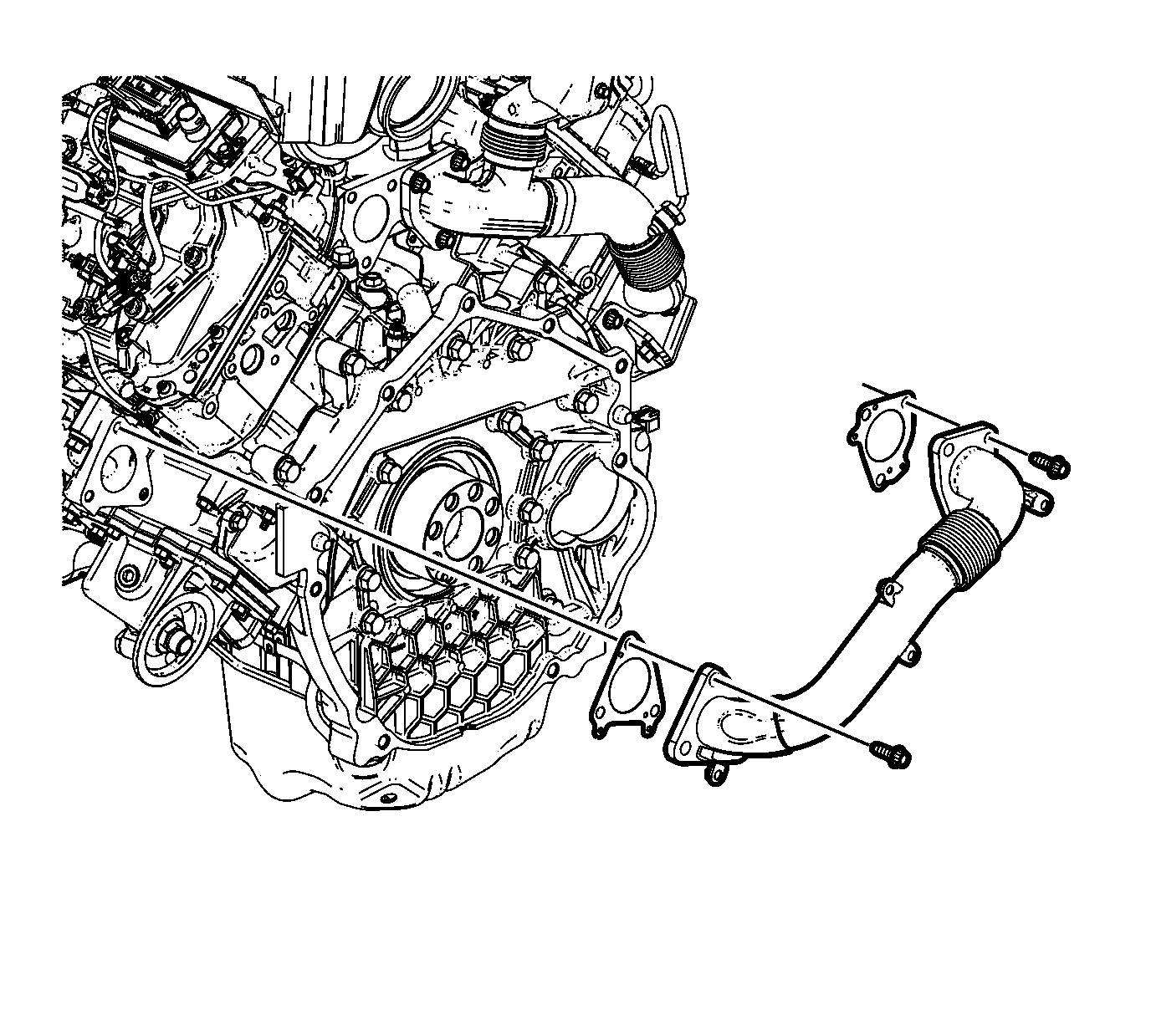

Fig 1: Exhaust Pipe To Turbocharger

Courtesy of GENERAL MOTORS CORP.

NOTE: Position the exhaust pipe gaskets with the tabs as shown. Failure to do so will cause improper alignment of the gaskets and result in exhaust leaks.

Install the exhaust pipe with gaskets.
Install the exhaust pipe to turbocharger bolts.

Fig 2: Exhaust Pipe To Exhaust Manifold Bolt Tightening Sequence - Left Side

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the exhaust pipe to exhaust manifold bolts. Tighten the exhaust pipe bolts to 53 N.m (39 lb ft) in the proper sequence.

Fig 3: View Of Left Exhaust Pipe Heat Shield & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the exhaust pipe heat shield.
Install the exhaust pipe heat shield bolts and tighten to 10 N.m (89 lb in).
