Engine Removal from Stand

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

EN 49397: Engine Lift Bracket Set

For equivalent regional tools, refer to Special Tools .

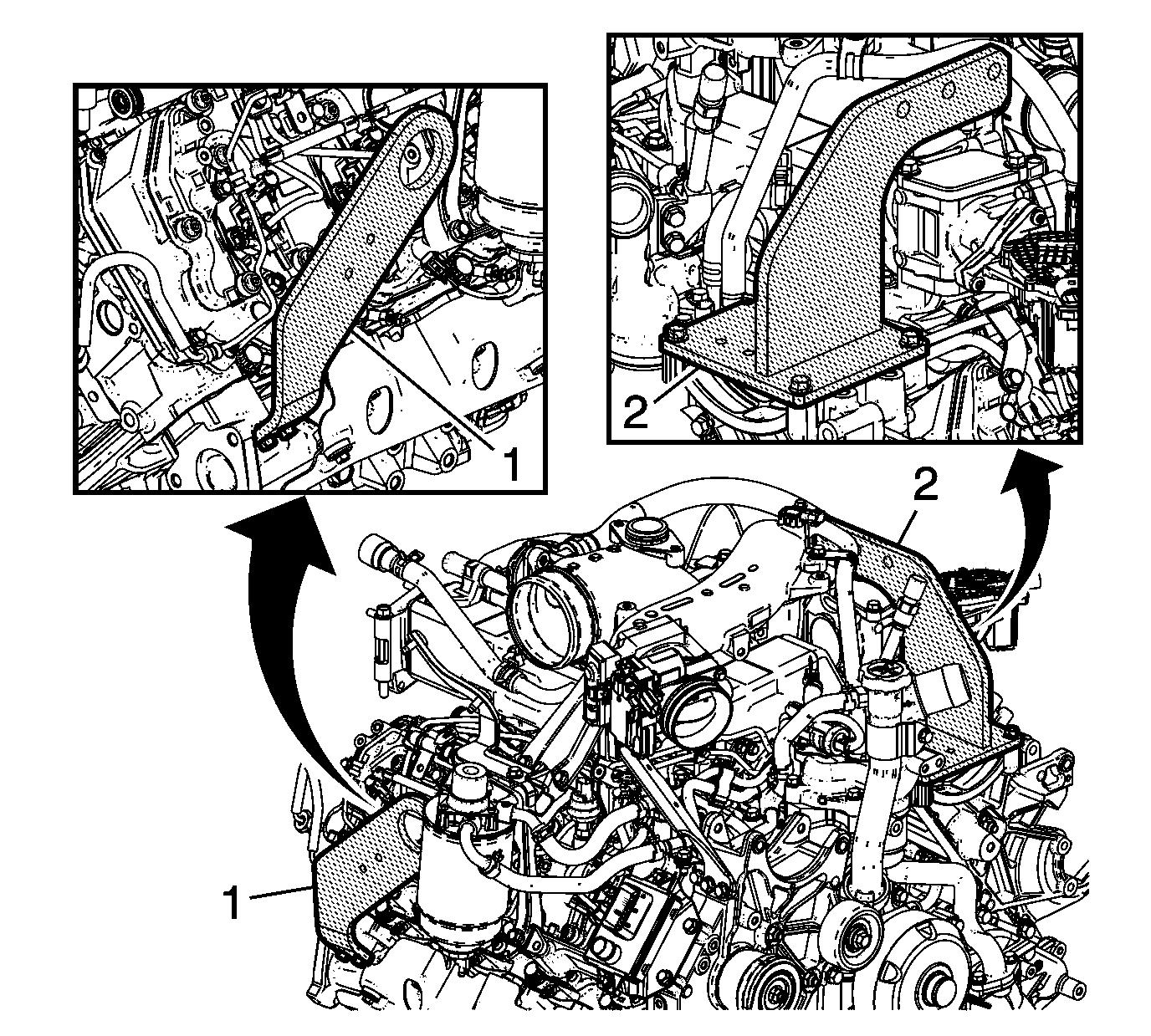

Fig 1: Lift Brackets

Courtesy of GENERAL MOTORS CORP.

Install EN 49397: lift bracket (1) to the right side exhaust manifold.
Install EN 49397: lift bracket (2) to the power steering pump mounting bracket.

Fig 2: Mounting Engine Block To Suitable Engine Stand

Courtesy of GENERAL MOTORS CORP.

Lift the engine and the engine stand with a suitable hoist.
Remove the engine stand from the engine adapter.
Lower the engine to the floor. Support the engine with blocks.
Remove the engine adapter.
